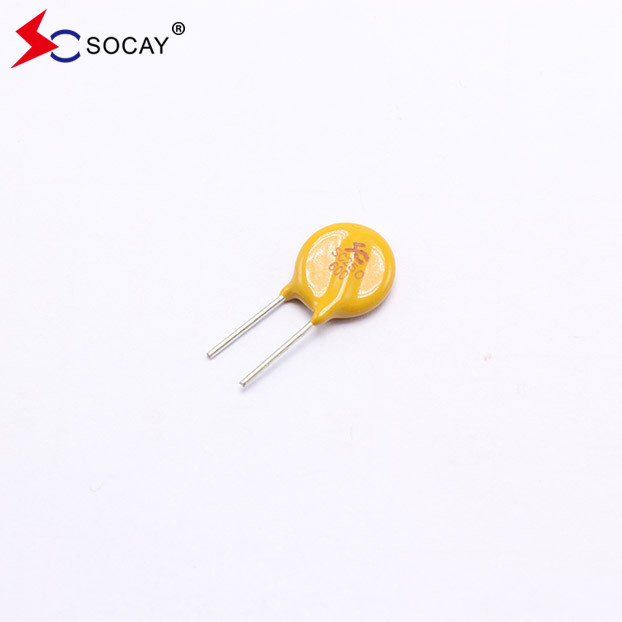

Original Factory SOCAY Resettable Polymer PPTC SC250-600CZ0D In Stock
Resettable Polymer PPTC DATASHEET: SC250-600CZ0D_v98.1.pdf
Electrical Parameters:
| Part Number | I hold (A) | I trip (A) | V max (Vdc) | I max (A) | Pdtyp (W) | Maximum Time To Trip | Resistance |
| Resettable Polymer PPTC | | | | | | Current (A) | Time (S) | R min (Ω) | R max (Ω) | R1max (Ω) |
| SC250-600CZ0D | 0.60 | 1.20 | 220 | 3.0 | 4.0 | 3.0 | 10.0 | 0.50 | 0.75 | 1.13 |
| |
About PPTCs
PTC (Polymer Positive Temperature Coefficient) devices can help protect against overcurrent surges and overtemperature failures. Thermistor-type devices limit the flow of dangerously large currents during fault conditions. However, it is different from traditional fuses that can only be used once and must be replaced. The PTC device that Jidentong has carefully crafted over many years can be reset after troubleshooting and disconnecting the power supply, thereby reducing component costs and service fees. PTC circuit protection devices are made of polymer PTC raw materials mixed with nano conductor particles. At normal temperatures, the material tightly binds the conductor into a crystalline structure, forming a low-impedance link. However, when a large current passes through or the ambient temperature rises, causing the device temperature to be higher than the operating temperature, the conductors in the polymer melt and become irregularly arranged, causing the volume to expand and cause the impedance to increase rapidly.
Typical applications of resettable fuses in electronic circuits:
1. Protection of battery charger
In the battery charger circuit, the unregulated DC output voltage of the power converter is modulated by the voltage stabilizing circuit and converted into an appropriate voltage to charge the battery. PPTC devices and voltage overload protection devices cooperate with each other to protect against the following faults:
*Excessive current. Excessive current may damage the power FET or battery pack;
*Reverse polarity. At this time, the diode is turned on and the PPTC device enters a high impedance state to limit the current;
*The voltage is too high. At this time, the voltage overload protection device works, and the PPTC device limits the current.
Resettable Polymer PPTC Features:
| u RoHS Compliant and Halogen-Free u Radial leaded Devices u Cured,flame retardant epoxy polymer insulating material meets UL94V-0 requirements u PPTC Resettable Fuse Operation Current: 0.90A, Maximum Voltage: 60Vdc, Operating Temperature: -40℃ to +85℃ |
Resettable Polymer PPTC Applications:
| u USB hubs, ports and peripherals u Power ports u IEEE1394 ports u Motor protection u Computers and peripherals u General electronics |
Temperature Rerating Chart – I hold (A):
| Ambient Operation Temperature | -40℃ | -20℃ | 0℃ | 23℃ | 30℃ | 40℃ | 50℃ | 60℃ | 70℃ | 85℃ |
| Percentage Reduction | 145% | 130% | 120% | 100% | 95% | 88% | 80% | 71% | 66% | 56% |
Test Procedures and Requirement:
| Test | Test Conditions | Accept/Reject Criteria |
| Resistance | In still air @25±2°C | Rmin≤R≤Rmax |
| Hold Current | 60 min, at Ihold, In still air @25±2°C | No trip |
| Time to Trip | Specified current, Vmax, @25±2°C | T≤Maximum Time To Trip |
| Trip Cycle Life | Vmax, Imax,100 cycles | No arcing or burning |
| Trip Endurance | Vmax,24hours | No arcing or burning |
Resettable Polymer PPTC Physical Specifications:
| Lead Material | 0.03-1.85A Tin-plated Copper clad steel 2.50-5.00A Tin-plated Copper |
| Soldering Characteristics | Solder ability per MIL-STD-202, Method 208E |
| Insulating Material | Cured, flame retardant epoxy polymer meets UL 94V-0 requirements. |
| Device Labeling | Marked with ‘SC’, voltage, current rating |
Resettable Polymer PPTC Packaging Quantity:
| Part Number | Quantity (pcs/reel) |
| SC250-600CZ0D | 500 |
