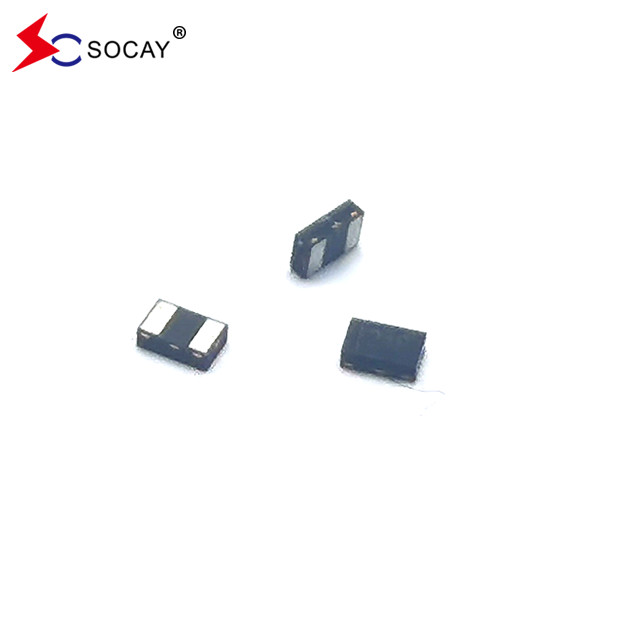

SE03N6L01GZ ESD Array Low Capacitance ESD Protection Operating Voltage 3.3V

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

SE03N6L01GZ ESD Array Low Capacitance ESD Protection Operating Voltage 3.3V

Brand Name : SOCAY

Model Number : SE03N6L01GZ

Certification : REACH RoHS ISO

Place of Origin : Shenzhen Guangdong China

MOQ : 10000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Component Name : ESD Arrays

Component Package : DFN1006-2L

Vrwm (Max.) : 3.3V

Vbr (Min.) : 5.0V

Vbr (Max.) : 6.5V

It : 1mA

Ir (Max.) : 1.0μA

Vc (Typ.) (Ipp=1A) : 9.0V

Vc (Typ.) (Ipp=5A) : 19.0V

Cj (Typ.) : 0.4pF

Contact Now

Low Capacitance ESD Arrays for ESD Protection SE03N6L01GZ Operating Voltage 3.3V


ESD Arrays DATASHEET: SE03N6L01GZ_v2204.1.pdf


ESD Arrays Features:

  • Operating Voltage: 3.3V
  • Low Leakage: nA Level
  • Low Capacitance
  • Extremely-Low Clamping Voltage
  • RoHS compliant

ESD Arrays Applications:

  • Cellular Handsets & Accessories
  • Digital Visual Interface (DVI)
  • RF Circuits
  • Display Port
  • USB Ports
  • MDDI Ports
  • PCI Express

ESD Arrays Mechanical Characteristics:

  • DFN1006 (1.0x0.6x0.5mm) Package
  • Weight 0.5 Milligrams (Approximate)
  • Quantity Per Reel : 10,000pcs
  • Reel Size : 7 inch
  • Lead Finish : Lead Free

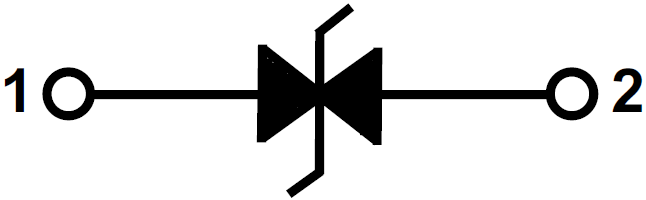

ESD Arrays Functional Diagram:

SE03N6L01GZ ESD Array Low Capacitance ESD Protection Operating Voltage 3.3V

ESD Arrays Absolute Maximum Ratings (TA=25℃ unless otherwise specified):

Symbol Parameter Value Units
TL Lead Soldering Temperature 260 (10sec) ºC
TOP Operating Temperature Range -55 to +125 ℃
TSTG Storage Temperature Range -55 to +150 ℃
VESD ESD per IEC61000-4-2 (Air) ±25 kV
ESD per IEC61000-4-2 (Contact) ±25

Electrical Characteristics (TA = 25℃ unless otherwise specified):

Parameter Symbol Conditions Min. Typ. Max. Units
Reverse Working Voltage VRWM -- -- -- 3.3 V
Breakdown Voltage VBR IT = 1mA 5.0 -- 6.5 V
Leakage Current IR VRWM = 3.3V -- -- 1.0 μA
Clamping Voltage VC IPP = 1A ,tP = 8/20μs -- 9.0 -- V
Clamping Voltage VC IPP = 5A , tP = 8/20μs -- 19.0 -- V
Junction Capacitance CJ VR = 0V, f = 1MHz -- 0.4 -- pF

ESD Arrays Characteristic Curves:

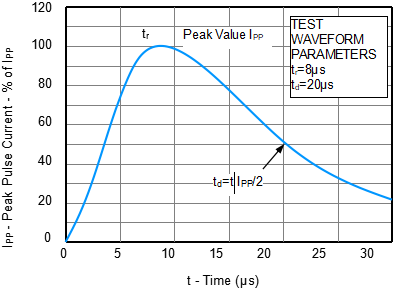

Fig1. 8/20 us Pulse Waveform

SE03N6L01GZ ESD Array Low Capacitance ESD Protection Operating Voltage 3.3V

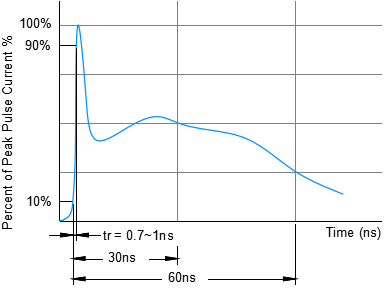

Fig2. ESD Pulse Waveform (according to IEC 61000-4-2)

SE03N6L01GZ ESD Array Low Capacitance ESD Protection Operating Voltage 3.3V

DFN1006-2L Package Outline & Dimensions:

Symbol Millimeters Inches
Min. Max. Min. Max.
A 0.450 0.550 0.018 0.022
A1 0.010 0.070 0.000 0.003
D 0.950 1.050 0.037 0.041
E 0.550 0.650 0.022 0.026
D1 0.450 REF 0.018 REF
E1 0.400 REF 0.016 REF
b 0.275 0.325 0.011 0.013
e 0.675 0.725 0.027 0.029
L 0.275 0.325 0.011 0.013
L1 0.010 REF 0.000 REF

SE03N6L01GZ ESD Array Low Capacitance ESD Protection Operating Voltage 3.3V
