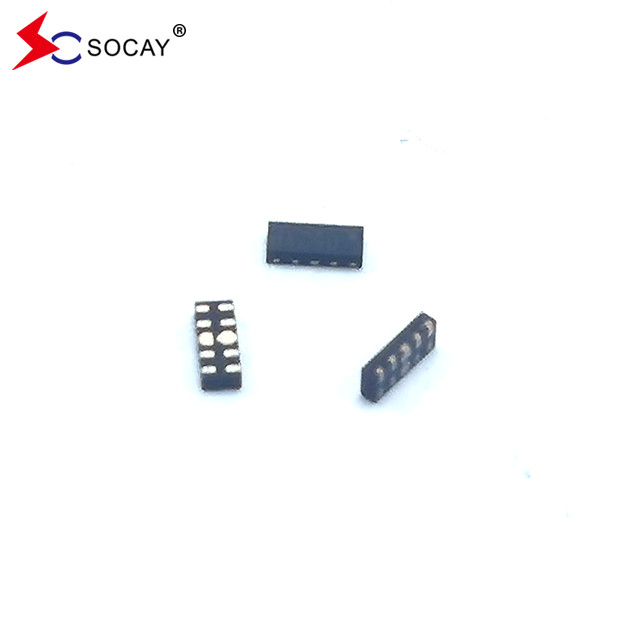

DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection

Name: DFN251010L ESD Array SE05NRD34GU Working Voltage 50V For ESD Protection
Brand: SOCAY
Price: 1 USD

DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection Manufactures

Brand Name : SOCAY

Model Number : SE05NRD34GU

Certification : REACH RoHS ISO

Place of Origin : Shenzhen Guangdong China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Component Name : ESD Arrays

Component Package : DFN2510-10L

Vrwm (Max.) : 5.0V

Vbr (Min.) : 6.0V

Ir (Max.) : 1.0μA

It : 1mA

Vc (Typ.) (Ipp=1A) : 10V

Vc (Typ.) (Ipp=4A) : 13V

Cj (Typ.) Between I/O and GND : 0.6pF

Cj (Typ.) Between I/O and I/O : 0.4pF

Contact Now

DFN2510-10L ESD Arrays SE05NRD34GU Working Voltage 5.0V For ESD Protection

ESD Arrays DATASHEET: SE05NRD34GU_v2307.1.pdf

ESD Arrays Features:

Working voltage: 5.0V
Low capacitance: 0.60pF (Typical)
Low leakage current: 1.0μA @ V_RWM
Low clamping voltage
Response Time is < 1 ns

ESD Arrays Applications:

USB 3.0, USB 2.0
HDMI 1.3/1.4, Display Port 1.3, eSATA
Unified Display Interface (UDI)
Digital Visual Interface (DVI)
High Speed Serial Interfaces

ESD Arrays Mechanical Characteristics:

DFN2510-10L Package
Molding Compound Flammability Rating: UL 94V-0
Quantity Per Reel : 3,000pcs
Reel Size : 7 inch

ESD Arrays Functional Diagram:
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection

ESD Arrays Absolute Maximum Ratings (T_A=25℃ unless otherwise specified):

Symbol	Parameter	Value	Units
TLST	Lead Soldering Temperature	260 (10sec)	℃
TSTG	Storage Temperature Range	-55 to +150	℃
TOPT	Operating Temperature Range	-55 to +125	℃
VESD	ESD per IEC 61000-4-2(Air)	±20	KV
	ESD per IEC 61000-4-2 (Contact)	±15

I-V Curve Characteristics:
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection

Symbol	Parameter
IPP	Maximum Reverse Peak Pulse Current
VC	Clamping Voltage @ IPP
VRWM	Working Peak Reverse Voltage
IR	Maximum Reverse Leakage Current @ VRWM
VBR	Breakdown Voltage @ IT
IT	Test Current
IF	Forward Current
VF	Forward Voltage @ IF

Electrical Characteristics (TA = 25℃ unless otherwise specified):

Symbol	Test Condition	Minimum	Typical	Maximum	Units
VRWM	Any I/O pin to GND	--	--	5.0	V
IR	VRWM=5V, T=25℃ Any I/O pin to GND	--	--	1.0	μA
VBR	IT = 1mA Any I/O pin to GND	6.0	--	--	V
VC	IPP=1A, tp=8/20μs Any I/O pin to GND	--	10	--	V
VC	IPP=4A, tp=8/20μs Any I/O pin to GND	--	13	--	V
CJ	VR=0V, f=1MHz Between I/O and GND	--	0.60	--	pF
CJ	VR=0V, f=1MHz Between I/O and I/O	--	0.40	--	pF

ESD Arrays Application Information:
DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection

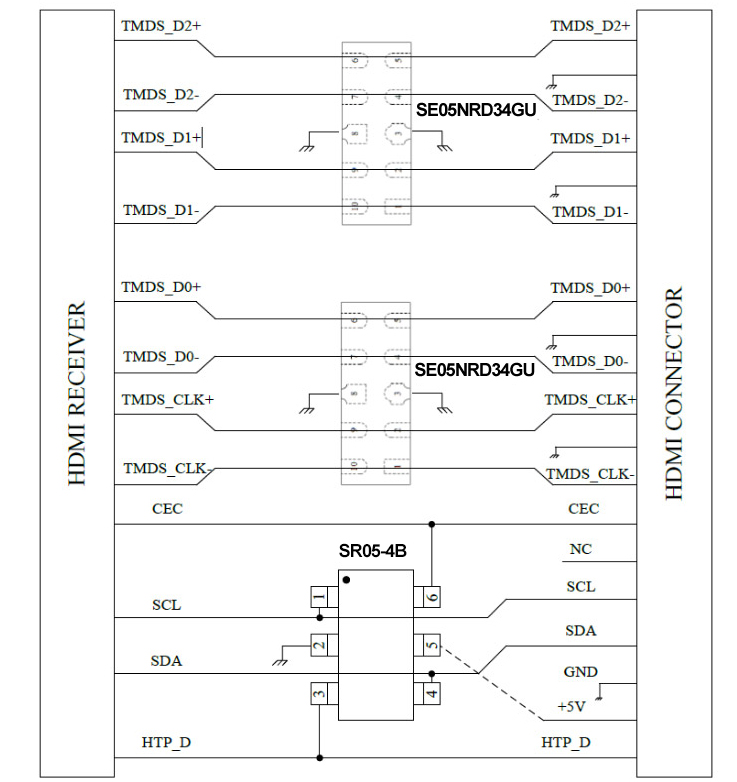

Layout Top View for HDMI Interface with SE05NRD34GU

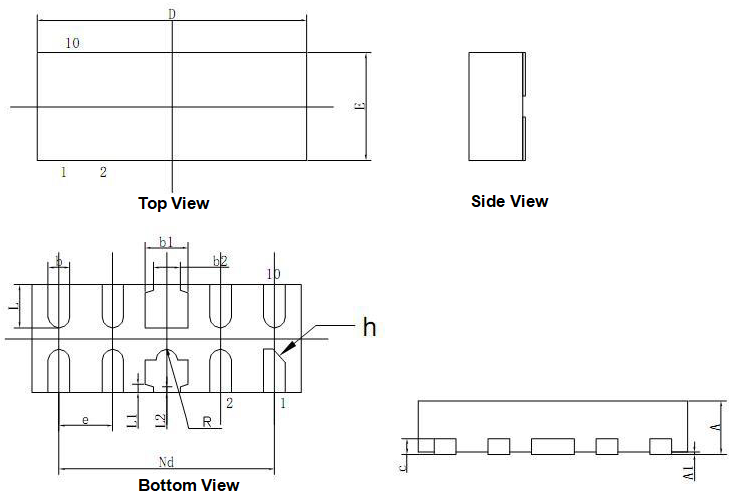

DFN2510-10L Package Outline & Dimensions:

Symbol	Dimensions In Millimeters
	Min.	Nom.	Max.
A	0.45	0.50	0.55
A1	--	0.02	0.05
b	0.15	0.20	0.25
b1	0.35	0.40	0.45
b2	0.20	0.25	0.30
c	0.10	0.15	0.20
D	2.45	2.50	2.55
e	0.50 BSC
Nd	2.00 BSC
E	0.95	1.00	1.05
L	0.35	0.40	0.45
L1	0.075 REF
L2	0.050 REF
h	0.08	0.12	0.15
R	0.05	0.10	0.15

DFN2510-10L ESD Array SE05NRD34GU Working Voltage 5.0V For ESD Protection
