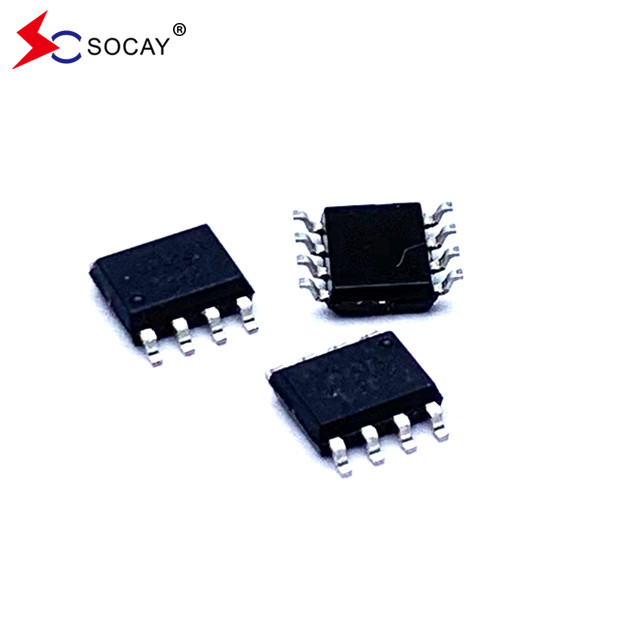

MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage

Brand Name : SOCAY

Model Number : SE02P8M14HA

Certification : REACH RoHS ISO

Place of Origin : Shenzhen Guangdong China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Component Name : ESD Arrays

Component Package : SE02P8M14HA

Vrwm (Max.) : 2.8V

Ir (Typ.) : 0.1V

Ir (Max.) : 1.0μA

Vt1 (Typ.) : 3.7V

Vh : 3.0~4.0V

Vc (Max.) (Ipp=2A) : 5.0V

Vc (Max.) (Ipp=10A) : 8.0V

Vc (Max.) (Ipp=24A) : 14.0V

Cj (Typ.) : 1.5pF

Cj (Max.) : 2.5pF

Contact Now

MSOP-8 Package ESD Arrays SE02P8M14HA Ultra-Low Capacitance 1.5pF @ 3.0V (Typical) ESD Surge Protection


ESD Arrays DATASHEET: SE02P8M14HA_v2207.1.pdf


ESD Arrays Features:

  • Package optimized for high-speed lines
  • Low capacitance: 1.5pF @ 3.0V (Typical)
  • Low leakage current: 0.1uA @ VRWM (Typical)

  • Low operating and clamping voltage


ESD Arrays Applications:

  • 10/100M Ethernet Ports
  • WAN/LAN Equipment
  • Desktops, Servers and Notebooks
  • Cellular Phones


ESD Arrays Mechanical Characteristics:

  • MSOP-8 package
  • Flammability Rating: UL 94V-0
  • Marking: Part number
  • Quantity Per Reel:3,000 pcs
  • Reel size: 13 inch


ESD Arrays Functional Diagram:

MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage


ESD Arrays Absolute Maximum Ratings (TA=25℃ unless otherwise specified):

Symbol Parameter Value Units
VESD

ESD per IEC 61000-4-2(Air)

ESD per IEC 61000-4-2 (Contact)

±30

±30

 KV
TOPT Operating Temperature -55to+125 ℃
TSTG Storage Temperature -55to+150 ℃
TLST Lead Soldering Temperature 260(10sec.) ℃

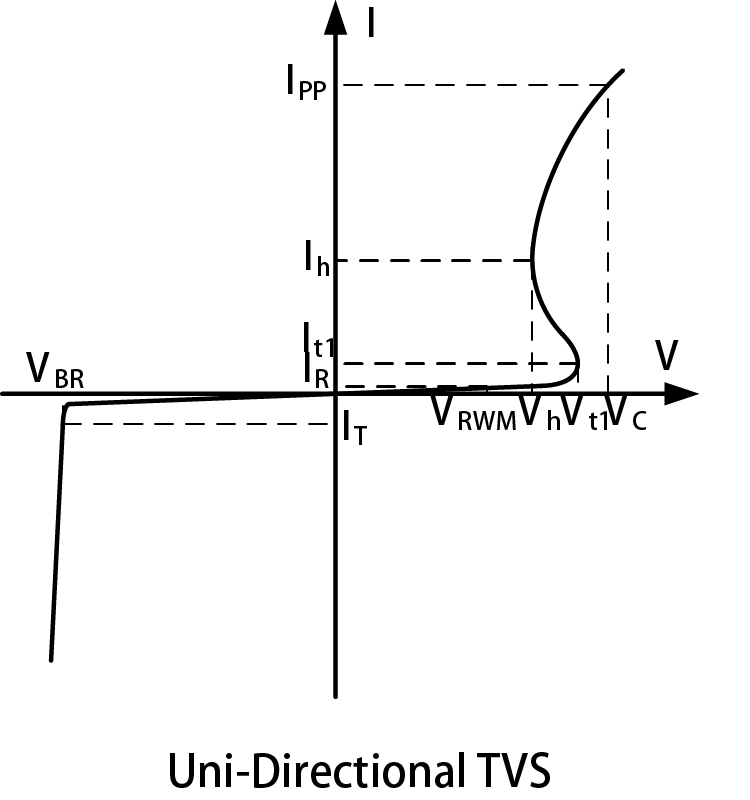

I-V Curve Characteristics:
MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage

Symbol Parameter
VRWM Nominal Reverse Working Voltage
IR Reverse Leakage Current @ VRWM
Vt1 Trigger Voltage
It1 Trigger Current @ Vt1
Vh Holding Voltage
Ih Holding Current @ Vh
VC Clamping Voltage @ IPP
IPP Maximum Peak Pulse Current
VBR Breakdown Voltage @ IT
CJ Parasitic Capacitance



Electrical Characteristics (TA = 25℃ unless otherwise specified):

Symbol Test Condition Minimum Typical Maximum Unit
VRWM -- -- -- 2.8 V
IR VRWM=2.8V, T=25℃ -- 0.1 1.0 μA
Vt1 It1=100μA 3.0 3.7 4.5 V
Vh Ih=10mA 3.0 -- 4.0 V
VC

IPP=2A, tp=8/20μs

(Each Line)

 -- -- 5.0 V
VC

IPP=10A, tp=8/20μs

(Each Line)

 -- -- 8.0 V
VC

IPP=24A, tp=8/20μs

(Each Line)

 -- -- 14.0 V
CJ

VR=3.0V, f=1MHz

(Each Line)

 -- 1.5 2.5 pF



ESD Arrays Characteristic Curves:
Fig1. 8/20μs Pulse Waveform Fig2. Clamping Voltage VC vs. Current IPP

MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage

Fig3. ESD Clamping of I/O to GND

(+8kV Contact per IEC 61000-4-2) Fig4. Normalized Capacitance vs. Voltage

MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage

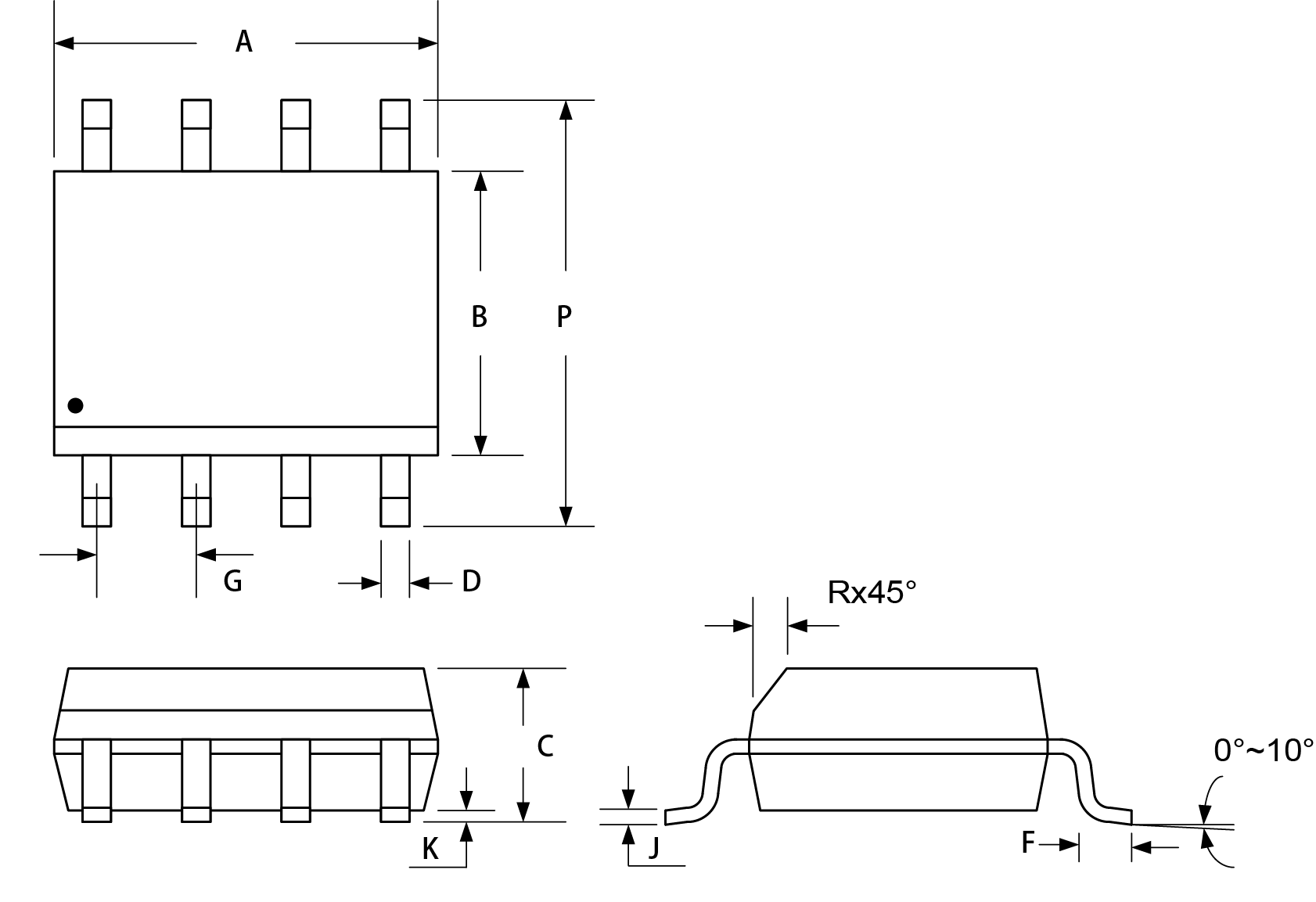

MSOP-8 Package Outline & Dimensions:

MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage

Symbol Millimeters Inches
Minimum Maximum Minimum Maximum
A 4.800 5.000 0.189 0.196
B 3.800 4.000 0.150 0.157
C 1.350 1.750 0.054 0.068
D 0.350 0.490 0.014 0.019
F 0.400 1.250 0.016 0.049
G 1.27 BSC. 0.05 BSC.
J 0.180 0.250 0.007 0.009
K 0.100 0.250 0.004 0.008
P 5.800 6.200 0.229 0.244
R 0.250 0.500 0.010 0.019



MSOP-8 Package ESD Array SE02P8M14HA ESD Surge Protection Low Clamping Voltage
