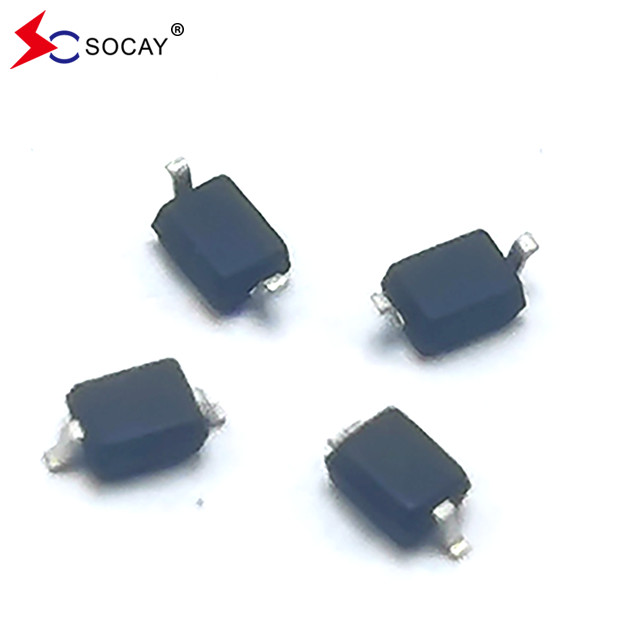

3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection

Brand Name : SOCAY

Model Number : SE03D3D01GW

Certification : REACH RoHS ISO

Place of Origin : Shenzhen Guangdong China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : ESD Arrays

Product Package : SOD-323

Vrwm (Max.) : 3.3V

Vbr (Min.) : 4.0V

Ir (Max.) : 0.1μA

It : 1mA

Vc (Max.) (Ipp=1A) : 7.8V

Vc (Max.) (Ipp=17A) : 19.5V

Cj (Typ.) : 0.8pF

Polarity : Bi-directional

Contact Now

3.3V ESD Protection Diode SE03D3D01GW Transient Voltage Suppressors For ESD Protection

ESD Protection Diode DATASHEET: SE03D3D01GW_v2204.1.pdf


ESD Protection Diode Features:

  • IEC 61000-4-2 (ESD) ±25kV (air),±25kV (contact)
  • IEC61000-4-4 (EFT) 40A (5/50ηs)
  • Protect one I/O line (bidirectional)
  • Low clamping voltage
  • Working voltage: 3.3V
  • Low leakage current

  • Response time is ＜1ns


ESD Protection Diode Applications:

  • Cell Phone Handsets and Accessories
  • Microprocessor based Equipment
  • Personal Digital Assistants (PDA's)
  • Notebooks, Desktops, and Servers
  • Portable Instrumentation
  • Peripherals

  • USB Interface


ESD Protection Diode Mechanical Characteristics:

  • SOD-323 Package
  • Flammability Rating: UL 94V-0
  • Packaging: 3000 PCS / Tape & Reel
  • High Temperature Soldering Guaranted: 260℃/10s
  • Reel Size: 7 inch
  • Material: Halogen Free


ESD Protection Diode Pin Configuration:

3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection



ESD Protection Diode Absolute Maximum Ratings (TA=25℃ unless otherwise specified):

ParameterSymbolValueUnits

ESD per IEC 61000−4−2 (Air)
ESD per IEC 61000−4−2 (Contact)

VESD

±25
±25

KV
Operating Temperature RangeTJ−55 ~ +150℃
Storage Temperature RangeTSTG−55 ~ +150℃
Lead Solering TemperatureTL260℃






ESD Protection Diode Electrical Characteristics (TA = 25℃ unless otherwise specified):

Part Number

VRWM

(V)

(Max)

VB

(V)

(Min)

IT

(mA)

VC @ 1A

(V)

(Max)

VC (V)

IR

(μA)

(Max)

CJ

(pF)

(Typ)

(Max)(@A)
SE03D3D01GW3.34.017.819.5170.10.8






Electrical Characteristics Curves:

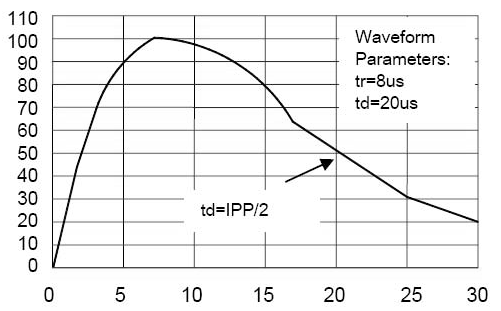

Fig1. Pulse Waveform
3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection

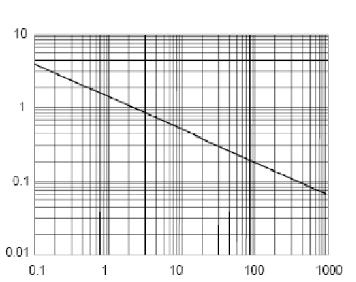

Fig2. Non-Repetitive Peak Pulse Power vs. Pulse Time
3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection

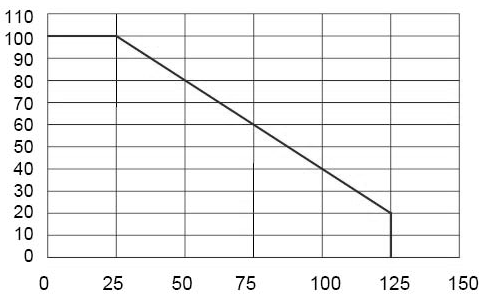

Fig3. Power Derating Curve
3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection

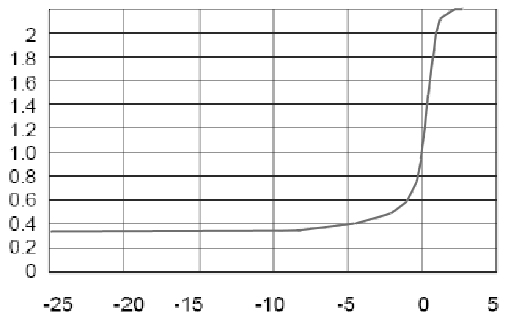

Fig4. Junction Capacitance vs. Reverse Voltage
3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection

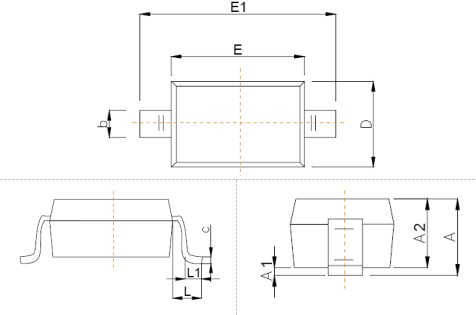

SOD-323 Package Outline & Dimensions:
3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection

SymbolDimensions in Millimeters
Min.Max.
A--1.00
A10.000.10
A20.800.90
b0.250.35
c0.080.15
D1.201.40
E1.601.80
E12.502.70
e1.802.04
L0.475 REF
L10.250.40
θ0°8°



3.3V ESD Array Transient Voltage Suppressors TVS Diode For ESD Protection
