DO-214AA SMB 8KV TSS Thyristor Surge Suppressors Low Capacitance 150pF P0080SD

Name: DO214AA SMB 8KV TSS Thyristor Surge Suppressors Low Capacitance 150pF P0080SD
Brand: SOCAY
Price: 1 USD

Brand Name : SOCAY

Model Number : P0080SD

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Packaging Details : AMMO packing bulk

Product Name : Thyristor Surge Suppressors (TSS)

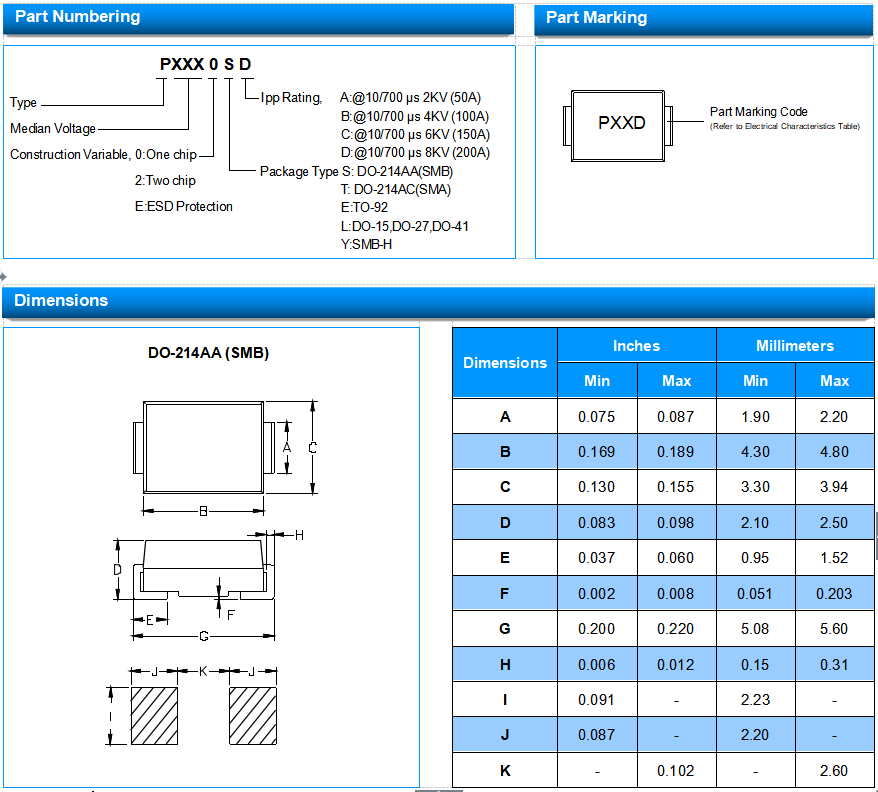

foot size : DO-214AA/SMB

VDRM (Min.) : 6V

IDRM : 5μA

Vs @100V/μS (Max.) : 25V

Is (Max.) : 800mA

Vt @It=2.2A (Max.) : 4V

It (Max.) : 2.2A

Ih (Min.) : 50mA

C0 @1MHz,2V Bias (Typ.) : 150pF

Contact Now

TSS P0080SD @10/700μS, 8KV Thyristor Surge Suppressors Low Capacitance 150pF

DATASHEET: PXXX0SD_v2310.1.pdf

Part Number	Marking	V_DRM @I_DRM=1μA	V_S ① @100V/μS	I_S	V_T @I_T=2.2A	I_T	I_H	C0 ② @1MHz, 2V bias
		V Min.	V Max.	mA max.	V Max.	A Max.	mA Min.	pF Typ.
P0080SD	P-8D	6	15	800	4	2.2	50	150
P0640SD	P06D	58	77	800	4	2.2	50	150
P0720SD	P07D	65	87	800	4	2.2	50	150
P0900SD	P09D	75	98	800	4	2.2	50	140
P1100SD	P11D	90	130	800	4	2.2	50	110
P1300SD	P13D	120	160	800	4	2.2	50	100
P1500SD	P15D	140	180	800	4	2.2	50	90
P1800SD	P18D	170	220	800	4	2.2	50	90
P2300SD	P23D	190	260	800	4	2.2	50	80
P2600SD	P26D	220	300	800	4	2.2	50	70
P3100SD	P31D	275	350	800	4	2.2	50	60
P3500SD	P35D	320	400	800	4	2.2	50	60
P3800SD	P38D	340	450	800	4	2.2	50	60
P4200SD	P42D	400	520	800	4	2.2	100	40
Notes: ① Vs is measured at 100KV/s. ② Off-state capacitance is measured in V_DC=2V, V_RMS=1V, f=1MHz.

DO-214AA SMB 8KV TSS Thyristor Surge Suppressors Low Capacitance 150pF P0080SD

Description:

PXXX0SD Series are designed to protect broadband equipment such as modems, line card, CPE and DSL from damaging over-voltage transients.

The series provides a surface mount solution that enables equipment to comply with global regulatory standards.

Features:

u Low voltage overshoot

u Low on-state voltage

u Does not degrade surge capability after multiple surge events within limit

u Fails short circuit when surged in excess of ratings

u Low Capacitance

Applicable Global Standards:

u TIA-968-A

u ITU K.20/21 Enhanced level

u ITU K.20/21 Basic Level

u GR 1089 Inter building

u IEC 6100-4-5

u YD/T 1082

u YD/T 993

u YD/T 950

Series	2/10μS¹	8/20μS¹		10/160μS¹	10/560μS¹	10/1000μS¹	5/310μS¹	I_TSM 50/60 Hz	di/dt
	2/10μS²	1.2/50μS²		10/160μS²	10/560μS²	10/1000μS²	10/700μS²
	A min	A min		A min	A min	A min	A min	A min	Amps/µs max
D	800	700		--	--	200	200	70	500
Notes: Current waveform in µs Voltage waveform in µs			- Peak pulse current rating (I_PP) is repetitive and guaranteed for the life of the product. - I_PP ratings applicable over temperature range of -40ºC to +85ºC - The device must initially be in thermal equilibrium with -40°C < T_J < +150°C

Part Number	Component Package	Quantity	Packaging Option	Packaging Specification
Pxxx0SD	DO-214AA	3000	Tape & Reel -12mm/13″tape	EIA -481 - D
