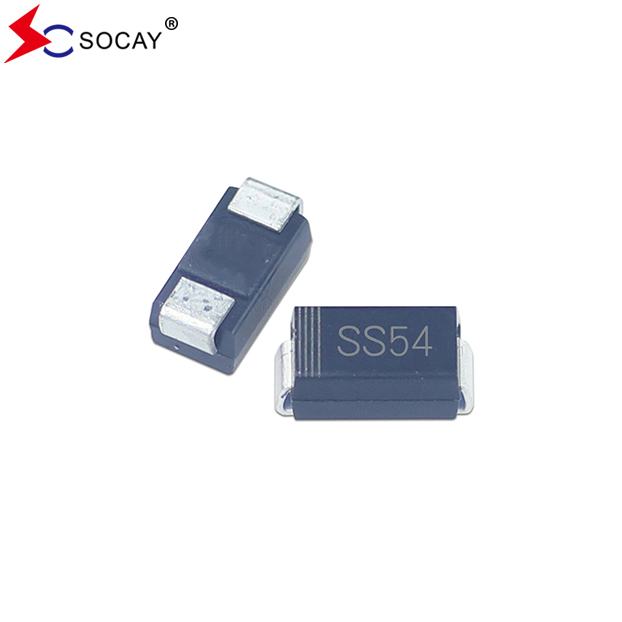

SS54A 40VRRM SBD Surface Mount Schottky Barrier Rectifiers DO-214AC(SMA) Package

Schottky Barrier Rectifiers DATASHEET: SS54A~SS520A(SMA)_v2307.1.pdf

Schottky Barrier Rectifiers SS54A Features:

Metal silicon junction, majority carrier conduction
Suitable for surface mounted applications
Merit: Low power loss, high efficiency
Merit: High forward surge current capability
For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.

Schottky Barrier Rectifiers SS54A Mechanical Data:

Schottky Barrier Rectifiers SS54A Max. Ratings & Thermal Characteristics:

Schottky Barrier Rectifiers' ratings at 25℃ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load,for capacitive load, derate by 20 %.
Parameter		Symbol	SS54A	SS56A	SS510A	SS515A	SS520A	Unit
Rectifiers Maximum Repetitive Peak Reverse Voltage		VRRM	40	60	100	150	200	V
Rectifiers Maximum RMS Voltage		VRMS	28	42	70	105	140	V
Rectifiers Maximum DC Blocking Voltage		VDC	40	60	100	150	200	V
Maximum Average Forward Current		IF(AV)	5.0					A
Rectifiers Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method)		IFSM	150					A
Rectifiers Max Instantaneous Forward Voltage at 5 A		VF	0.55	0.70	0.85			V
Maximum DC Reverse Current at Rated DC Reverse Voltage	Ta=25℃	IR	1.0 50					mA
	Ta=100℃
Rectifiers Typical Junction Capacitance(1)		Cj	500	300				pF
Typical Thermal Resistance(2)		RθJA	60					℃/W
Operating Junction Temperature Range		TJ	-55 to +150					℃
Rectifiers Storage Temperature Range		TSTG	-55 to +150					℃
Notes: 1.Measured at 1MHz and applied reverse voltage of 4 V D.C. 2. P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas.

Schottky Barrier Rectifiers SS54A Dimensions:

SS54A 40VRRM SBD Surface Mount Schottky Barrier Rectifiers DO-214AC SMA Package

Schottky Barrier Rectifiers SS54A Packaging Information:

Part Number	Component Package	Quantity
SS54A~SS520A	DO-214AC(SMA)	5000 PCS
