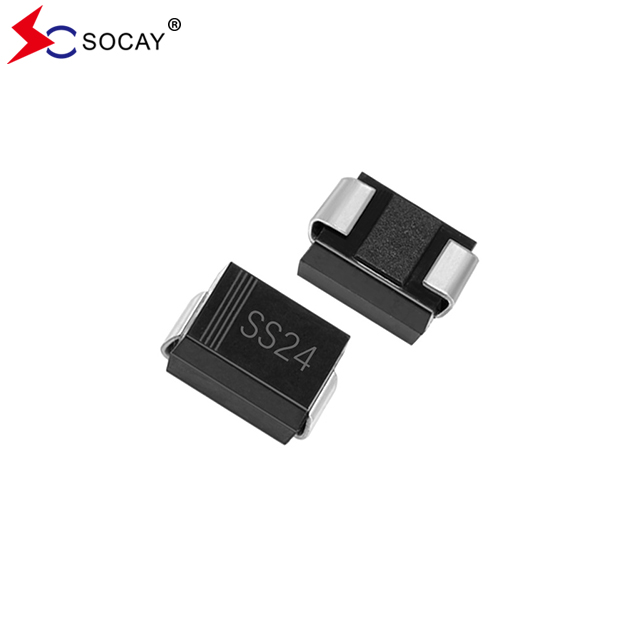

SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA SMB Package SS24B 40VRRM

  • 1
  • 2

Brand Name : SOCAY

Model Number : SS24B

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Component Name : Schottky Barrier Rectifiers

Package : DO-214AA(SMB)

SS24B Max. VRRM : 40V

SS24B Max. VRMS : 28V

SBD Max. VDC : 40V

SS24B Max. IF(AV) : 2A

Rectifiers IFSM : 50A

Rectifiers VF : 0.5V

Contact Now

SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA(SMB) Package SS24B 40VRRM

Schottky Barrier Rectifiers DATASHEET: SS22B~SS220B(SMB)_v93.1.pdf

Schottky Barrier Rectifiers​ SS24B Features:

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • For surface mounted applications in order to optimize board space.
  • Low power loss, High efficiency.
  • Schottky Barrier Rectifiers​ SS24B has High surge capacity.
  • Lead free in compliance with EU RoHS 2.0.

  • Green molding compound as per IEC 61249 standard.

Schottky Barrier Rectifiers​ SS24B Mechanical Data:

  • Case: JEDEC DO-214AA molded plastic.
  • Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.

  • Approx. Weight: 0.0032 ounces, 0.092 grams.

  • Polarity: Color band denotes cathode end.
  • Schottky Barrier Rectifiers​ SS24B Standard packaging: 12mm tape (EIA-481).

Schottky Barrier Rectifiers​ SS24B Electrical and Thermal Characteristics (TA=25℃ unless otherwise noted):

Parameter Symbol SS22B SS23B SS24B SS25B SS26B SS28B SS210B SS215B SS220B Unit
Maximum Repetitive Peak Reverse Voltage VRRM 20 30 40 50 60 80 100 150 200 V
Maximum RMS Voltage VRMS 14 21 28 35 42 56 70 105 140 V
Maximum DC Blocking Voltage VDC 20 30 40 50 60 80 100 150 200 V
Maximum Average Forward Rectified Current IF(AV) 2 A
Peak Forward Surge Current : 8.3ms Single Half Sinewave Superimposed on Rated Load IFSM 50 A
Maximum Forward Voltage at 2A per Diode (Note 1) VF 0.5 0.7 0.8 0.9 V
Maximum DC Reverse Current at Rated DC Blocking Voltage TJ=25℃ IR 0.09 0.05 mA
TJ=100℃ 20 1
Typical Thermal Resistance RθJL 12 ℃/W
Operating Junction and Storage Temperature Range

TJ,

TSTG

 -55 to +150 -55 to +175 ℃

Notes:1.Pulse Test with PW=300μsec, 1% Duty Cycle.

2.Mounted on P.C. Board with 8mm2 (0.013mm thick) copper pad areas.

Schottky Barrier Rectifiers​ SS24B Rating and Characteristic Curves:

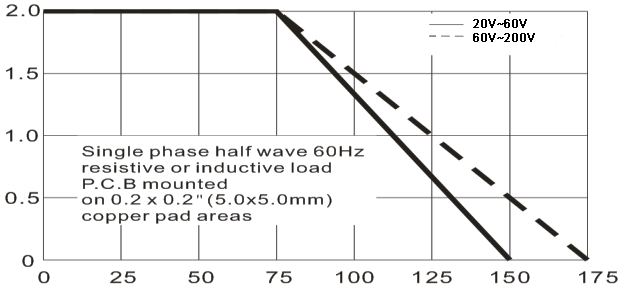

Fig1. Forward Current Derating Curve:

SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA SMB Package SS24B 40VRRM

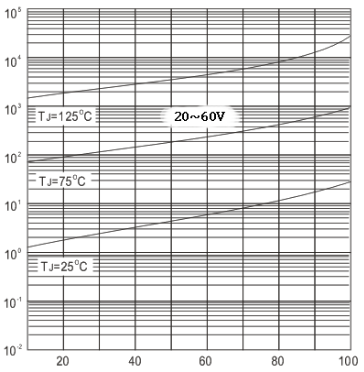

Fig2. Typical Reverse Characteristics:

SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA SMB Package SS24B 40VRRM

Schottky Barrier Rectifiers​ SS24B ​Dimensions / SMB/DO-214AA Package Outline (Unit:inch(mm)):

SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA SMB Package SS24B 40VRRM

Schottky Barrier Rectifiers​ SS24B Packaging Information:

Part Number Component Package Quantity Packaging Option
SS22B~SS220B SMB/DO-214AA 3000 PCS per 13" plastic Reel
800 PCS per 7" plastic Reel

SMD Schottky Barrier Rectifiers 20~200VRRM DO-214AA SMB Package SS24B 40VRRM
