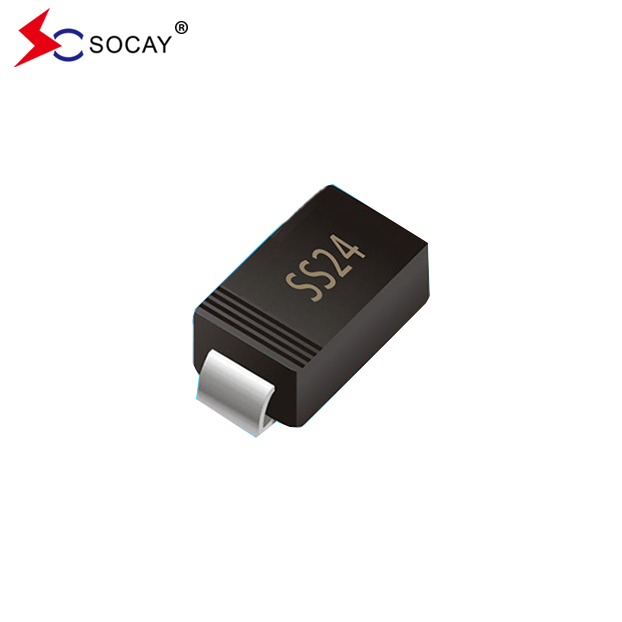

SMA Package Schottky Rectifier SS24A Schottky Barrier Diode VRRM 40V 2A DO-214AC

  • 1
  • 2
  • 3

Brand Name : SOCAY

Model Number : SS24A

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 5000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : Schottky Barrier Diode

Package : DO-214AC(SMA)

Max. VRRM : 40V

Max. VRMS : 28V

Max. VDC : 40V

Max. average forward rectified current : 2A

IFSM : 50A

RθJL : 35℃/W

Contact Now

SMA Package Schottky Rectifier SS24A Schottky Barrier Diode VRRM 40V 2A Forward Rectified Current ​

SBD​ DATASHEET: SS22A~SS220A(SMA)_v2211.1.pdf

Schottky Rectifier​ SS24A Distinguishing Feature:

  • Low profile package for more application.
  • Suitable for automated placement
  • Very quick reverse recovery time

  • High temperature soldering: 260 °C/10 seconds at terminals

  • Not high power losses, not low efficiency
  • Not high forward voltage drop
  • Not low surge capability
  • Not low temperature soldering :

Schottky Rectifier SS24A Mechanical Data:

  • Schottky Rectifier SS24A Case: JEDEC SMA molded plastic
  • SS24A Terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D

  • Schottky Rectifier Polarity: Laser band denotes cathode end

Schottky Rectifier SS24A Main Ratings and Features:

Schottky Rectifier IF(AV)

2.0A
Schottky Rectifier VRRM

20 V to 200 V
SS24A IFSM

50A
Schottky Rectifier SS24A VF

0.50V, 0.55V, 0.70V, 0.85V,0.95V
Tj max. 125℃

Schottky Rectifier SS24A Max. Ratings & Thermal Characteristics:

Items Symbol SS22A SS23A SS24A SS25A SS26A SS28A SS210A SS215A SS220A Unit

Schottky Rectifier Maximum repetitive peak

reverse voltage

 VRRM 20 30 40 50 60 80 100 150 200 V
Schottky Rectifier Maximum RMS voltage VRMS 14 21 28 35 42 56 70 105 140 V

Maximum DC

blocking voltage

 VDC 20 30 40 50 60 80 100 150 200 V

Maximum average forward

rectified current

 IF(AV) 2 A

Peak forward surge current

8.3ms single half sine-wave

superimposed on rated load

IFSM

 50 A

Voltage rate of change

(rated VR)

 dv/dt 10000 V/μs

Schottky Rectifier Thermal resistance from

junction to lead (1)

 RθJL 35 ℃/W

Operating junction and storage

temperature range

 TJ,TSTG –65 to +125 ℃
Note 1: Mounted on P.C.B. with 0.2 x 0.2” (5.0 x 5.0mm) copper pad areas.

SBD SS24A Electrical Characteristics (TA = 25℃ unless otherwise noted):

Items Test conditions Symbol SS22A

SS23A~

SS24A

SS25A~

SS26A

SS28A~

SS210A

SS215A~

SS220A

 Unit
Instantaneous forward voltage IF=2.0A(2) VF 0.50 0.55 0.70 0.85 0.95 V
Reverse current VR=VDC Tj=25℃ IR 0.5 mA
Tj=100℃ 5.0
Note 2: Pulse test:300μs pulse width,1% duty cycle.

Schottky Rectifier SS24A ​Dimensions:

SMA Package Schottky Rectifier SS24A Schottky Barrier Diode VRRM 40V 2A DO-214AC

Schottky Rectifier SS24A Notice:

  • SBD SS24A is intended for use in general electronics applications.
  • SS24A should be worked less than the ratings; if exceeded, it may cause permanent damage,or introduce latent failure mechanisms. Ensure safety.
  • The absolute maximum ratings are rated values and must not be exceeded during operation. The following are the general derating methods you design a circuit with a device.

Maximum average forward rectified current : The worst case current be no greater than 80% . It is very important.

Peak forward surge current 8.3ms single half sine-wave superimposed on rated load : This rating specifies the non-repetitive peak current. This is only applied for an abnormal operation, which the general during the lifespan of the device.

Operating junction temperature : Derate this rating when using a device in order to ensure high reliability. We recommend that the device should be used at a TJ of below 100℃.

SMA Package Schottky Rectifier SS24A Schottky Barrier Diode VRRM 40V 2A DO-214AC
