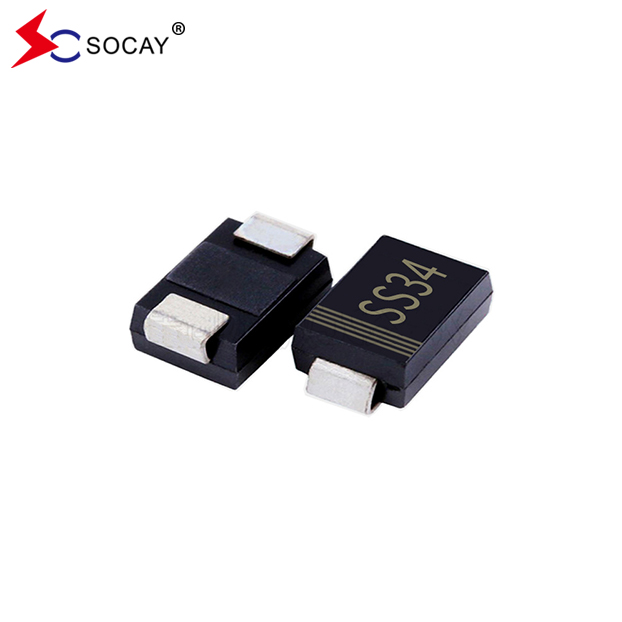

SS34C Schottky Barrier Diode 40VRRM 20VRRM SMC Package Schottky Barrier Rectifiers

Product Categories

Shenzhen Socay Electronics Co., Ltd.

Contact Now

Name: SS34C Schottky Barrier Diode 40VRRM 20VRRM SMC Package Schottky Barrier Rectifiers
Brand: SOCAY
Price: 1 USD

Brand Name : SOCAY

Model Number : SS34C

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Name : Schottky Barrier Diode

Rectifiers Package : DO-214AAB/SMC

Max. VRRM : 40V

Max. VRMS : 28V

Product Max. VDC : 40V

Max. VF at 3A : 0.5V

RθJL : 15℃/W

RθJA : 110℃/W

Contact Now

SS34C Schottky Barrier Diode 40VRRM 20VRRM SMC Package Schottky Barrier Rectifiers

SS34C Schottky Barrier Diode DATASHEET: SS32C_SS320C(SMC)_v2311.1.pdf

SS34C Schottky Barrier Diode Characteristics:

SS34C Schottky Barrier Diode Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
For SMC package applications in order to optimize board space.
This coponent has low power loss, high efficiency.
SS34C has high surge capacity.
Lead free in compliance with EU RoHS 2.0.
Green molding compound as per IEC 61249 standard.

The Following is SS34C Schottky Barrier Diode Mechanical Data:

Maximum Ratings and Electrical Characteristics of SS34C Schottky Barrier Diode:

Ratings at 25℃ ambient temperature unless otherwise specified. Resistive or inductive load.
Parameter		Symbol	SS32C	SS33C	SS34C	SS35C	SS36C	SS38C	SS310C	SS315C	SS320C	Unit
Diode Maximum Recurrent Peak Reverse Voltage		VRRM	20	30	40	50	60	80	100	150	200	V
Diode Maximum RMS Voltage		VRMS	14	21	28	35	42	56	70	105	140	V
Diode Maximum DC Blocking Voltage		VDC	20	30	40	50	60	80	100	150	200	V
Diode Maximum Average Forward Current		IF(AV)	3									A
Peak Forward Surge Current : 8.3ms Single Half Sinewave Superimposed on Rated Load		IFSM	100									A
Maximum Forward Voltage at 3A (Note 1)		VF	0.5			0.74		0.8		0.9		V
Maximum DC Reverse Current at Rated DC Blocking Voltage	TJ=25℃	IR	0.2			0.05						mA
	TJ=100℃		20			2		1
Diode Typical Thermal Resistance	(Note 2)	RθJL	15									℃/W
	(Note 3)	RθJA	110
Operating Junction Temperature Range		TJ	-55 to +125		-55 to +150	-65 to +175						℃
Diode Storage Temperature Range		TSTG	-55 to +150			-65 to +175						℃
Notes:1. Pulse Test with PW =300μsec, 1% Duty Cycle. 2. Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area. 3. Mounted on a FR4 PCB, single-sided copper, mini pad.

SS34C Schottky Barrier Diode Rating and Characteristic Curves:

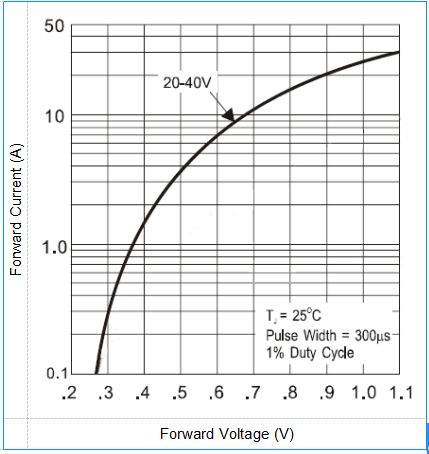

Fig1. Typical Forward Characteristics:

SS34C Schottky Barrier Diode 40VRRM 20VRRM SMC Package Schottky Barrier Rectifiers

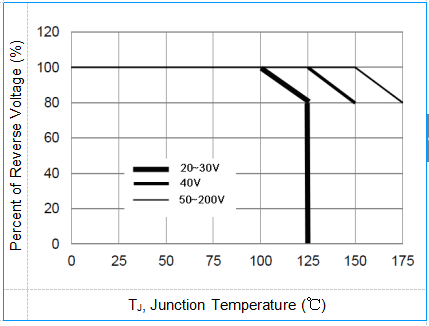

Fig2. Operating Temperature Derating Curve:

SS34C Schottky Barrier Diode 40VRRM 20VRRM SMC Package Schottky Barrier Rectifiers

SS34C Schottky Barrier Diode SMC/DO-214AB Package Outline (Unit:inch(mm)):

SS34C Schottky Barrier Diode 40VRRM 20VRRM SMC Package Schottky Barrier Rectifiers

Packaging Information:

SS34C Schottky Barrier Diode 40VRRM 20VRRM SMC Package Schottky Barrier Rectifiers
