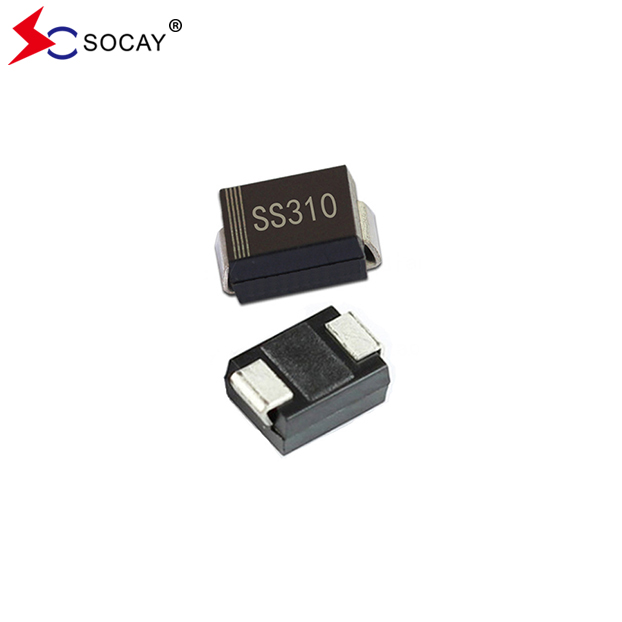

SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current

  • 1
  • 2
  • 3

Brand Name : SOCAY

Model Number : SS310B

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Component Name : Schottky Diode

Component Package : DO-214AA/SMB

Component Max. VRRM : 100V

Max. VRMS : 70V

Component Max. VDC : 100V

Max. VF : 0.8V

TJ : -65 to +175℃

TSTG : -65 to +175℃

Contact Now

SOCAY SMB Package Schottky Diode SS310B SS34B SS38B 3A Average Forward Current​

Schottky Diode DATASHEET: SS32B~SS320B(SMB)_v93.1.pdf

Characteristics of Schottky Diode SS310B:

  • Schottky Diode SS310B Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • SMD applications is in order to optimize board space.
  • Schottky Diode SS310B has low power loss, High efficiency.

  • Green molding compound as per IEC 61249 standard.

  • High surge capacity is very nice.
  • Schottky Diode SS310B Lead free in compliance with EU RoHS 2.0.

Schottky Diode SS310B Mechanical Data is as Below:

  • SS310B Case: JEDEC SMB package molded plastic.
  • SS310B Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.

  • Approximate Weight: 0.0032 ounces, 0.092 grams.

  • Schottky Diode Polarity: Color band denotes cathode end.
  • Its standard packaging: 12mm tape (EIA-481).

Electrical and Thermal Characteristics of Schottky Barrier Diode​ SS32B:

Parameter Symbol SS34B SS38B SS310B Unit
Schottky Diode Max. VRRM VRRM 40 80 100 V
Schottky Diode Max. RMS Voltage VRMS 28 56 70 V
Maximum VDC VDC 40 80 100 V
Max. Average IF(AV) IF(AV) 3 A
IFSM : 8.3ms Single Half Sinewave Superimposed on Rated Load IFSM 80 A
Schottky Diode Max. VF at 3A (Note 1) VF 0.5 0.74 0.8 0.9 V
Max. DC Reverse Current at Rated DC Blocking Voltage TJ=25℃ IR 0.2 0.05 mA
TJ=100℃ 20 10
Schottky Diode Typical Thermal Resistance (Note 2) RθJA 135 ℃/W
(Note 3) RθJL 23
Operating Junction Temperature Range and Storage Temperature Range

TJ,

TSTG

 -55 to +125 -55 to +150 -65 to +175 ℃

Notes:1.Pulse Test with PW=300μsec, 2% Duty Cycle.

2.Mounted on a FR4 PCB, single-sided copper, mini pad.

3.Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area.

Schottky Diode​ SS310B Rating and Characteristic Curves:

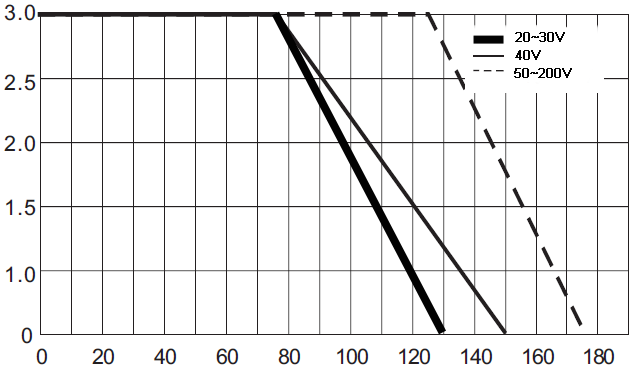

Fig1. SS310B Forward Current Derating Curve:

SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current

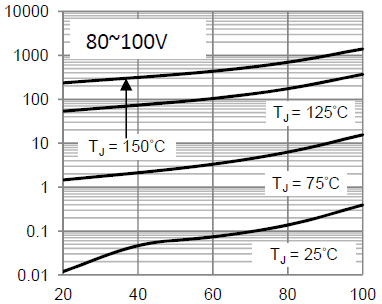

Fig2. Typical Reverse Characteristics:

SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current

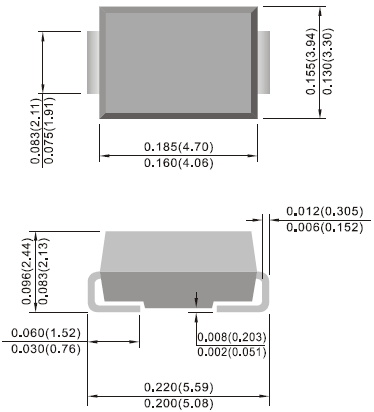

SMB Package Dimensions of Schottky Diode​ SS310B:

(Unit:inch(mm))

SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current

Packaging Information:

Part Number Component Package Quantity Packaging Option
SS310B SMB/DO-214AA 3000 PCS per 13" plastic Reel
800 PCS per 7" plastic Reel


SOCAY SMB Package 100V Schottky Diode SS310B SS34B SS38B 3A Average Forward Current
