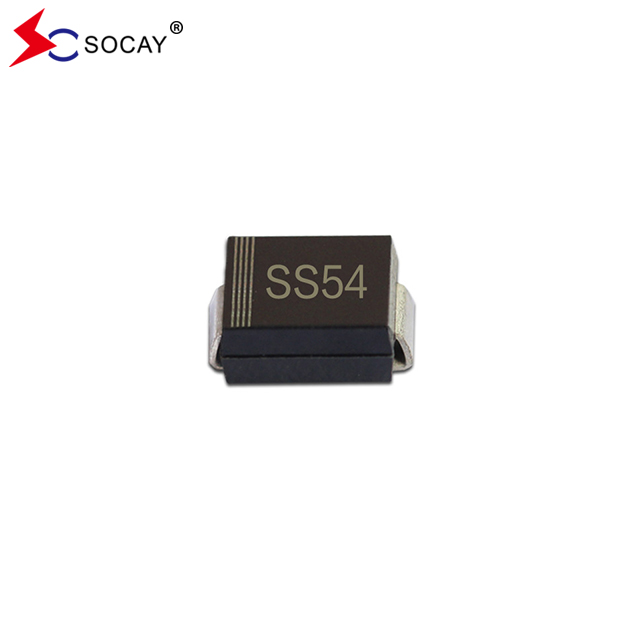

VRRM 40V SS54B SS510B 100VRRM Schottky Barrier Rectifiers 0.55V Forward Voltage

  • 1
  • 2

Brand Name : SOCAY

Model Number : SS54B

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Rectifiers Name : Schottky Barrier Rectifiers

Rectifiers Package : DO-214AA/SMB

Rectifiers Max. VRRM : 40V

Maximum VRMS : 28V

Component Max. VDC : 40V

Max. VF at 5A : 0.55V

IR at 25℃ : 1.0mA

IR at 100℃ : 50mA

Contact Now

VRRM 40V SS54B Schottky Barrier Rectifiers 0.55V Forward Voltage Schottky Diode

Schottky Barrier Rectifiers​ DATASHEET: SS52B~SS520B(SMB)_v2205.1.pdf

VRRM 40V SS54B Schottky Characteristics:

  • Metal silicon junction, majority carrier conduction
  • For surface mounted applications
  • Low power loss, high efficiency
  • High forward surge current capability
  • SS54B is for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications

VRRM 40V SS54B Schottky Mechanical Data is as Follows:

  • SS54B Case: SMB
  • Terminals: Solderable per MIL-STD-750, Method 2026

  • Approx. Weight: 0.1g / 0.0034oz

Electrical and Thermal Characteristics of Schottky Barrier Rectifiers​ SS52B:

Parameter Symbol SS52B SS54B SS56B SS58B SS510B SS512B SS515B SS520B Unit
Maximum VRRM Value VRRM 20 40 60 80 100 120 150 200 V
Schottky Barrier Rectifiers​ Max. RMS Voltage VRMS 14 28 42 56 70 84 105 140 V
Max. DC Blocking Voltage VDC 20 40 60 80 100 120 150 200 V
Max. Average Forward Current IF(AV) 5.0 A

Peak Forward Surge Current,8.3ms

Single Half Sine-wave Superimposed

on Rated Load (JEDEC method)

 IFSM 100 A
Schottky Barrier Rectifiers Max VF at 5 A VF 0.55 0.70 0.85 V

Maximum IR at Rated DC Reverse Voltage

 Ta=25℃ IR

1.0

50

0.3

25

 mA
Ta=100℃
Typ. Junction Capacitance(1) Cj 500 300 pF
Typ. Thermal Resistance(2) RθJA 50 ℃/W
Operating Junction Temperature Range TJ -55 to +150 ℃
Storage Temperature Range TSTG -55 to +150 ℃

Notes:1.Measured at 1MHz and applied reverse voltage of 4 V D.C..

2. P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas.

Schottky Barrier Rectifiers​ SS52B Rating and Characteristic Curves:

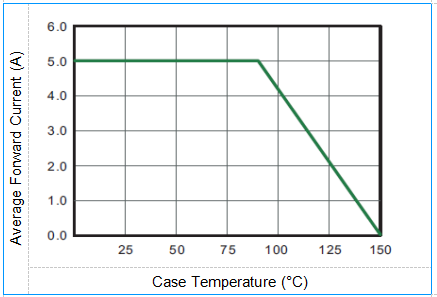

Fig1. SS52B Forward Current Derating Curve:

VRRM 40V SS54B SS510B 100VRRM Schottky Barrier Rectifiers 0.55V Forward Voltage

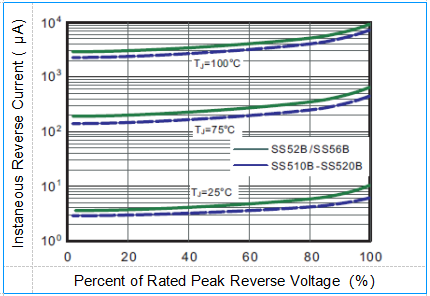

Fig2. SS52B Typical Reverse Characteristics:

VRRM 40V SS54B SS510B 100VRRM Schottky Barrier Rectifiers 0.55V Forward Voltage

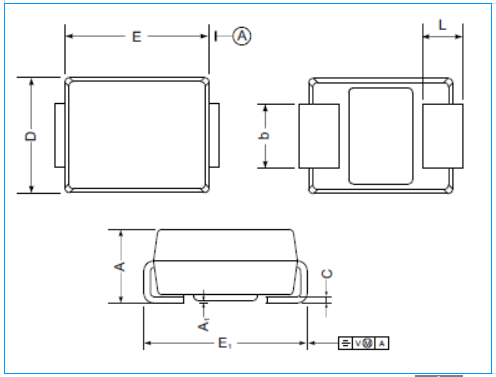

Schottky Barrier Rectifiers​ SS52B SMB Package Dimensions:

Plastic surface mounted package; 2 leads

VRRM 40V SS54B SS510B 100VRRM Schottky Barrier Rectifiers 0.55V Forward Voltage

Symbol mm mil
min. max. min. max.
A 2.13 2.46 84 97
E 4.06 4.70 160 185
D 3.3 3.94 130 155
E1 5.08 5.59 200 220
A1 0.05 0.20 2.0 7.9
L 0.8 1.5 32 59
C 0.152 0.305 6 12
b 1.9 2.2 75 87

Packaging Information:

Part Number Component Package Quantity
SS52B~SS520B SMB 3000 PCS
