20VRRM Schottky Barrier Diode SS32B Surface Mount VRMS 14V SMB Package

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

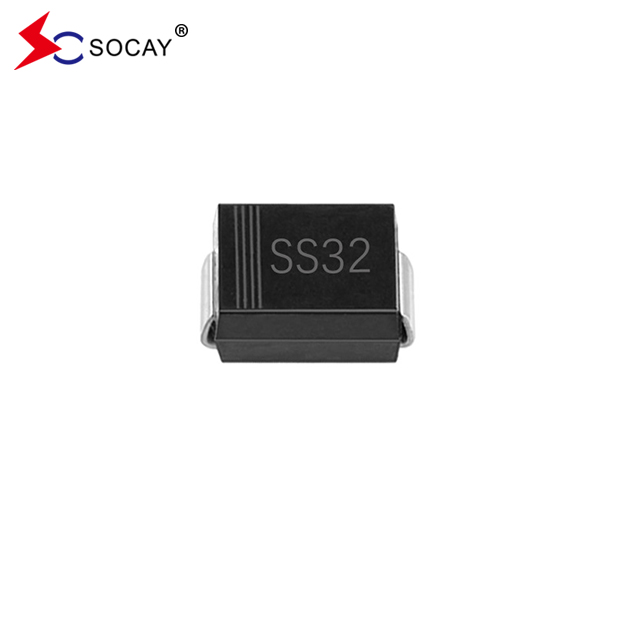

20VRRM Schottky Barrier Diode SS32B Surface Mount VRMS 14V SMB Package

  • 1
  • 2

Brand Name : SOCAY

Model Number : SS32B

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : Schottky Barrier Diode

Product Package : DO-214AA/SMB

Product Max. VRRM : 20V

Max. VRMS : 14V

Max. VDC : 20V

Max. IF(AV) : 3A

IFSM : 80A

TJ : -55 to +125℃

Contact Now

20VRRM Schottky Barrier Diode SS32B Surface Mount VRMS 14V SMB Package​

Schottky Barrier Diode DATASHEET: SS32B~SS320B(SMB)_v93.1.pdf

Characteristics of Schottky Barrier Diode​ SS32B ​:

  • Schottky Barrier Diode SS32B Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • Surface mounted applications is in order to optimize board space.
  • Schottky Barrier Diode SS32B has low power loss, High efficiency.

  • Its Green molding compound as per IEC 61249 standard.

  • Nice high surge capacity.
  • SS32B Lead free in compliance with EU RoHS 2.0.

Mechanical Data of Schottky Barrier Diode​ SS32B:

  • SS32B Case: JEDEC SMB/DO-214AA molded plastic.
  • Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.

  • Schottky Barrier Diode Approx. Weight: 0.0032 ounces, 0.092 grams.

  • Polarity: Color band denotes cathode end.
  • Schottky Barrier Diode Standard packaging: 12mm tape (EIA-481).

Electrical and Thermal Characteristics of Schottky Barrier Diode​ SS32B:

Parameter Symbol SS32B SS33B SS34B SS35B SS36B SS38B SS310B SS315B SS320B Unit
Schottky Barrier Diode Max. VRRM VRRM 20 30 40 50 60 80 100 150 200 V
Schottky Barrier Diode Max. RMS Voltage VRMS 14 21 28 35 42 56 70 105 140 V
Maximum VDC VDC 20 30 40 50 60 80 100 150 200 V
Schottky Barrier Diode Max. Average Forward Current IF(AV) 3 A
Peak Forward Surge Current : 8.3ms Single Half Sinewave Superimposed on Rated Load IFSM 80 A
Max. VF at 3A (Note 1) VF 0.5 0.74 0.8 0.9 V
Maximum DC Reverse Current at Rated DC Blocking Voltage TJ=25℃ IR 0.2 0.05 mA
TJ=100℃ 20 10
Schottky Barrier Diode Typical Thermal Resistance (Note 2) RθJA 135 ℃/W
(Note 3) RθJL 23
Operating Junction and Storage Temperature Range

TJ,

TSTG

 -55 to +125 -55 to +150 -65 to +175 ℃

Notes:1.Pulse Test with PW=300μsec, 2% Duty Cycle.

2.Mounted on a FR4 PCB, single-sided copper, mini pad.

3.Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area.

Rating and Characteristic Curves of Schottky Barrier Diode​ SS32B:

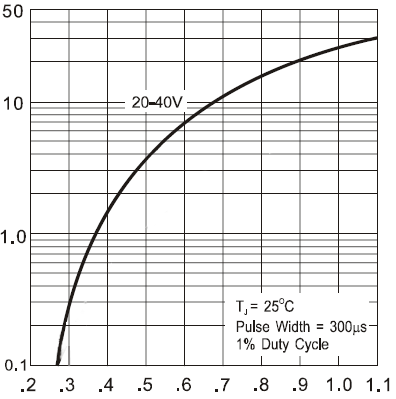

Fig1. Typical Forward Characteristics:

20VRRM Schottky Barrier Diode SS32B Surface Mount VRMS 14V SMB Package

Fig2. Typical Reverse Characteristics:

20VRRM Schottky Barrier Diode SS32B Surface Mount VRMS 14V SMB Package

DO-214AA Package Dimensions of Schottky Barrier Diode​ SS32B:

(Unit:inch(mm))

20VRRM Schottky Barrier Diode SS32B Surface Mount VRMS 14V SMB Package

Packaging Information:

Part Number Component Package Quantity Packaging Option
SS32B~SS320B SMB/DO-214AA 3000 PCS per 13" plastic Reel
800 PCS per 7" plastic Reel


20VRRM Schottky Barrier Diode SS32B Surface Mount VRMS 14V SMB Package
