SMD Package 60V Schottky Rectifier SS16A Schottky Diode DO-214AC

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

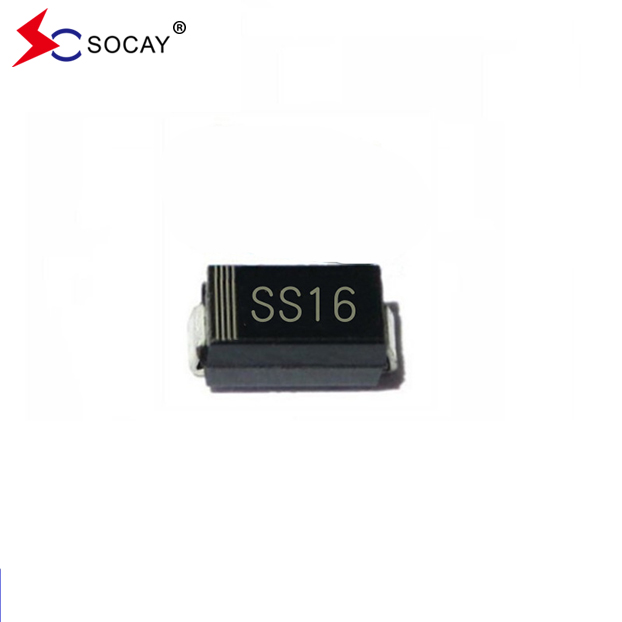

SMD Package 60V Schottky Rectifier SS16A Schottky Diode DO-214AC

  • 1
  • 2

Brand Name : SOCAY

Model Number : SS16A

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 5000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Procuct Component Name : Schottky Diode

Package : DO-214AC(SMA)

Max. VRRM : 60V

Max. VRMS : 42V

Max. VDC : 60V

Max. IF(AV) : 1A

SS16A IFSM : 40A

dv/dt (rated VR) : 10000V/μs

Contact Now

SMD Package 60V Schottky Rectifier SS16A Schottky Diode DO-214AC​

Schottky Barrier Diode​ DATASHEET: SS12A~SS120A(SMA)_v2211.1.pdf

SS16A Schottky Diode Properties:

  • Schottky Rectifier SS16A, it has low profile package
  • You know that, it is ideal for automated placement
  • Besides, its reverse recovery time is ultrafast
  • Schottky Rectifier SS16A has low power losses, and high efficiency
  • Not only low forward voltage drop
  • But also surge capability is high
  • TL High temperature soldering: 260℃/10 seconds at terminals

  • This Schottky Rectifier SS16A Component is in accordance to RoHS 2002/95/1 and WEEE 2002/96/EC

SS16A Schottky Diode Physical Parameters:

  • Schottky Rectifier SS16A Case: JEDEC DO-214AC molded plastic
  • The terminals: Solder plated, solderable per J-STD-002B and JESD22-B102D

  • Its Polarity: Laser band denotes cathode end

SS16A Schottky Diode Major Ratings and Properties:

Schottky Diode IF(AV) 1.0A
Schottky Diode VRRM 20 V to 200 V
Peak forward surge current IFSM 40A
SBD VF 0.50V, 0.55V, 0.70V, 0.85V,0.95V
SS16A Tj max. 125℃

Schottky Diode Maximum Ratings & Thermal Data (TA = 25℃ unless otherwise noted):

Schottky Items Symbol SS12A SS13A SS14A SS15A SS16A SS18A SS110A SS115A SS120A Unit

Schottky Max. repetitive peak

reverse voltage

 Schottky VRRM 20 30 40 50 60 80 100 150 200 V
Schottky Diode Max. RMS voltage Schottky VRMS 14 21 28 35 42 56 70 105 140 V

Max. DC

blocking voltage

 Schottky VDC 20 30 40 50 60 80 100 150 200 V

Schottky Max. average forward

rectified current

 IF(AV) 1 A

Schottky Diode Peak forward surge current

Schottky IFSM

 40 A

Schottky Diode Voltage rate of change

(rated VR)

 dv/dt 10000 V/μs

Schottky Thermal resistance (1)

 RθJL 35 ℃/W

Schottky Diode TJ,TSTG

 TJ,TSTG –65 to +125 ℃
Note 1: Schottky is Mounted on P.C.B. with 0.2 x 0.2” (5.0 x 5.0mm) copper pad areas.

Schottky Diode Electrical Data (TA = 25℃ unless otherwise noted):

Schottky Diode Items Schottky Conditions Symbol SS12A

SS13A~

SS14A

SS15A~

SS16A

SS18A~

SS110A

SS115A~

SS120A

 Unit
Instantaneous forward voltage Schottky IF=1.0A(2) VF 0.50 0.55 0.70 0.85 0.95 V
Schottky Diode Ir VR=VDC Tj=25℃ IR 0.5 mA
Tj=100℃ 5.0
Note 2: Schottky Diode Pulse test:300μs pulse width,1% duty cycle.

SS16A Schottky Diode ​Dimensions:

SMD Package 60V Schottky Rectifier SS16A Schottky Diode DO-214AC

SS16A Schottky Diode Notes:

  • Product SS16A Schottky Diode is intended for use in general electronics applications.
  • Product SS16A Schottky Diode should be worked less than the ratings; if the SS16A is exceeded, it may cause permanent damage,or introduce latent failure mechanisms.
  • The absolute maximum ratings of the SS16A are rated values and must not be exceeded during operation. The following are the general derating methods you design a circuit with a device.

IF(AV) : We advice that the worst case current of the product be no greater than 80% .

IFSM : This rating of SS16A specifies the non-repetitive peak current. This is only applied for an abnormal operation, which the general during the lifespan of the device.

TJ : Derate this rating of SS16A Schottky Diode when using a device in order to ensure high reliability. We advice that the device should be used at a TJ of 100℃ min.
