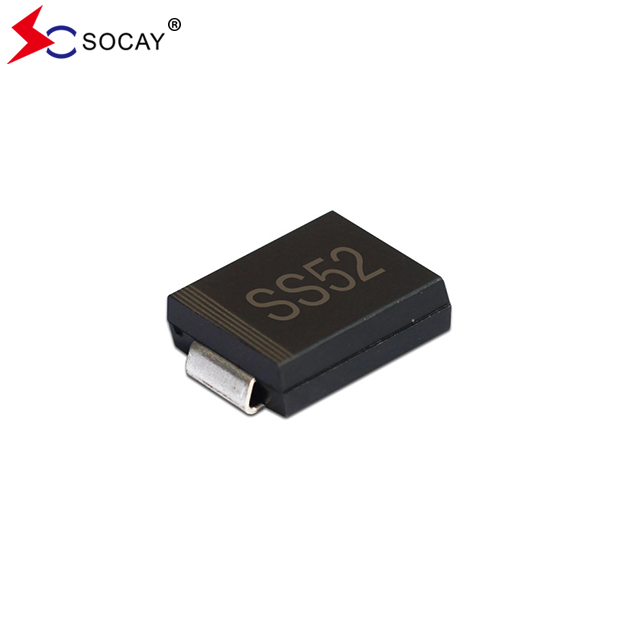

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package

  • 1
  • 2

Brand Name : SOCAY

Model Number : SS52C

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

SS52C Name : Schottky Barrier Rectifiers

SS52C Package : DO-214AAB/SMC

SS52C Max. VRRM : 40V

SS52C Max. VRMS : 28V

SS52C Max. VDC : 40V

Max. VF at 3A : 0.55V

IF(AV) : 5A

TJ : -55 to +125℃

Contact Now

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package

Schottky Barrier Rectifiers SS52C~SS520C​ DATASHEET: SS52C_SS520C(SMC)_v2311.1.pdf

Schottky Barrier Rectifiers SS52C~SS520C Features:

  • SS52C~SS520C Plastic package is in compliance with UL94V-0.
  • For DO-214AB package applications is in order to optimize board space.
  • SS52C~SS520C has Low power loss, high efficiency.

  • The product green molding compound as per IEC 61249 standard.

  • This coponent has High surge capacity. That is so good.
  • SS52C Lead free in compliance with EU RoHS 2.0.

The Following is Mechanical Data:

  • Schottky Barrier Rectifiers SS52C~SS520C Case: JEDEC DO-214AB molded plastic.
  • Component Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.
  • Schottky Barrier Rectifiers SS52C~SS520C Polarity: Color band denotes cathode end.
  • SS52C Standard packaging: 16mm tape (EIA-481).

  • Schottky Barrier Rectifiers SS52C~SS520C Approx. Weight: 0.0082 ounces, 0.2325 grams.

Max. Ratings and Electrical Features of Schottky Barrier Rectifiers SS52C~SS520C:

Ratings at 25℃ ambient temperature unless otherwise specified. Resistive or inductive load.
SS52C~SS520C Parameter Symbol SS52C SS53C SS54C SS55C SS56C SS58C SS510C SS515C SS520C Unit
Max. Recurrent Peak Reverse Voltage VRRM VRRM 20 30 40 50 60 80 100 150 200 V
SS52C~SS520C Maximum RMS Voltage VRMS 14 21 28 35 42 56 70 105 140 V
SS52C~SS520C Maximum DC Blocking Voltage VDC 20 30 40 50 60 80 100 150 200 V
Max. IF(AV) at TL = 75℃ IF(AV) 5 A
SS52C~SS520C IFSM : 8.3ms Single Half Sinewave Superimposed on Rated Load IFSM 100 A
Max. Forward Voltage at 5A (Note 1) VF 0.55 0.74 0.8 0.9 V
Maximum IR at Rated DC Blocking Voltage TJ=25℃ IR 0.2 0.05 mA
TJ=100℃ 20 10

SS52C~SS520C Typical Thermal Resistance

(Note 2)

 RθJL 17 ℃/W
RθJA 55
SS52C~SS520C Operating Junction Temperature Range TJ -55 to +125 -55 to +150 -65 to +175 ℃
SS52C~SS520C Storage Temperature Range TSTG -55 to +150 -65 to +175 ℃

Notes:1. SS52C~SS520C Pulse Test with PW =300μsec, 1% Duty Cycle.

2. SS52C~SS520C Mounted on P.C. Board with 14mm2 (0.013mm thick) copper pad areas.

Schottky Barrier Rectifiers SS52C~SS520C Rating and Characteristic Curves:

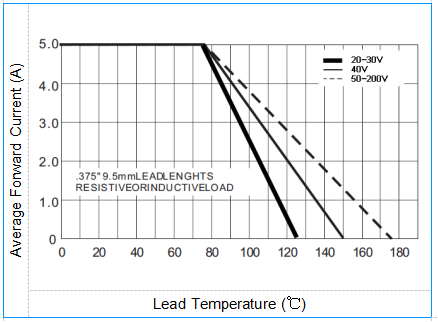

Fig1. Schottky Barrier Rectifiers SS52C~SS520C Forward Current Derating Curve:

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package

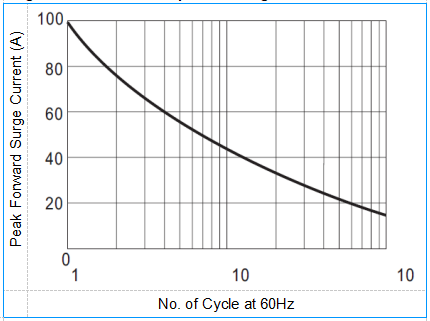

Fig2. SS52C~SS520C Maximum Non-Repetitive Surge Current:

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package

Schottky Barrier Rectifiers SS52C~SS520C Package Outline (Unit:inch(mm)):

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package

Packaging Information:

Part Number Component Package Quantity Packaging Option
SS52C~SS520C SMC/DO-214AB 3000 PCS per 13" plastic Reel
800 PCS per 7" plastic Reel

Surface Mount Schottky Barrier Rectifiers SS52C~SS520C 20VRRM DO-214AB Package
