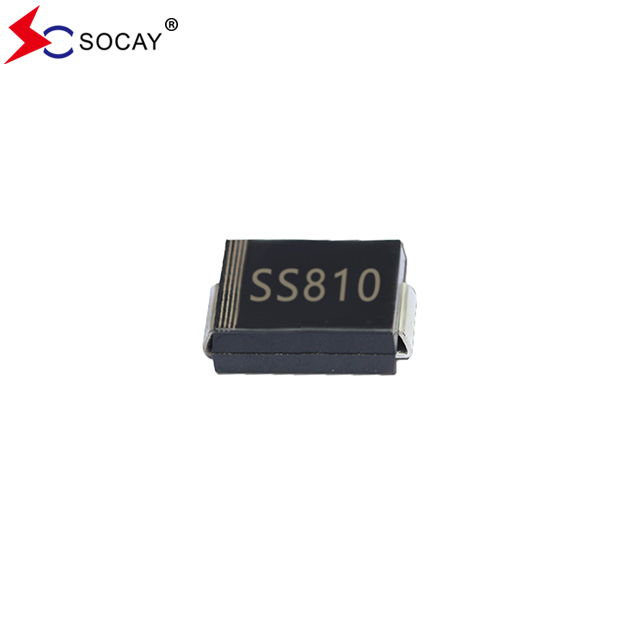

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package

  • 1
  • 2

Brand Name : SOCAY

Model Number : SS810C

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Component Name : Schottky Barrier Diode

Component Package : DO-214AAB/SMC

Max. VRRM : 100V

Component Max. VRMS : 70V

Product Max. VDC : 100V

SS810C IF(AV) : 8A

VF at 8A : 0.8V

SS810C IR : 50μA

Contact Now

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package

Schottky Barrier Diode SS810C​ DATASHEET: SS810C(SMC)_v94.1.pdf

Schottky Barrier Diode SS810C Features are as Follows:

  • Schottky Barrier Diode SS810C Plastic package is UL94V-0.
  • For surface mount package applications is in order to optimize board space.
  • SS810C has Low power loss, high efficiency.

  • SS810C Green molding compound as per IEC 61249 standard.

  • This coponent has High surge capacity.
  • Lead free, Schottky Barrier Diode is in compliance with EU RoHS 2.0.

Schottky Barrier Diode SS810C Mechanical Data:

  • Schottky Barrier Diode SS810C Case: JEDEC DO-214AB molded plastic.
  • Its Terminals: Solder plated, solderable per MIL-STD-750, Method 2026.
  • Schottky Barrier Diode SS810C Polarity: Color band denotes cathode end.
  • Its Standard packaging: 16mm tape (EIA-481).

  • Schottky Barrier Diode SS810C Approx. Weight: 0.0082 ounces, 0.2325 grams.

Max. Ratings and Electrical Characteristics of Schottky Barrier Diode SS810C:

SS810C Ratings at 25℃ ambient temperature unless otherwise specified. Resistive or inductive load.
SS810C Parameter Symbol SS810C SS810C Unit
Schottky Barrier Diode Max. Recurrent Peak Reverse Voltage VRRM 100 V
Schottky Barrier Diode Maximum RMS Voltage VRMS 70 V
Schottky Barrier Diode Max. VDC VDC 100 V
Schottky Barrier Diode Maximum Average Forward Current IF(AV) 8 A
Peak Forward Surge Current : 8.3ms Single Half Sinewave Superimposed on Rated Load IFSM 150 A
SS810C Maximum Forward Voltage at 8A VF 0.8 V
Maximum DC Reverse Current at Rated DC Blocking Voltage IR 50 μA
Schottky Barrier Diode Typical Thermal Resistance (Note 1) RθJL 15 ℃/W
(Note 2) RθJA 110
SS810C Operating Junction and Storage Temperature Range TJ,TSTG -55 to +150 ℃

Notes: 1. Mounted on a FR4 PCB, single-sided copper, with 100cm2 copper pad area.

2. Mounted on a FR4 PCB, single-sided copper, mini pad.

Schottky Barrier Diode SS810C Rating and Characteristic Curves:

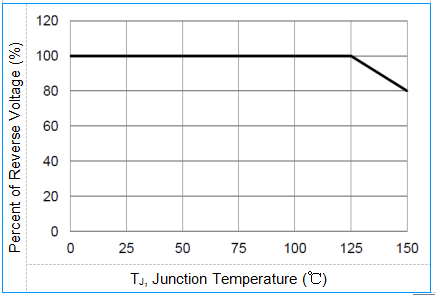

Fig1. Schottky Barrier Diode SS810C Operating Temperature Derating Curve:

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package

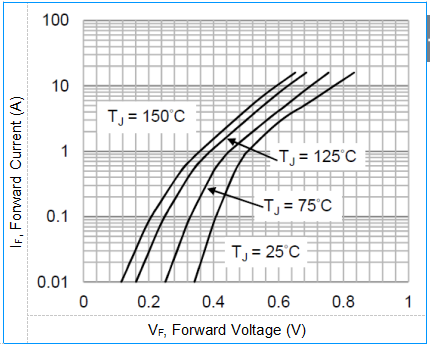

Fig2. Typical Forward Characteristics

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package

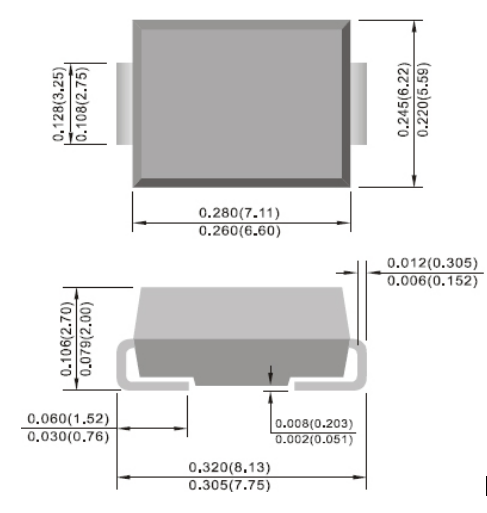

Schottky Barrier Diode SS810C SMC/DO-214AB Package Outline (Unit:inch(mm)):

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package

Packaging Information:

Part Number Component Package Quantity Packaging Option
SS810C SMC/DO-214AB 3000 PCS per 13" plastic Reel
800 PCS per 7" plastic Reel

100VRRM Surface Mount Schottky Barrier Diode SS810C 70VRMS Voltage SMC Package
