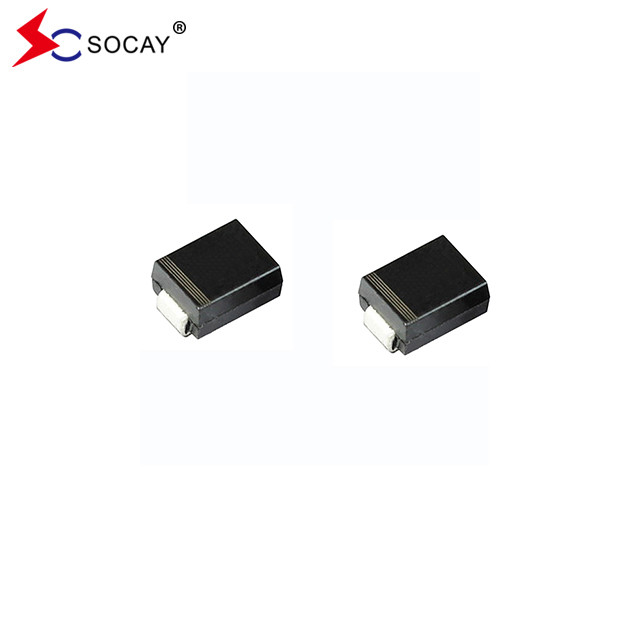

Product Description:
The Schottky Barrier Diode offers a maximum average forward current of 3A, which means it can handle high current loads without any issues. It also has a maximum forward voltage of 0.9V, which ensures that power dissipation in the diode is minimized. With a maximum DC blocking voltage of 20V, this diode is capable of handling a wide range of voltage levels.
The Schottky Barrier Diode is designed to operate within a wide temperature range, from -65 to +175℃. This makes it suitable for use in harsh environments where temperature fluctuations are common. The diode is also designed to be surface mountable, with a DO-214AA(SMB) package that ensures it can be mounted securely on your circuit board.
In summary, our Schottky Barrier Diode is a high forward surge current semiconductor that is ideal for applications that require high current loads. With a maximum average forward current of 3A, maximum forward voltage of 0.9V, and maximum DC blocking voltage of 150V, this diode is capable of handling a wide range of voltage levels. It is also designed to operate within a wide temperature range, from -65 to +175℃, making it suitable for use in harsh environments. The DO-214AA(SMB) package ensures that the diode can be surface mounted securely on your circuit board, making it easy to integrate into your circuits.
Features:
- Product Name: Schottky Barrier Diode
- Maximum Forward Voltage: 0.9V
- Maximum DC Blocking Voltage: 150V
- Peak Forward Surge Current: 80A
- Maximum RMS Voltage: 105V
- Package: DO-214AA(SMB)
- Type: Surface Mount Schottky Barrier Rectifiers
- Function: Diode Triode Transistor
- Special Feature: Electrostatic Diode
Technical Parameters:
| Product Attribute | Value |
| Product Name | Schottky Barrier Diode |
| Package | DO-214AA(SMB) |
| Maximum DC Blocking Voltage | 150V |
| Maximum RMS Voltage | 105V |
| Peak Forward Surge Current | 80A |
| Maximum Repetitive Peak Reverse Voltage | 150V |
| Maximum Average Forward Current | 3A |
| Maximum Forward Voltage | 0.9V |
| Operating Junction Temperature Range | -65 To +175℃ |
Applications:
Manufactured and tested in Shenzhen, China, this product complies with international standards and certifications such as REACH, RoHS, and ISO. It comes in a DO-214AA(SMB) packaging and has a minimum order quantity of 3000PCS/REEL.
The SOCAY SS315B Schottky Barrier Diode is ideal for a wide range of product application occasions and scenarios. Here are some examples:
- Power supply units of various electronic devices
- Battery charging circuits
- DC-DC converters
- Reverse voltage protection
- Solar panels and inverters
With a maximum forward voltage of only 0.9V and a maximum average forward current of 3A, this diode provides a low voltage drop and high efficiency in energy conversion. Its operating junction temperature range of -65 to +175℃ also makes it suitable for use in extreme environments.
Overall, the SOCAY SS315B Schottky Barrier Diode is a reliable and cost-effective solution for various electronic applications. Choose this product and enjoy its excellent performance and durability.
FAQ:
Q1: What is the brand name of this Schottky Barrier Diode product?
A1: The brand name of this product is SOCAY.
Q2: What is the model number of this Schottky Barrier Diode product?
A2: The model number of this product is SS315B.
Q3: Where is this Schottky Barrier Diode product produced?
A3: This product is produced in Shenzhen, China.
Q4: What certifications does this Schottky Barrier Diode product have?
A4: This product has REACH, RoHS, and ISO certifications.
Q5: What is the minimum order quantity and packaging details of this Schottky Barrier Diode product?
A5: The minimum order quantity is 3000PCS/REEL and the packaging details are DO-214AA(SMB).
