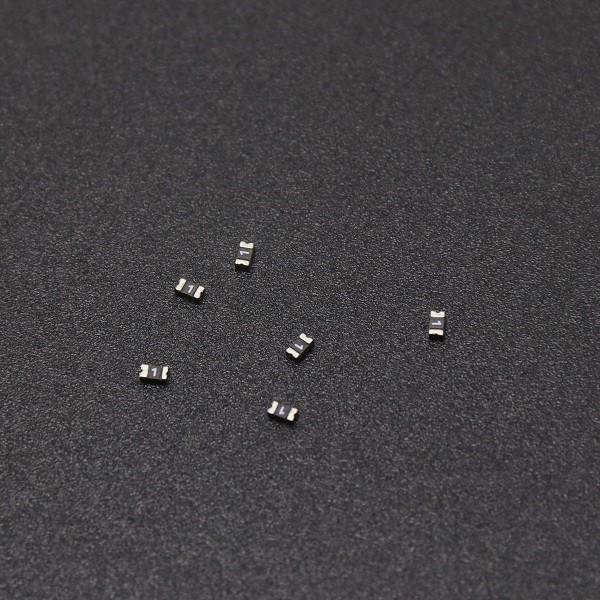

SOCAY PPTC Surface Mount PTC SCF125-0603RZB Resettable Multifuse
PPTC Resettable Fuse DATASHEET:SCF0603RZB Series_v2404.1.pdf
Product Description:
The R1 max rating 0.1Ω for this Surface Mount PPTC Resettable Fuse allows for easy installation and maintenance, while the V max rating 6.0Vdc indicates that this fuse is made from PTC Polymer, which ensures its durability and longevity. With a maximum resistance (I max) of 50.0A, this fuse provides reliable protection against overcurrent conditions.
Our Leaded PPTC Resettable Fuse is ideal for use in a wide range of applications, including power supplies, battery packs, and consumer electronics. Its compact size and high-performance capabilities make it an excellent choice for any project that requires reliable overcurrent protection.
Features:
- Product Name: PPTC Resettable Fuse
- Package: Surface Mount
- Current and temperature sensitive, resistance increases with the increase in temperature and current.
- PPTC resettable fuses have a slow response time, generally tens of milliseconds or even seconds, related to the size of the current flowing through the PPTC resettable fuse.
- Having self-recovery characteristics, it can be reapplied in circuits within its rated range of use.
- The PPTC resettable fuse has a low resistance value under normal operating condition, which has almost no effect on the circuit.
- The PPTC resettable fuse is connected in series in the circuit.
- The PPTC resettable fuse current is between 30mA~14A, and the withstand voltage value is 5V~600V.
Technical Parameters:
| Attribute | Specification |
| Component Name | PPTC Resettable Fuse |
| Package | Surface Mount |
| I Hold | 0.25A |
| I Trip | 0.55A |
| V Max | 9.0Vdc |
| I Max | 40.0A |
| P dtyp. | 0.5W |
| Current | 8.0A |
| Time | 0.08Sec. |
| R Min | 0.5Ω |
| R1 Max | 3.0Ω |
Applications:
With a minimum order quantity of 5000pcs, the price of this resettable fuse is negotiable and delivery time is typically 5-8 work days. Available in both surface mount and radial leads, it is a flexible component for a range of needs.
This PPTC resettable fuse has a current range of 1.25A - 2.5A and a trip current of 2.5A. Its surface mount design allows for easy installation and secure connections. The R min 0.5Ω option is available for those who require a radial leaded PPTC resettable fuse.
Some of the common applications for this product include:
- Automotive electronics
- Computer peripherals
- Consumer electronics
- Power supplies
- Telecommunication equipment
Whether you need a surface mount or radial leaded PPTC resettable fuse, the SOCAY is a reliable choice. Its trip current of 1.25A ensures protection against overcurrent and short circuit events. Get in touch with us today to learn more about pricing and delivery options.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is SOCAY.
Q: What is the model number of this product?
A: The model number of this product is SCF125-0603RZB.
Q: Where is this product made?
A: This product is made in Shenzhen, Guangdong, China.
Q: What certifications does this product have?
A: This product is certified by UL, REACH, RoHS, and ISO.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5000pcs.
Q: What is the price of this product?
A: The price of this product is negotiable.
Q: What is the delivery time for this product?
A: The delivery time for this product is 5-8 work days.
