33V Surface Mount Transient Voltage Suppressors SM8S33CAG, Suitable for High Reliability and Automotive Requirement
DATASHEET: SM8SXXG Series_v2309.1.pdf
Description:
TVS tubes are widely used for the protection of semiconductors and sensitive devices, usually for diode protection. They are characterised by their fast response time (PS level), small size, high transient pulse suppression power and low clamping voltage.
Material
Semiconductor materials,
| Part Number | Working Peak Reverse Voltage VRWM (V) | Breakdown Voltage VBR (V) | Test Current IT (mA) | Maximum Reverse Leakage IR @ VRWM (µA) | Maximum IR @ VRWM TJ=175℃ (µA) | Maximum Reverse Surge Current IPP (A) ① | Maximum Clamping Voltage VC @ IPP (V) |
| Uni | Bi | | Min. | Max. | | | | | |
| SM8S33AG | SM8S33CAG | 33.0 | 36.7 | 40.6 | 5.0 | 10 | 150 | 124 | 53.3 |
| Notes: 1. Surge current waveform is defined at 10/1000μS waveform. 2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum. |
Application:
Automotive Protection. Car sytem
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ ?
A: MOQ depend on the type of product, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Product Tags:
|
|

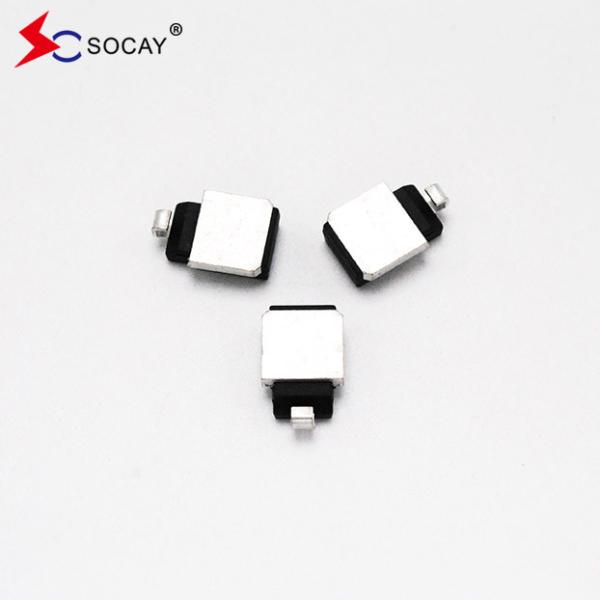

33V Surface Mount Circuit Protection Components TVS SM8S33CAG Automotive Parts Images
|
