TVS Diodes Circuit Protection Components SM8S33AG For Automotive Protection

Name: TVS Diodes Circuit Protection Components SM8S33AG For Automotive Protection
Brand: SOCAY
Price: 1 USD

TVS Diodes Circuit Protection Components SM8S33AG For Automotive Protection Manufactures

Brand Name : SOCAY

Model Number : SM8S33AG

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 500PCS

Price : Negotiable

Delivery Time : 5-8 work days

Package Type : DO-218AB

Vr : 33V

Ir@Vr @25℃ : 5μA

Ir@Vr @175℃ : 150μA

Vbr@It (Min.) : 36.7V

Vbr@It (Max.) : 40.6V

It : 5mA

Vc@Ipp : 53.3V

Ipp : 124A

Contact Now

SOCAY SM8S Series TVS Diodes SM8S33AG, Best Sellers for Automotive Protection

DATASHEET: SM8SXXG Series_v2309.1.pdf

Description:

The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Part Number		Working Peak Reverse Voltage V_RWM (V)	Breakdown Voltage V_BR (V)		Test Current I_T (mA)	Maximum Reverse Leakage I_R @ V_RWM (µA)	Maximum I_R@ V_RWM T_J=175℃ (µA)	Maximum Reverse Surge Current I_PP (A) ①	Maximum Clamping Voltage V_C @ I_PP (V)
Uni	Bi		Min.	Max.
SM8S33AG	SM8S33CAG	33.0	36.7	40.6	5.0	10	150	124	53.3
*Notes:* 1. Surge current waveform is defined at 10/1000μS waveform. 2. For all types maximum V_F = 1.8 V at I_F = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.

Features:

Optimized glass passivated chip.

T_J=175℃ capability suitable for high reliability and automotive requirement.

6600W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01 %.

Meet ISO7637-2 5a/5b and ISO 16750 load dump test (varied by test condition).

Meet AEC-Q101 qualified.

Low leakage current.

Low forward voltage drop.

Excellent clamping capability.

Very fast response time.

RoHS compliant.

Application:

Automotive Protection.

Product Tags:

TVS Diodes Circuit Protection Components

Automotive Protection Circuit Protection Components

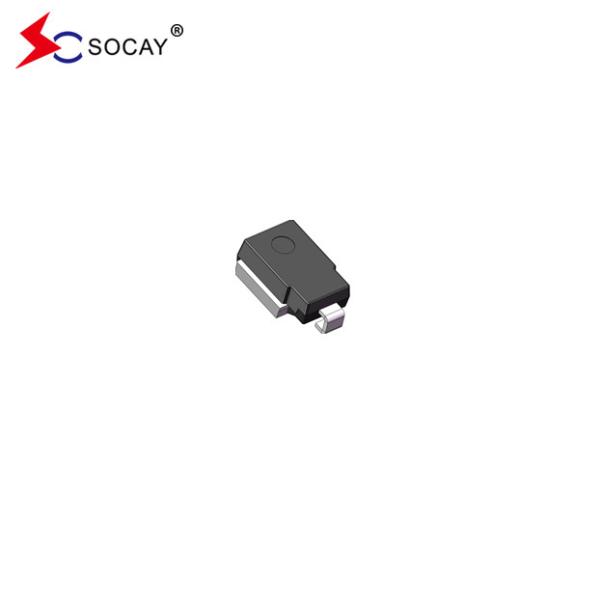

TVS Diodes Circuit Protection Components SM8S33AG For Automotive Protection Images
