SPG Gas Glass Discharge Tube SCCE-141N 3000A High Isolation Spark Gap Protectors

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

SPG Gas Glass Discharge Tube SCCE-141N 3000A High Isolation Spark Gap Protectors

  • 1
  • 2
  • 3

Brand Name : SOCAY

Model Number : SCCE-141N

Certification : REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1500PCS

Price : Negotiable

Delivery Time : 5-8 work days

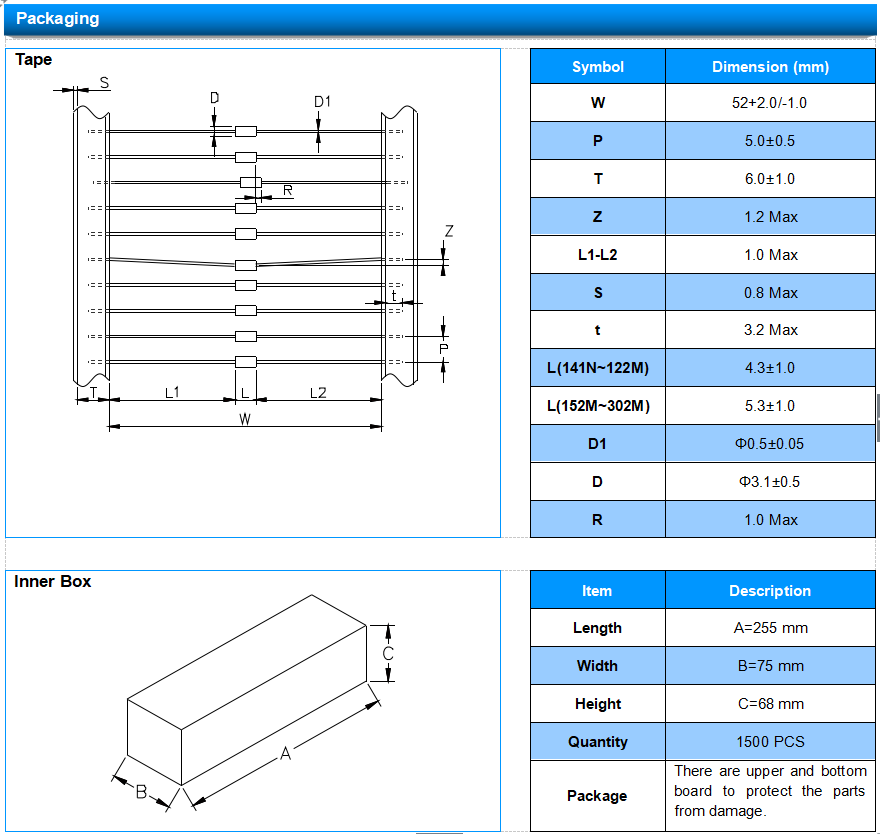

Packaging Details : AMMO packing bulk

Product Name : Spark Gap Protectors (SPG)

Package Type : Axial Lead

VS : 140(98~182)V

IR/DC : 100M/50V

C : 1.0pF

8/20μS : 3000A

Surge Life Test : 10KV / 150A , >300T

Contact Now

Glass Gas Discharge Tube (SPG) SCCE-141N SPG 3000A @8/20μS High Isolation (≥100MΩ).


DATASHEET: SCCE Series_v2204.1.pdf

Part Number

DC Spark-over

Voltage

Vs(V)

Minimum

Insulation

Resistance

IR(OHM)/DC

Maximum

Capacitance

1KHZ-6Vmax

C (pF)

Surge Current

Capacity

8/20 μS

 Surge Life Test
SCCE-141N 140(126~210) 100M / 50V 1.0 3000A 10KV / 150A , >300T
SCCE-181N 180(126~234) 100M / 100V 1.0 3000A 10KV / 150A , >300T
SCCE-201M 200(160~240) 100M /100V 1.0 3000A 10KV / 150A , >300T
SCCE-301M 300(240~360) 100M /100V 1.0 3000A 10KV / 150A , >300T
SCCE-401M 400(320~480) 100M / 250V 1.0 3000A 10KV / 150A , >300T
SCCE-501M 500(400~600) 100M / 250V 1.0 3000A 10KV / 150A , >300T
SCCE-601M 600(480~720) 100M / 250V 1.0 3000A 10KV / 150A , >300T
SCCE-701M 700(560-840) 100M / 250V 1.0 3000A 10KV / 150A , >300T
SCCE-801M 800(640-960) 100M / 250V 1.0 3000A 10KV / 150A , >300T
SCCE-102M 1000(800~1200) 100M / 500V 1.0 3000A 10KV / 150A , >300T
SCCE-122M 1200(960-1440) 100M / 500V 1.0 3000A 10KV / 150A , >300T
SCCE-152M 1500(1200~1800) 100M / 500V 1.0 3000A 10KV / 150A , >300T
SCCE-202M 2000(1600-2400) 100M / 500V 1.0 3000A 10KV / 150A , >300T
SCCE-242M 2400(1920-2880) 100M / 500V 1.0 3000A 10KV / 150A , >300T
SCCE-272M 2700(2160-3240) 100M / 500V 1.0 3000A 10KV / 150A , >300T
SCCE-302M 3000(2400-3600) 100M / 500V 1.0 3000A 10KV / 150A , >300T


SPG Gas Glass Discharge Tube SCCE-141N 3000A High Isolation Spark Gap Protectors


Features:

u Approximately zero leaking current before clamping voltage

u Less decay at on/off state.

u High capability to withstand repeated lightning strikes.

u Low electrode capacitance (≤1.0pF) and high isolation (≥100MΩ).

u RoHS compliant.

u Bilateral symmetrical.

u Temperature, humidity and lightness insensitive.

u Working temperature: -45℃~ +125 ℃

u Storage temperature: -45℃~ +125℃

u Meets MSL level 1, per J-STD-020



Applications:

u Power Supplies

u Motor sparks eliminating

u Relay switching spark absorbing

u Data line pulse guarding

u Electronic devices requiring UL497A and UL497B compliant

u Telephone/Fax/Modem

u High frequency signal transmitters/receivers

u Satellite antenna

u Radio amplifiers

u Alarm systems

u Cathode ray tubes in Monitors/TVs

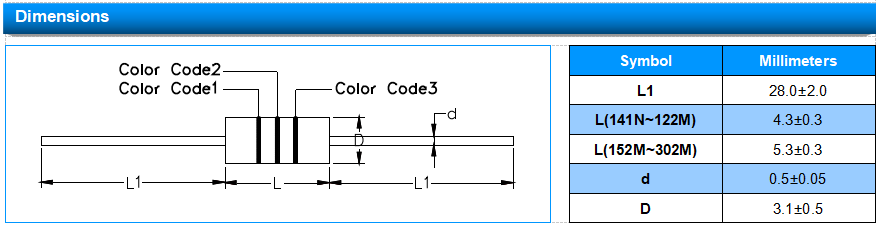

Part Number Color Code1 Color Code2 Color Code3
SCCE-141N Black Yellow --
SCCE-181N Gray -- --
SCCE-201M Red -- --
SCCE-301M Orange -- --
SCCE-401M Yellow -- --
SCCE-501M Green -- --
SCCE-601M Blue -- --
SCCE-701M Purple -- --
SCCE-801M Gray -- --
SCCE-102M Black -- --
SCCE-122M Brown Red --
SCCE-152M Black Green Red
SCCE-202M Red Black Red
SCCE-242M Red Yellow Red
SCCE-272M Red Purple Red
SCCE-302M Orange Black Red


SPG Gas Glass Discharge Tube SCCE-141N 3000A High Isolation Spark Gap Protectors

SPG Gas Glass Discharge Tube SCCE-141N 3000A High Isolation Spark Gap Protectors
