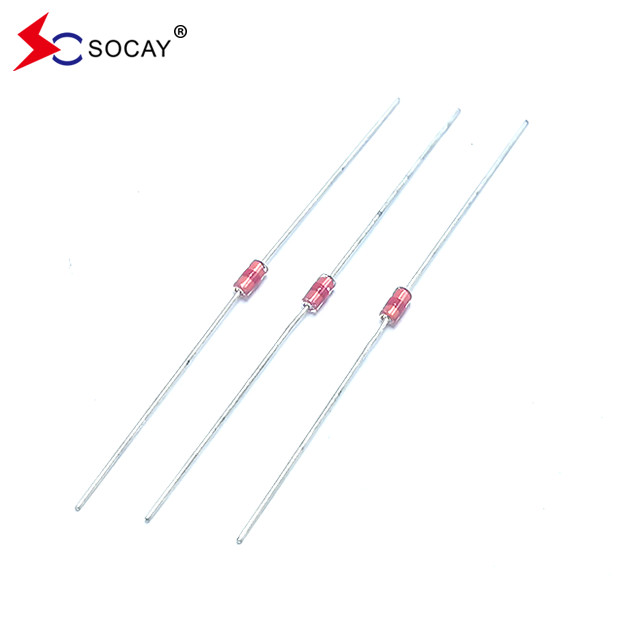

Axial Lead Spark Gap Protectors (SPG) SCA-141N Vs 140(98~182)V 1.0pF @8/20μS 500A
DATASHEET: SCA_v2204.1.pdf
Description
SPG like Gas discharge tube, its use of glass packaging, its main features are: small volume, small electrode capacitance, high insulation resistance, breakdown voltage optional range, slow reaction speed (high residual voltage).
| Part Number | DC Spark-over Voltage Vs(V) | Minimum Insulation Resistance IR(OHM)/DC | Maximum Capacitance 1KHZ-6Vmax C (pF) | Surge Current Capacity 8/20 μS | Surge Life Test |
| SCA-141N | 140(98~182) | 100M / 50V | 1.0 | 500A | 10KV / 100A , >200T |
| SCA-201M | 200(160~240) | 100M /100V | 1.0 | 500A | 10KV / 100A , >200T |
| SCA-301M | 300(240~360) | 100M /100V | 1.0 | 500A | 10KV / 100A , >200T |
| SCA-401M | 400(320~480) | 100M / 250V | 1.0 | 500A | 10KV / 100A , >200T |
| SCA-501M | 500(400~600) | 100M / 250V | 1.0 | 500A | 10KV / 100A , >200T |
| SCA-601M | 600(480~720) | 100M / 250V | 1.0 | 500A | 10KV / 100A , >200T |
| SCA-102M | 1000(800~1200) | 100M / 500V | 1.0 | 500A | 10KV / 100A , >200T |
Features:
| u Approximately zero leaking current before clamping voltage u Less decay at on/off state. u High capability to withstand repeated lightning strikes. u Low electrode capacitance (≤1.0pF) and high isolation (≥100MΩ). u RoHS compliant. u Bilateral symmetrical. u Temperature, humidity and lightness insensitive. u Working temperature: -45℃~ +85 ℃ u Storage temperature: -45℃~ +85℃ u Meets MSL level 1, per J-STD-020 |
Working Principle
In parallel on the circuit, when the device does not operate, the resistance value is high (GΩ), low equivalent capacitance can be regarded as open circuit, almost no impact on the circuit. When there is an abnormal pulse, the internal resistance drops instantaneously after reaching the operating voltage value, and the current is released instantaneously. When the abnormal high voltage disappears, it returns to the high resistance state, and the circuit works normally.
Applications:
All kinds of power products,
isolators, inverters, medical equipment,
485 converter, communication products,
security products.

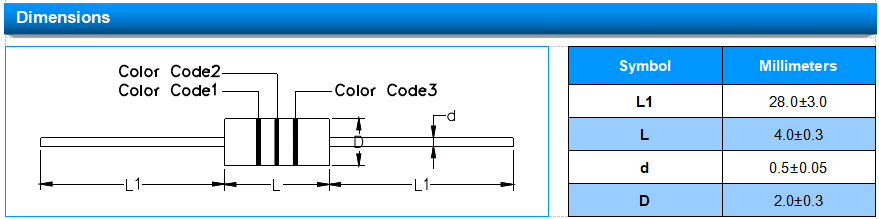

| Part Number | Color Code1 | Color Code2 | Color Code3 |
| SCA-141N | Yellow | Black | - |
| SCA-201M | Red | - | - |
| SCA-301M | Orange | - | - |
| SCA-401M | Yellow | - | - |
| SCA-501M | Green | - | - |
| SCA-601M | Blue | - | - |
| SCA-102M | Black | - | - |

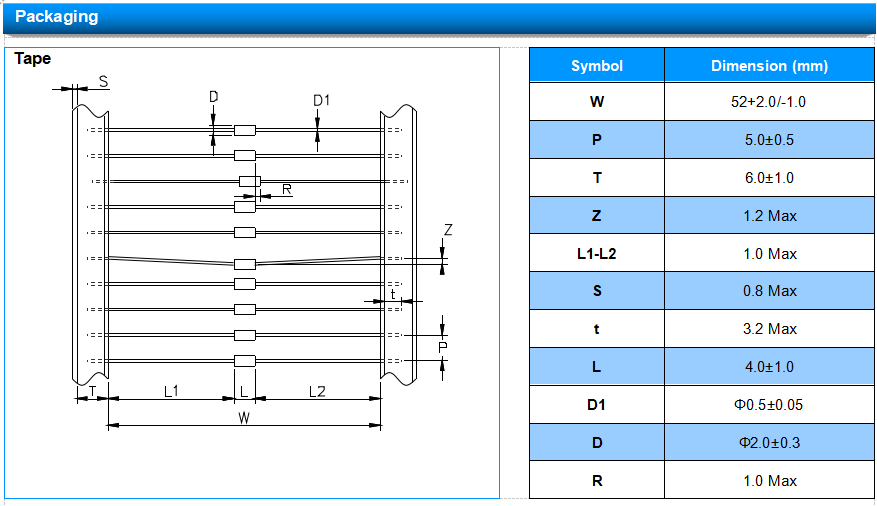

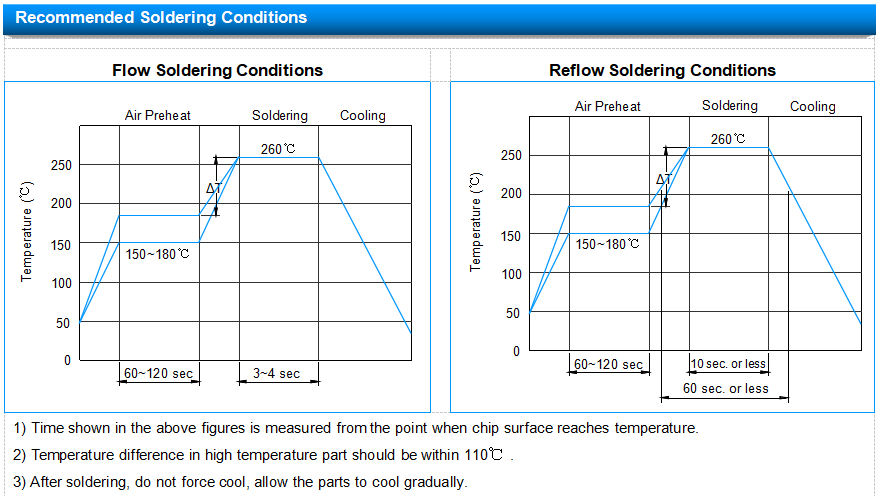

Hand Soldering
Solder iron temperature: 350±5℃
Heating time: 3 seconds max.
