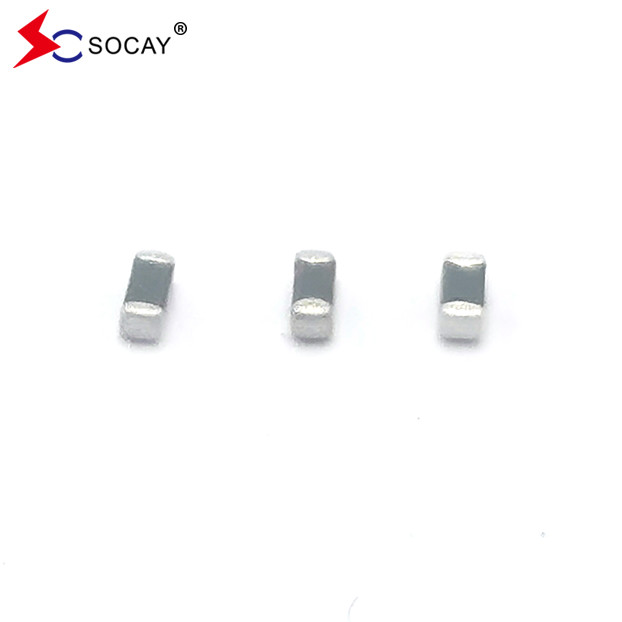

0603 Surface Mount Varistor SV0603N300G0A Excellent Low And Stable Leakage Current
Surface Mount Varistor DATASHEET: SV0603N300G0A_v89.1.pdf
Description:
The Surface Mount Varistor SV0603N300G0A is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV0603N300G0A is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.
Surface Mount Varistor Equivalent Circuits:
Electrical Characteristics (25±5℃):
| Symbol | Minimum | Typical | Maximum | Units |
| VRMS | — | — | 25 | V |
| VDC | — | — | 30 | V |
| VV | 36 | — | 45 | V |
| VC | — | — | 99 | V |
| Imax | — | — | 30 | A |
| Wmax | — | — | 0.1 | J |
VRMS - Maximum AC operating voltage the varistor can maintain and not exceed 10μA leakage current.
VDC - Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.
VV - Voltage across the device measure at 1mA DC current.
Equivalent to VB “breakdown voltage”.
VC - Maximum peak current across the varistor with 8/20μs waveform and 1A pulse current.
Imax - Maximum peak current which may be applied with 8/20μs waveform without device failure.
Wmax - Maximum energy which may be dissipated with the 10/1000μs waveform without device failure.
Surface Mount Varistor Features:
- SMD type zinc oxide based ceramic chip
- Lead free plating termination provided good solderability characteristic
- Insulator overcoat keeps excellent low and stable leakage current
- Quick response time (<1ns)
- Low clamping voltage
- High transient current capability
- Meet IEC 61000-4-2 standard
- Compact size for EIA 0603
|
Surface Mount Varistor Applications:
- Application for Mother Board, Notebook, Cellular Phone, PDA, handheld device, DSC, DV, Scanner, and Set-Top Box…etc.
- Suitable for Push-Button, Power Line and Low Frequency single line over-voltage protect.
|
Surface Mount Varistor Construction & Dimensions:
| Size EIA (EIAJ) | 0603 (1608) |
| Symbol | Inches | Millimeters |
| L | 0.063±0.006 | 1.60±0.15 |
| W | 0.031±0.004 | 0.80±0.10 |
| T | 0.031±0.008 | 0.80±0.20 |
| C | 0.012±0.008 | 0.30±0.20 |
| Precaution for handling of substrate: Do not exceed to bend the board after soldering thes product extremely. (reference examples) - Mounting place must be as far as possible from the position, which is close to the break line of board or on the line of large holes of board.
- Do not bend extremely the board, in mounting another component. If necessary, use back-up pin (support pin) to prevent from bending extremely.
- Do not break the board by hand. We recommend to use the machine or the jig to break it.
|
Surface Mount Varistor Soldering Parameters:
| Reflow Condition | Pb-Free assembly | |
| Pre Heat | -Temperature Min (Ts(min)) | +150°C | |
| | -Temperature Max (Ts(max)) | +200°C | |
| | -Time (min to max) (TS) | 60 -180 Seconds | |
| Average ramp up rate ( Liquidus Temp TL) to peak | 3°C/Second Max | |
| TS(max) to TL - Ramp-up Rate | 3°C/Second Max | |
| Reflow | - Temperature (TL) (Liquidus) | +217°C | |
| | | | |
| | | | |
| | - Time (min to max) (TL) | 60 -150 Seconds | |
| Peak Temperature (TP) | 260 +0/-5°C |
| Time within 5°C of actual peak Temperature (TP) | 20-40 Seconds | |
| Ramp-down Rate | 6°C/Second Max | |
| Time 25°C to peak Temperature (TP) | 8 minutes Max | |
Multilayer Varistor Carrier Tape Dimension:
| Size EIA (EIAJ) | 0603 (1608) |
| Symbol | Inches | Millimeters |
| A | 0.315±0.012 | 8.00±0.30 |
| B | 0.138±0.002 | 3.50±0.05 |
| C | 0.069±0.002 | 1.75±0.10 |
| D0 | 0.061±0.002 | 1.55±0.05 |
| P0 | 0.157±0.004 | 4.00±0.10 |
| P1 | 0.079±0.002 | 4.00±0.10 |
| P2 | 0.079±0.002 | 2.00±0.05 |
| W | 0.041±0.006 | 1.05±0.15 |
| L | 0.075±0.006 | 1.90±0.15 |
| T | 0.037±0.002 | 0.95±0.05 |
Quantity of Products in the Taping Package:
| SIZE EIA (EIAJ) | 0603 (1608) |
| Standard Packing Quantity (PCS / reel) | 4,000 |
