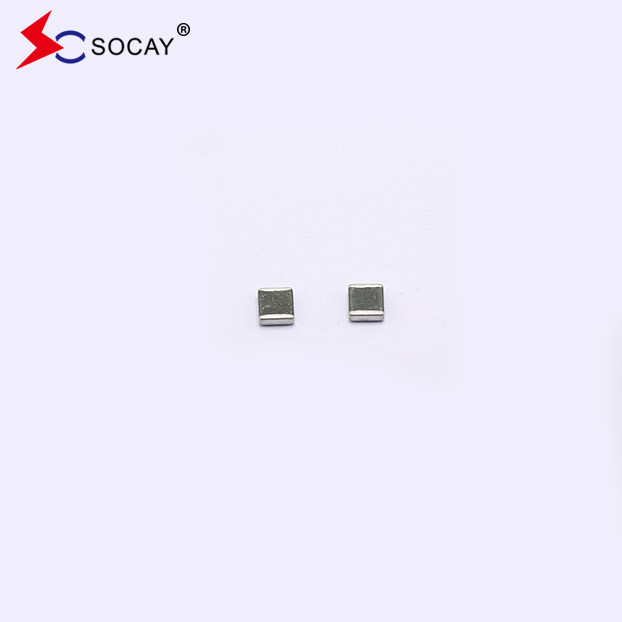

18VDC Surface Mount Multilayer Varistor SV0402E180G2B SMD Quick Response Time (<1ns)
Multilayer Varistor DATASHEET: SV0402E180G2B_v89.1.pdf
Description:
The Multilayer Varistor SV0402E180G2B is based on Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The SV0402E9R0G0B is typically applied to protect integrated circuits and other components at the circuit board level. It can operate over a wider temperature range than zener diodes.
Equivalent Circuits:
Electrical Characteristics (25±5℃):
| Symbol | Minimum | Typical | Maximum | Units |
| VDC | — | — | 9 | V |
| VV | 11 | — | 17 | V |
| VC | — | — | 35 | V |
| CP | — | 5 | — | pF |
VDC – Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.
VV – Voltage across the device measure at 1mA DC current.
Equivalent to VB “breakdown voltage”
VC – Maximum peak current across the varistor with 8/20μs waveform and 1A pulse current.
CP – Device capacitance measured with zero volt bias 1Vrms at 1MHz. The pF is ±30%.
Multilayer Varistor Features:
| u Lead Free type u SMD type zinc oxide based ceramic chip u Insulator over coat keeps excellent low and stable leakage current u Plating termination provided good solderability characteristic u Quick response time (<1ns) u Low clamping voltage u Meet IEC61000-4-2 standard u Low capacitance can meet high speed single transient voltage protection |
Multilayer Varistor Applications:
| u Low capacitance product applications for high-speed signal lines such as HDMI, DVI, USB, IEEE 1394 Port etc. u Normal capacitance product applications for I/O Port (RS232, USB, PS2, VGA, Audio) on Mother Board and Notebook, Set–Top Box, MP3 Players, DVD Players, and Docking System etc. |
Multilayer Varistor Construction & Dimensions:
| Size EIA (EIAJ) | 0402 (1005) |
| Symbol | Inches | Millimeters |
| L | 0.038±0.005 | 0.96±0.12 |
| W | 0.019±0.003 | 0.48±0.0.07 |
| T | 0.020±0.004 | 0.50±0.10 |
| C | 0.010±0.006 | 0.25±0.15 |
General Technical Data:
| Operating Temperature | -40 ~ +85ºC | |
| Storage Temperature | -40 ~ +85ºC | |
| Response Time | <1 ns | |
| Solderability | 245±5ºC, 3±1sec | |
| Solder leach resistance | 260±5ºC, 10±1sec | |
| Taping Package Storage Condition | Storage Temperature | 5 ~ 40ºC | |
| | Relative Humidity | To 65% | |
| | Storage Time | 12 Months max | |
Multilayer Varistor Environmental Performance:
| Item | Specifications | Test Condition | |
| Bias Humidity | △VV / VV ≤ ±10 % | 90%RH, 40ºC, Working Voltage, 1000 hrs | |
| Thermal Shock | △VV / VV ≤ ±10 % | -40ºC to 85ºC, 30 min. cycle, 5 cycles | |
| Full Load Voltage | △VV / VV ≤ ±10 % | Working Voltage, 85ºC,1000 hrs | |
Multilayer Varistor Carrier Tape Dimension:
| Size EIA (EIAJ) | 0402 (1005) |
| Symbol | Inches | Millimeters |
| A | 0.315±0.012 | 8.00±0.30 |
| B | 0.138±0.002 | 3.50±0.05 |
| C | 0.069±0.002 | 1.75±0.05 |
| D0 | 0.061±0.002 | 1.55±0.05 |
| P0 | 0.157±0.004 | 4.00±0.10 |
| P1 | 0.079±0.002 | 2.00±0.05 |
| P2 | 0.079±0.002 | 2.00±0.05 |
| W | 0.023±0.001 | 0.59±0.03 |
| L | 0.044±0.001 | 1.12±0.03 |
| T | 0.024±0.001 | 0.60±0.03 |
Quantity of Products in the Taping Package:
| SIZE EIA (EIAJ) | 0402 (1005) |
| Standard Packing Quantity (PCS / reel) | 10,000 |
