SOCAY Uni-directional TVS Diode SMAJ22A 400W Peak Power Capability for Consumer Electronic Applications

Name: SOCAY Unidirectional TVS Diode SMAJ22A 400W Peak Power Capability for Consumer Electronic Applications
Brand: SOCAY
Price: 1 USD

Brand Name : SOCAY

Model Number : SMAJ22A

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 5000PCS

Price : Negotiable

Delivery Time : 5-8 work days

SMAJ22A Name : TVS Diodes

SMAJ22A Package Type : DO-214AC/SMA

SMAJ22A Vrwm : 22.0V

SMAJ22A Vbr@It (Min.) : 24.4V

SMAJ22A Vbr@It (Max.) : 26.9V

SMAJ22A It : 1mA

SMAJ22A Vc@Ipp : 35.5V

SMAJ22A Ipp : 11.27A

SMAJ22A Ir@Vrwm : 5μA

SMAJ22A Storage Temperature Range : -55 to +150 ℃

Contact Now

SOCAY Uni-directional TVS Diode SMAJ22A 400W Peak Power Capability for Consumer Electronic Applications

Uni-directional TVS Diode SMAJ22A DATASHEET: SMAJ_v2207.1.pdf

Uni-directional TVS Diode SMAJ22A Description:

The Uni-directional TVS Diode SMAJ22A is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Uni-directional TVS Diode SMAJ22A is ideal for the protection of I/O interfaces, V_CC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

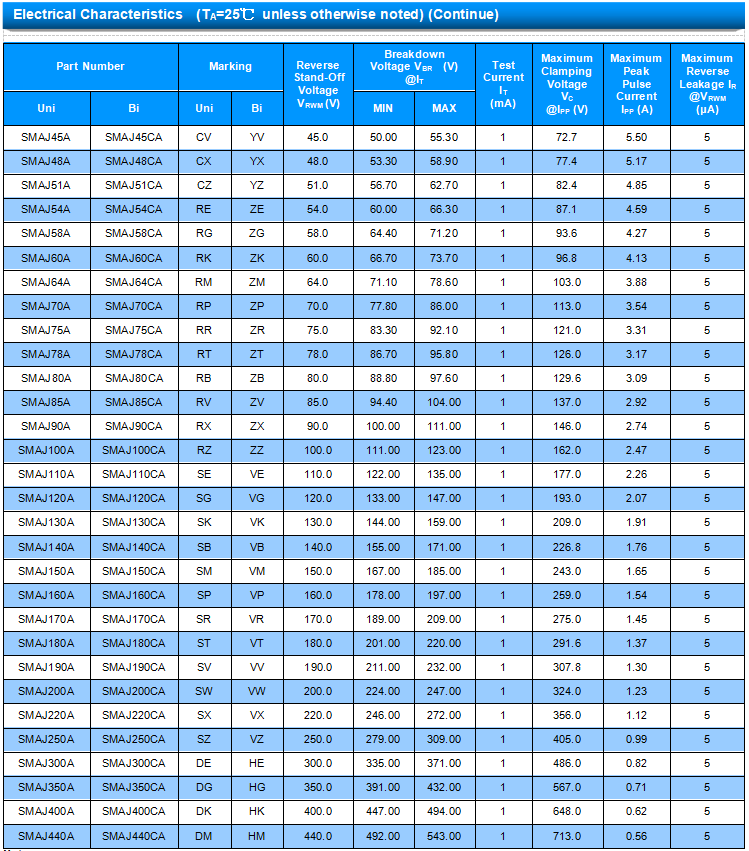

Uni-directional TVS Diode SMAJ22A Electrical Characteristics:

TVS Diode Part Number		TVS Diode Marking		TVS Diode Reverse Stand-Off Voltage VRWM(V)	TVS Diode Breakdown Voltage VBR (V) @IT		TVS Diode Test Current IT (mA)	TVS Diode Maximum Clamping Voltage VC @IPP (V)	TVS Diode Maximum Peak Pulse Current IPP (A)	TVS Diode Maximum Reverse Leakage IR @VRWM (μA)
Uni	Bi	Uni	Bi		MIN	MAX
SMAJ3.3A	—	A1	—	3.3	4.10	--	1	8.0	50.00	600
SMAJ5.0A	SMAJ5.0CA	AE	WE	5.0	6.40	7.00	10	9.2	43.48	800
SMAJ6.0A	SMAJ6.0CA	AG	WG	6.0	6.67	7.37	10	10.3	38.83	800
SMAJ6.5A	SMAJ6.5CA	AK	WK	6.5	7.22	7.98	10	11.2	35.71	500
SMAJ7.0A	SMAJ7.0CA	AM	WM	7.0	7.78	8.60	10	12.0	33.33	200
SMAJ7.5A	SMAJ7.5CA	AP	WP	7.5	8.33	9.21	1	12.9	31.01	100
SMAJ8.0A	SMAJ8.0CA	AR	WR	8.0	8.89	9.83	1	13.6	29.41	50
SMAJ8.5A	SMAJ8.5CA	AT	WT	8.5	9.44	10.40	1	14.4	27.78	10
SMAJ9.0A	SMAJ9.0CA	AV	WV	9.0	10.00	11.10	1	15.4	25.97	5
SMAJ10A	SMAJ10CA	AX	WX	10.0	11.10	12.30	1	17.0	23.53	5
SMAJ11A	SMAJ11CA	AZ	WZ	11.0	12.20	13.50	1	18.2	21.98	5
SMAJ12A	SMAJ12CA	BE	XE	12.0	13.30	14.70	1	19.9	20.10	5
SMAJ13A	SMAJ13CA	BG	XG	13.0	14.40	15.90	1	21.5	18.60	5
SMAJ14A	SMAJ14CA	BK	XK	14.0	15.60	17.20	1	23.2	17.24	5
SMAJ15A	SMAJ15CA	BM	XM	15.0	16.70	18.50	1	24.4	16.39	5
SMAJ16A	SMAJ16CA	BP	XP	16.0	17.80	19.70	1	26.0	15.38	5
SMAJ17A	SMAJ17CA	BR	XR	17.0	18.90	20.90	1	27.6	14.49	5
SMAJ18A	SMAJ18CA	BT	XT	18.0	20.00	22.10	1	29.2	13.70	5
SMAJ19A	SMAJ19CA	BB	XB	19.0	21.10	23.30	1	30.8	13.00	5
SMAJ20A	SMAJ20CA	BV	XV	20.0	22.20	24.50	1	32.4	12.35	5
SMAJ22A	SMAJ22CA	BX	XX	22.0	24.40	26.90	1	35.5	11.27	5

SOCAY Uni-directional TVS Diode SMAJ22A 400W Peak Power Capability for Consumer Electronic Applications

SOCAY Uni-directional TVS Diode SMAJ22A 400W Peak Power Capability for Consumer Electronic Applications Images
