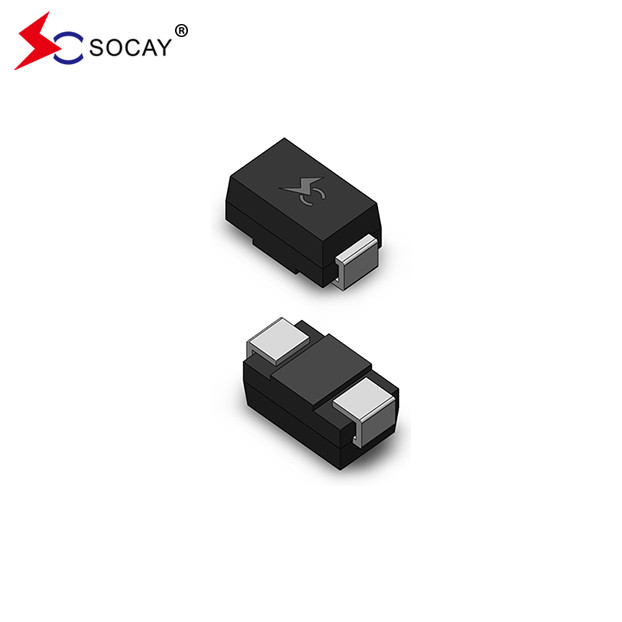

TVS Diode SMAJ12CA Ideal for the Protection of I/O Interfaces, Bi-directional Transient Voltage Suppressor
TVS Diode SMAJ12CA DATASHEET: SMAJ_v2207.1.pdf
TVS Diode SMAJ12CA Description:
series TVS transient suppression diode products adopt standard surface mount SMA packaging and have a peak rated power of 400W. The product has extremely fast response time (sub-nanosecond) and very high stability. Designed specifically for the protection of various interfaces in electronic circuit applications from transient voltages caused by lightning strikes and other transient voltage events.
| SMAJ12CA Part Number | SMAJ12CA Marking | Reverse Stand-Off Voltage VRWM(V) | Breakdown Voltage VBR (V) @IT | Test Current IT (mA) | Maximum Clamping Voltage VC @IPP (V) | Maximum Peak Pulse Current IPP (A) | Maximum Reverse Leakage IR @VRWM (μA) |
| Uni | Bi | Uni | Bi | | MIN | MAX | | | | |
| SMAJ12A | SMAJ12CA | BE | XE | 12.0 | 13.30 | 14.70 | 1 | 19.9 | 20.10 | 5 |

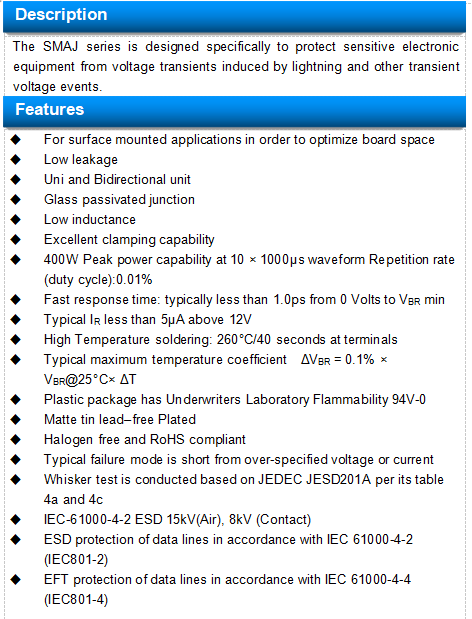

Product Features
Low profile package
Ideal for automated placement
400 Watt peak pulse power capability with a 10/1000μs waveform
For surface mounted applicatons to optimize board space
Excellent clamping capability
Very fast response time
Low incremental surge resistance
Power supply protection
Automotive application
Industrial application
Power management
SOCAY's main products include a full range of Ceramic Gas Discharge Tubes (GDT), Transient Suppression Diodes (TVS Diodes), ESD Suppressor, Thyristor Surge Suppressors (TSS), Spark Gap Protectors (SPG), Varistors (MOV), Chip Varistors (MLV), PTC Resettable Fuse, Negative Temperature Coefficient thermistors (NTC Thermistors), Chip Bead, Schottky Diodes , Zener Diode, etc. From circuit design to product testing (and provide test reports), we will provide you with one-stop services in the field of circuit protection. With excellent quality and service, SOCAY has won extensive praise from customers and respect from the industry.
|
|

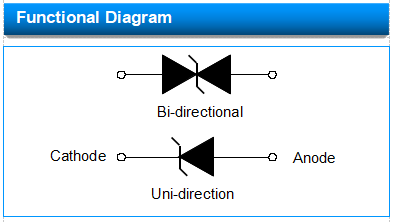

TVS Diode SMAJ12CA Ideal for the Protection of I/O Interfaces, Bi-directional Transient Voltage Suppressor Images
|
