Low Insertion Loss GDT Tube SC2E5-230LSMD SMD Pacakage 1.0pF

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

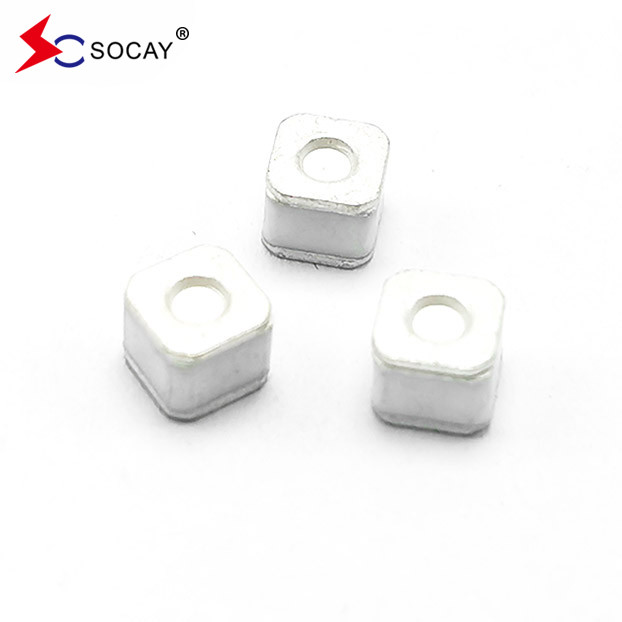

Low Insertion Loss GDT Tube SC2E5-230LSMD SMD Pacakage 1.0pF

  • 1
  • 2

Brand Name : SOCAY

Model Number : SC2E5-230LSMD

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : Gas Discharge Tube

Size : 5*5*4.2mm

DC Spark-over Voltage @100V/μs : 230V±20%

Max. Spark-over Impulse Voltage @100V/μs : 600V

Max. Spark-over Impulse Voltage @1KV/μs : 700V

Min. Insulation Resistance : 1GΩ (@50V DC)

Max. Capacitance : 1.0pF

Arc Voltage @1A : 15V

Nom.Max. Impulse Discharge Current Impulse Discharge Current : 5KA

Operating Temperature : -40°C~+90°C

Storage Temperature : -40°C~+90°C

Max. Impulse Discharge Current : 10KA

Nom. Alternating Discharge Current : 5A

Impulse Life : 100A

Contact Now

Low Insertion Loss Gas Discharge Tube SC2E5-230LSMD, SMD Pacakage 1.0pF

DATASHEET: SC2E5-SMD_v2110.1.pdf

Part Number

DC

Spark-over Voltage

Maximum

Impulse Spark-over

Voltage

 Minimum Insulation Resistance Maximum Capacitance Arc Voltage Service Life

Nominal

Impulse Discharge Current

 Max Impulse Discharge Current Nominal Alternating Discharge Current

Impulse

Life
@100V/S @100V/μs @1KV/μs @1MHz @1A

@8/20μs

±5 times

@8/20μs

1 time

@50Hz

1 Sec

10 times

@10/1000μs

300 times
SC2E5-230LSMD 230V±20% ＜600V ＜700V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-300LSMD 300V±20% ＜700V ＜800V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-350LSMD 350V±20% ＜700V ＜800V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-420LSMD 420V±20% ＜800V ＜950V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-470LSMD 470V±20% ＜900V ＜1000V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-600LSMD 600V±20% ＜1100V ＜1200V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A
SC2E5-800LSMD 800V±20% ＜1200V ＜1400V 1 GΩ (at 100V DC) ＜1.0pF ~20V 5KA 10KA 5A 100A

Notes:

  • Terms in accordance with ITU-T K.12 and GB/T 9043-2008
  • At delivery AQL 0.65 level Ⅱ, DIN ISO 2859


Descriptions:

Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems -with their high-grade but sensitive electronic circuits - be protected by arresters. They are thus fitted at the input of the power supply system together with varistors and at the connection points to telecommunication lines. They have become equally indispensable for protecting base stations in mobile telephone systems as well as extensive cable television (CATV) networks with their repeaters and distribution systems.

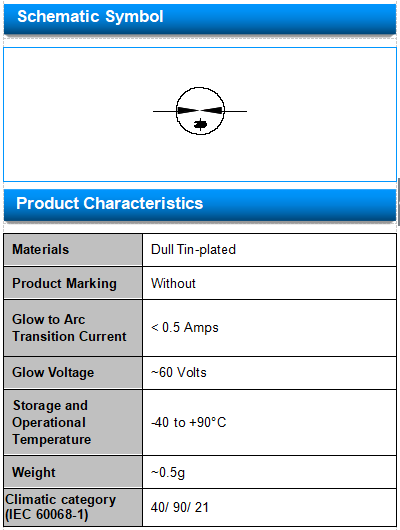

Low Insertion Loss GDT Tube SC2E5-230LSMD SMD Pacakage 1.0pF

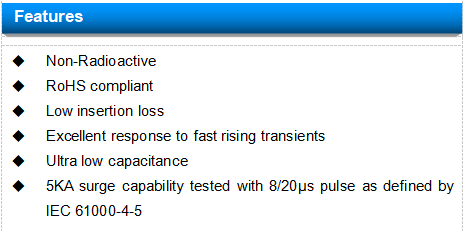

Low Insertion Loss GDT Tube SC2E5-230LSMD SMD Pacakage 1.0pF



Applications:

Low Insertion Loss GDT Tube SC2E5-230LSMD SMD Pacakage 1.0pF

  • Communication equipment
  • CATV equipment
  • Test equipment
  • Data lines
  • Power supplies
  • Telecom SLIC protection
  • Broadband equipment
  • ADSL equipment, including ADSL2+
  • XDSL equipment
  • Satellite and CATV equipment

  • Consumer electronics
