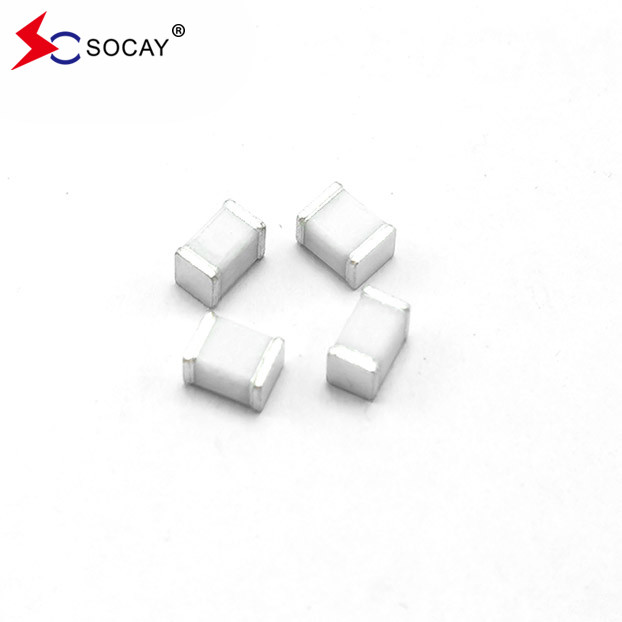

1.0pF 230V Gas Discharge Tube SC1812-230CSMD, for Protecting Power Supplies
DATASHEET: SC1812_v2106.1.pdf
Classification
Surface Mount(package size):1206,1210,1812
DIP:2-Electrode,3-Electrode
DC Voltage:75V~800V
High DC Voltage :1000V~6000V
Current:0.5KA~20KA
Response Time≤100NS,SWITH components.
| Part Number | DC Spark-over Voltage | Maximum Impulse Spark-over Voltage | Minimum Insulation Resistance | Maximum Capacitance | Arc Voltage | Nominal Impulse Discharge Current |
| | @100V/S | @100V/μs | @1KV/μs | | @1MHz | @1A | @8/20μs ±5 times |
| SC1812-230CSMD | 230V±20% | ＜600V | ＜750V | 1 GΩ (at 100V DC) | ＜1.0pF | ~15V | 2 KA |
| SC1812-300CSMD | 300V±20% | ＜800V | ＜900V | 1 GΩ (at 100V DC) | ＜1.0pF | ~15V | 2 KA |
| SC1812-350CSMD | 350V±20% | ＜800V | ＜900V | 1 GΩ (at 100V DC) | ＜1.0pF | ~15V | 2 KA |
| SC1812-400CSMD | 400V±20% | ＜900V | ＜1000V | 1 GΩ (at 100V DC) | ＜1.0pF | ~15V | 2 KA |
| SC1812-420CSMD | 420V±20% | ＜900V | ＜1000V | 1 GΩ (at 100V DC) | ＜1.0pF | ~15V | 2 KA |
| SC1812-470CSMD | 470V±20% | ＜900V | ＜1000V | 1 GΩ (at 100V DC) | ＜1.0pF | ~15V | 2 KA |
| SC1812-600CSMD | 600V±20% | ＜1100V | ＜1200V | 1 GΩ (at 100V DC) | ＜1.0pF | ~15V | 2 KA |
| Notes: - Terms in accordance with ITU-T K.12 and GB/T 9043-2008
- At delivery AQL 0.65 level Ⅱ, DIN ISO 2859
|

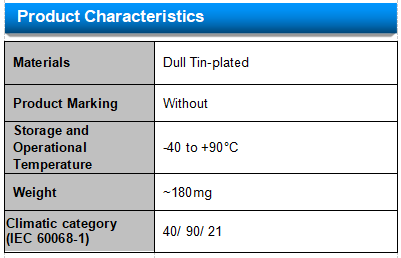

Features:
- Non-Radioactive
- RoHS compliant
- Ultra low capacitance (<1.0 pF)
- UL recognized
- Excellent response to fast rising transients
- 2KA surge capability tested with 8/20μs
