Surface Mount Circuit Protection Components TVS Diodes SM8S30AG AEC-Q101 Qualified

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

Surface Mount Circuit Protection Components TVS Diodes SM8S30AG AEC-Q101 Qualified

Brand Name : SOCAY

Model Number : SM8S30AG

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 500PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : TVS Diodes

Package Type : DO-218AB

Vr : 30V

Ir@Vr @25℃ : 5μA

Ir@Vr @175℃ : 150μA

Vbr@It (Min.) : 33.3V

Vbr@It (Max.) : 36.8V

It : 5mA

Vc@Ipp : 48.4V

Ipp : 136A

Storage Temperature : -55°C to +175°C

Contact Now

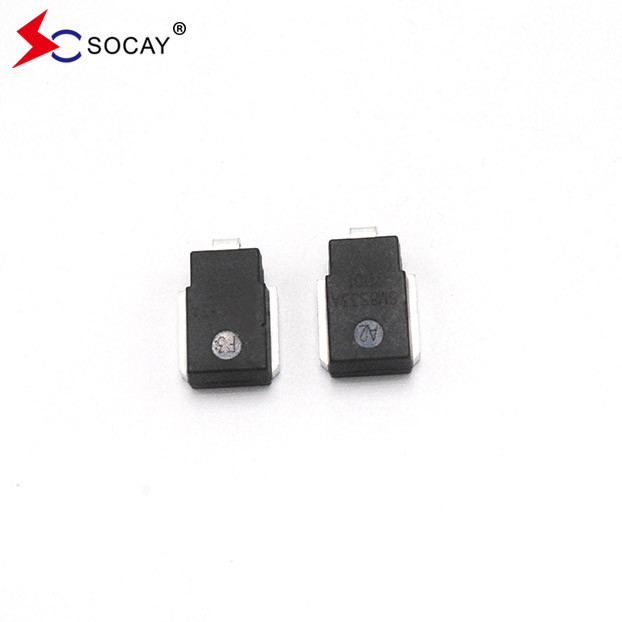

SOCAY TVS Diodes SM8S30AG Meet AEC-Q101 Qualified, Surface Mount TVS

DATASHEET: SM8SXXG Series_v2309.1.pdf

Description:
The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Part Number

Working Peak

Reverse

Voltage VRWM

(V)

Breakdown

Voltage

VBR (V)

Test Current

IT

(mA)

Maximum Reverse Leakage IR @ VRWM

(µA)

Maximum

IR @ VRWM TJ=175℃

(µA)

Maximum Reverse Surge Current

IPP (A) ①

Maximum Clamping Voltage

VC @ IPP

(V)

UniBi Min.Max.
SM8S30AGSM8S30CAG30.033.336.85.01015013648.4
SM8S33AGSM8S33CAG33.036.740.65.01015012453.3
SM8S36AGSM8S36CAG36.040.044.25.01015011458.1
SM8S40AGSM8S40CAG40.044.449.15.01015010264.5
SM8S43AGSM8S43CAG43.047.852.85.01015095.169.4
SM8S45AGSM8S45CAG45.050.055.35.01015090.872.7
SM8S48AGSM8S48CAG48.053.358.95.01015085.377.4
SM8S51AGSM8S51CAG51.056.762.75.01015080.182.4
SM8S54AGSM8S54CAG54.060.066.35.01015075.887.1
SM8S58AGSM8S58CAG58.064.471.25.01015070.593.6
SM8S60AGSM8S60CAG60.066.773.75.01015068.296.8
SM8S64AGSM8S64CAG64.071.178.65.01015064.1103.0
SM8S70AGSM8S70CAG70.077.886.05.01015058.4113.0
SM8S75AGSM8S75CAG75.083.392.15.01015054.5121.0
SM8S78AGSM8S78CAG78.086.795.85.01015052.4126.0
SM8S85AGSM8S85CAG85.094.4104.05.01015048.2137.0

Notes:
1. Surge current waveform is defined at 10/1000μS waveform.
2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per
minute maximum.



Surface Mount Circuit Protection Components TVS Diodes SM8S30AG AEC-Q101 Qualified






































Features:
Optimized glass passivated chip.
TJ=175℃ capability suitable for high reliability and automotive requirement.
6600W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01 %.
Meet ISO7637-2 5a/5b and ISO 16750 load dump test (varied by test condition).
Meet AEC-Q101 qualified.
Low leakage current.
Low forward voltage drop.
Excellent clamping capability.
Very fast response time.
RoHS compliant.
Application:
Automotive Protection.
