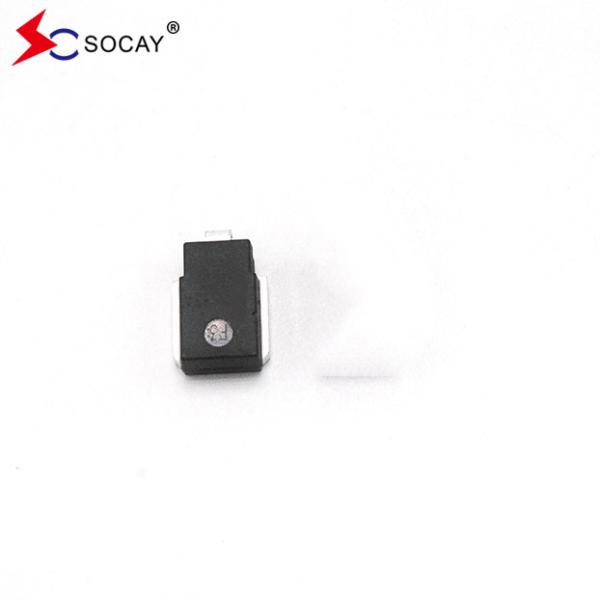

Automotive Protection TVS Diodes SM8S18CAG Peak Pulse Power Dissipation 6600W

Brand Name : SOCAY

Model Number : SM8S18CAG

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 500PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : TVS Diodes

Package Type : DO-218AB

Vr : 18V

Ir@Vr @25℃ : 5μA

Ir@Vr @175℃ : 150μA

Vbr@It (Min.) : 20.0V

Vbr@It (Max.) : 22.1V

It : 5mA

Vc@Ipp : 29.2V

Ipp : 226A

Storage Temperature : -55°C to +175°C

Contact Now

TVS Diodes SM8S18CAG, Peak Pulse Power Dissipation 6600W, Protect Sensitive Electronic Equipment

DATASHEET: SM8SXXG Series_v2309.1.pdf

Automotive Protection TVS Diodes SM8S18CAG Peak Pulse Power Dissipation 6600W

Description:

Part Number

Working Peak

Reverse

Voltage VRWM

(V)

Breakdown

Voltage

VBR (V)

Test Current

IT

(mA)

Maximum Reverse Leakage IR @ VRWM

(µA)

Maximum

IR @ VRWM TJ=175℃

(µA)

Maximum Reverse Surge Current

IPP (A) ①

Maximum Clamping Voltage

VC @ IPP

(V)
Uni Bi Min. Max.
SM8S18AG SM8S18CAG 18.0 20.0 22.1 5.0 10 150 226 29.2

Notes:

1. Surge current waveform is defined at 10/1000μS waveform.

2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per

minute maximum.

Features:

Optimized glass passivated chip.

TJ=175℃ capability suitable for high reliability and automotive requirement.

6600W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01 %.

Meet ISO7637-2 5a/5b and ISO 16750 load dump test (varied by test condition).

Meet AEC-Q101 qualified.

Low leakage current.

Low forward voltage drop.

Excellent clamping capability.

Very fast response time.

RoHS compliant.

Application:

Automotive Protection.


Product Tags:

Automotive TVS Diodes



TVS Diodes 6600W


Automotive Protection TVS Diodes SM8S18CAG Peak Pulse Power Dissipation 6600W Manufactures

Automotive Protection TVS Diodes SM8S18CAG Peak Pulse Power Dissipation 6600W Images
