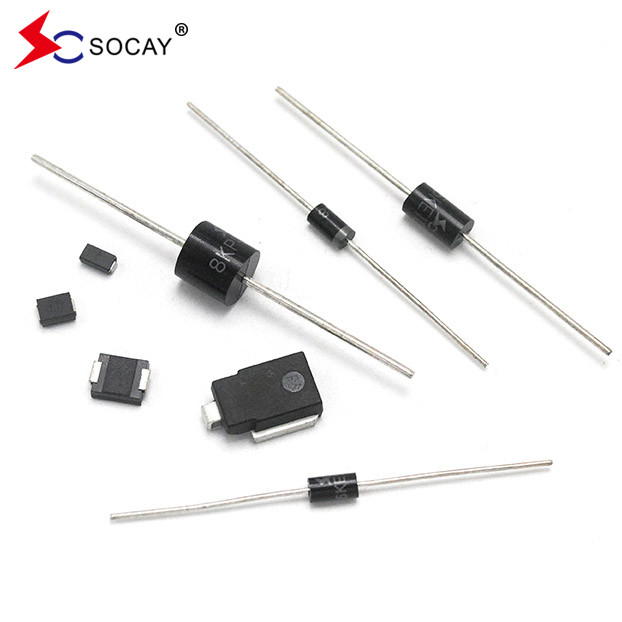

18V Uni Directional Transient Voltage Suppression Diode SM8S18AG DO-218AB Package

Brand Name : SOCAY

Model Number : SM8S18AG

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 500PCS

Price : Negotiable

Delivery Time : 5-8 work days

Package Type : DO-218AB

Vr : 18V

Ir@Vr @25℃ : 5μA

Ir@Vr @175℃ : 150μA

Vbr@It (Min.) : 20.0V

Vbr@It (Max.) : 22.1V

It : 5mA

Vc@Ipp : 29.2V

Ipp : 226A

Contact Now

18V Uni-Directional Transient Voltage Suppressors SM8S18AG, 32.4V Clamping Voltage

DATASHEET: SM8SXXG Series_v2309.1.pdf

18V Uni Directional Transient Voltage Suppression Diode SM8S18AG DO-218AB Package

Description:

The SM8S series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

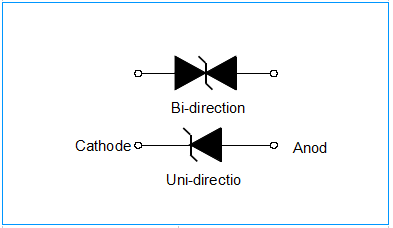

Part Number

Working Peak

Reverse

Voltage VRWM

(V)

Breakdown

Voltage

VBR (V)

Test Current

IT

(mA)

Maximum Reverse Leakage IR @ VRWM

(µA)

Maximum

IR @ VRWM TJ=175℃

(µA)

Maximum Reverse Surge Current

IPP (A) ①

Maximum Clamping Voltage

VC @ IPP

(V)
Uni Bi Min. Max.
SM8S10AG SM8S10CAG 10.0 11.1 12.3 5.0 15 250 388 17.0
SM8S11AG SM8S11CAG 11.0 12.2 13.5 5.0 10 150 363 18.2
SM8S12AG SM8S12CAG 12.0 13.3 14.7 5.0 10 150 332 19.9
SM8S13AG SM8S13CAG 13.0 14.4 15.9 5.0 10 150 307 21.5
SM8S14AG SM8S14CAG 14.0 15.6 17.2 5.0 10 150 284 23.2
SM8S15AG SM8S15CAG 15.0 16.7 18.5 5.0 10 150 270 24.4
SM8S16AG SM8S16CAG 16.0 17.8 19.7 5.0 10 150 254 26.0
SM8S17AG SM8S17CAG 17.0 18.9 20.9 5.0 10 150 239 27.6
SM8S18AG SM8S18CAG 18.0 20.0 22.1 5.0 10 150 226 29.2

Notes:

1. Surge current waveform is defined at 10/1000μS waveform.

2. For all types maximum VF = 1.8 V at IF = 100 A measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per

minute maximum.

Application:

Automotive Protection.
