Zinc Metal Oxide Varistor Epoxy Resin Film 7D471K Varistor Resistor 470V
DATASHEET: 07D Series_v2306.1.pdf
| Type Number | Maximum Allowable voltage | Varistor Voltage | Maximum Clamping Voltage | Withstanding Surge Current | Maximum Energy (10/1000μs) | Rated Power | Typical Capacitance (Reference) |
| Standard | High Surge | VAC (V) | VDC (V) | V1mA (V) | IP (A) | VC (V) | I(A) Standard | I(A) High Surge | (J) Standard | (J) High Surge | (W) | @1KHZ (pf) |
| 1 Time | 2 Times | 1 Time | 2 Times |
| 07D180K | 07D180KJ | 11 | 14 | 18(15~21.6) | 2.5 | 36 | 250 | 125 | 500 | 250 | 0.9 | 2.0 | 0.02 | 2800 |
| 07D220K | 07D220KJ | 14 | 18 | 22(19.5~26) | 2.5 | 43 | 250 | 125 | 500 | 250 | 1.1 | 2.4 | 0.02 | 2300 |
| 07D270K | 07D270KJ | 17 | 22 | 27(24~30) | 2.5 | 53 | 250 | 125 | 500 | 250 | 1.4 | 3.0 | 0.02 | 1800 |
| 07D330K | 07D330KJ | 20 | 26 | 33(29.5~36.5) | 2.5 | 66 | 250 | 125 | 500 | 250 | 1.7 | 3.5 | 0.02 | 1500 |
| 07D390K | 07D390KJ | 25 | 31 | 39(35~43) | 2.5 | 77 | 250 | 125 | 500 | 250 | 2.1 | 4.0 | 0.02 | 1300 |
| 07D470K | 07D470KJ | 30 | 38 | 47(42~54) | 2.5 | 93 | 250 | 125 | 500 | 250 | 2.5 | 5.0 | 0.02 | 1100 |
| 07D560K | 07D560KJ | 35 | 45 | 56(50~62) | 2.5 | 110 | 250 | 125 | 500 | 250 | 3.1 | 6.0 | 0.02 | 900 |
| 07D680K | 07D680KJ | 40 | 56 | 68(61~75) | 2.5 | 135 | 250 | 125 | 500 | 250 | 3.6 | 7.0 | 0.02 | 740 |
| 07D820K | 07D820KJ | 50 | 65 | 82(74~90) | 10 | 135 | 1200 | 600 | 1750 | 1250 | 5.5 | 10.0 | 0.25 | 600 |
| 07D101K | 07D101KJ | 60 | 85 | 100(90~110) | 10 | 165 | 1200 | 600 | 1750 | 1250 | 6.5 | 12.0 | 0.25 | 500 |
| 07D121K | 07D121KJ | 75 | 100 | 120(108~132) | 10 | 200 | 1200 | 600 | 1750 | 1250 | 7.8 | 13.0 | 0.25 | 420 |
| 07D151K | 07D151KJ | 95 | 125 | 150(135~165) | 10 | 250 | 1200 | 600 | 1750 | 1250 | 9.7 | 13.0 | 0.25 | 330 |
| 07D181K | 07D181KJ | 115 | 150 | 180(162~198) | 10 | 300 | 1200 | 600 | 1750 | 1250 | 11.7 | 16.0 | 0.25 | 280 |
| 07D201K | 07D201KJ | 130 | 170 | 200(180~220) | 10 | 340 | 1200 | 600 | 1750 | 1250 | 13.0 | 17.0 | 0.25 | 250 |
| 07D221K | 07D221KJ | 140 | 180 | 220(198~242) | 10 | 360 | 1200 | 600 | 1750 | 1250 | 14.0 | 19.0 | 0.25 | 230 |
| 07D241K | 07D241KJ | 150 | 200 | 240(216~264) | 10 | 395 | 1200 | 600 | 1750 | 1250 | 15.0 | 21.0 | 0.25 | 210 |
| 07D271K | 07D271KJ | 175 | 225 | 270(243~297) | 10 | 455 | 1200 | 600 | 1750 | 1250 | 18.0 | 24.0 | 0.25 | 185 |
| 07D301K | 07D301KJ | 190 | 250 | 300(270~330) | 10 | 500 | 1200 | 600 | 1750 | 1250 | 20.0 | 26.0 | 0.25 | 165 |
| 07D331K | 07D331KJ | 210 | 275 | 330(297~363) | 10 | 550 | 1200 | 600 | 1750 | 1250 | 23.0 | 28.0 | 0.25 | 150 |
| 07D361K | 07D361KJ | 230 | 300 | 360(324~396) | 10 | 595 | 1200 | 600 | 1750 | 1250 | 25.0 | 32.0 | 0.25 | 140 |
| 07D391K | 07D391KJ | 250 | 320 | 390(351~429) | 10 | 650 | 1200 | 600 | 1750 | 1250 | 25.0 | 35.0 | 0.25 | 130 |
| 07D431K | 07D431KJ | 275 | 350 | 430(387~473 | 10 | 710 | 1200 | 600 | 1750 | 1250 | 28.0 | 40.0 | 0.25 | 115 |
| 07D471K | 07D471KJ | 300 | 385 | 470(423~517) | 10 | 775 | 1200 | 600 | 1750 | 1250 | 30.0 | 42.0 | 0.25 | 105 |
| 07D511K | 07D511KJ | 320 | 415 | 510(459~561) | 10 | 845 | 1200 | 600 | 1750 | 1250 | 30.0 | 45.0 | 0.25 | 100 |
| 07D561K | 07D561KJ | 350 | 460 | 560(504~616) | 10 | 925 | 1200 | 600 | 1750 | 1250 | 30.0 | 49.0 | 0.25 | 90 |
| 07D621K | 07D621KJ | 385 | 505 | 620(558~682) | 10 | 1025 | 1200 | 600 | 1750 | 1250 | 33.0 | 55.0 | 0.25 | 80 |
| 07D681K | 07D681KJ | 420 | 560 | 680(612~748) | 10 | 1120 | 1200 | 600 | 1750 | 1250 | 33.0 | 60.0 | 0.25 | 75 |
| 07D751K | 07D751KJ | 460 | 615 | 750(675~825) | 10 | 1240 | 1200 | 600 | 1750 | 1250 | 67.2 | 65.0 | 0.25 | 70 |
| 07D781K | 07D781KJ | 485 | 640 | 780(702~858) | 10 | 1290 | 1200 | 600 | 1750 | 1250 | 67.2 | 65.0 | 0.25 | 70 |
| 07D821K | 07D821KJ | 510 | 670 | 820(738~902) | 10 | 1355 | 1200 | 600 | 1750 | 1250 | 67.2 | 70.0 | 0.25 | 60 |
Remark: Voltage>33V, K is ±10%
Description:
The 07D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge ratings than ever before available in such small discs.
The maximum peak surge current rating can reach up to 1.75KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients and abnormal fast transients from the power source.
Features:
| Material | No Radioactive Material |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -55℃ ~ +125℃ |
| Body | Nickel Plated |
| Leads | Tin Plated |
| Devices with No lead | Nickel Plated |
SOCAY's main products include a full range of Ceramic Gas Discharge Tubes (GDT), Transient Suppression Diodes (TVS Diodes), ESD Suppressor, Thyristor Surge Suppressors (TSS), Spark Gap Protectors (SPG), Varistors (MOV), Chip Varistors (MLV), PTC Resettable Fuse, Negative Temperature Coefficient thermistors (NTC Thermistors), Chip Bead, Schottky Diodes , Zener Diode, etc. From circuit design to product testing (and provide test reports), we will provide you with one-stop services in the field of circuit protection. With excellent quality and service, SOCAY has won extensive praise from customers and respect from the industry.
Passive component Characteristic
Product Tags:
|
|

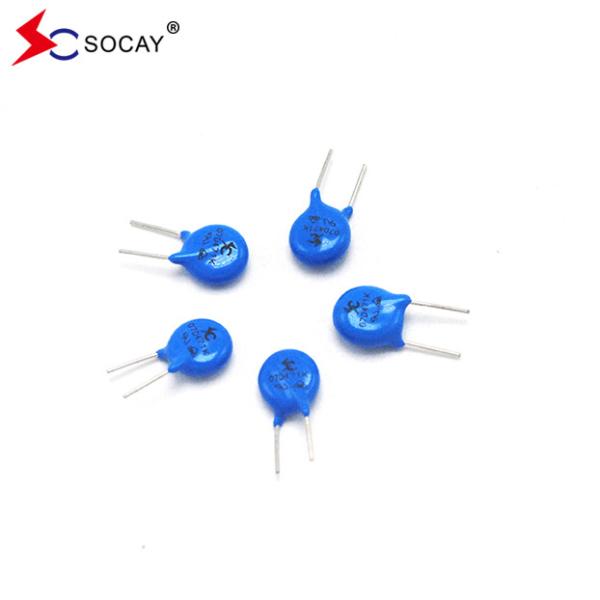

Zinc Metal Oxide Varistor Epoxy Resin Film 7D471K Varistor Resistor 470V Images
|
