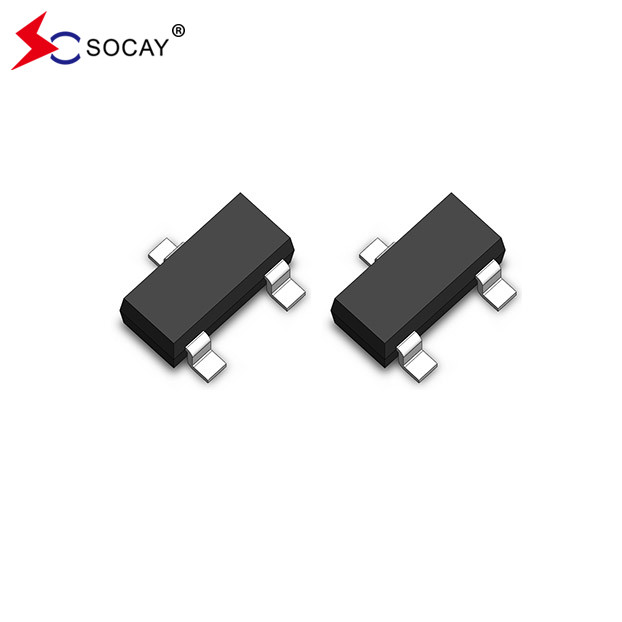

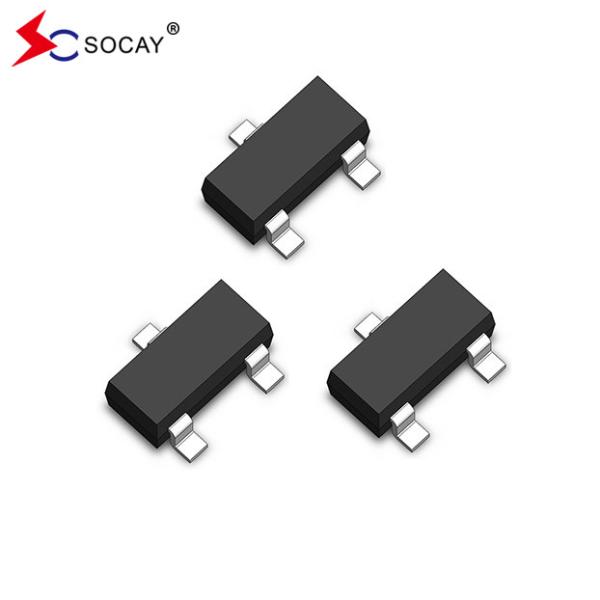

27V Reliable Quality Zener Diode BZX84C27 Electronic Components BOM Service

Zener Diode DATASHEET: BZX84C2V4~BZX84C75(SOT-23)_v2112.1.pdf


Reliable Quality Zener Diode Features:

  • BZX84C27 Planar Die construction
  • 300mW Power Dissipation
  • BZX84C27 Zener Voltages from 2.4V to 75V

  • RoHS compliant / Green EMC



Zener Diode BZX84C27 Absolute Max. Ratings:

BZX84C27 ParameterSymbolValueUnits
Maximum Forward Voltage (Note 2) @ IF=10mAVF0.9V
BZX84C27 Power Dissipation (Note 1)P(AV)300mW
BZX84C27 Operating and Storage TemperatureTJ,TSTG-55 to +150℃
BZX84C27 Peak Forward Surge Surge CurrentIFSM2.0A
BZX84C27 Thermal Resistance Junction to AmbientRJ357℃/W

Note1: Valid provided that device terminals are kept at ambient temperature.
Note 2: Tested with pulses, period=5ms,pulse width =300μs.





Zener Diode BZX84C27 Electrical Features:

Zener Diode Part NumberZener Diode Zener Voltage Range (Note 2)Zener Diode Max. Zener Impedance (Note 3)Max. Reverse Leakage Current
VZ @ IZTZZT @ IZTZZK @ IZKIR @ VR
Nom.(V)Min.(V)Max.(V)(Ω)(mA)(Ω)(mA)(μA)(V)
BZX84C2V42.42.22.610056001501
BZX84C2V72.72.52.910056001201
BZX84C3V03.02.83.29556001101
BZX84C3V33.33.13.5955600151
BZX84C3V63.63.43.8905600151
BZX84C3V93.93.74.1905600131
BZX84C4V34.34.04.6905600131
BZX84C4V74.74.45.0805500132
BZX84C5V15.14.85.4605480122
BZX84C5V65.65.26.0405400112
BZX84C6V26.25.86.6105150134
BZX84C6V86.86.47.215580124
BZX84C7V57.57.07.915580115
BZX84C8V28.27.78.71558010.75
BZX84C9V19.18.59.615510010.56
BZX84C10109.410.620515010.27
BZX84C111110.411.620515010.18
BZX84C121211.412.725515010.18
BZX84C131312.414.130517010.18
BZX84C151513.815.630520010.110.5
BZX84C161615.317.140520010.111.2
BZX84C181816.819.145522510.112.6
BZX84C202018.821.255522510.114.0

Part NumberZener Diode Zener Voltage Range (Note 2)Zener Diode Max. Zener Impedance (Note 3)Zener Diode Max. Reverse Leakage Current
VZ @ IZTZZT @ IZTZZK @ IZKIR @ VR
Nom.(V)Min.(V)Max.(V)(Ω)(mA)(Ω)(mA)(μA)(V)
BZX84C222220.823.355525010.115.4
BZX84C242422.825.670525010.116.8
BZX84C272725.128.98023000.50.118.9
BZX84C303028.032.08023000.50.121.0
BZX84C333331.035.08023250.50.123.1
BZX84C363634.038.09023500.50.125.2
BZX84C393937.041.013023500.50.127.3
BZX84C434340.046.0100270010.132.0
BZX84C474744.050.0170237510.0532.9
BZX84C515148.054.0180240010.0535.7
BZX84C626258.066.021524500.50.0543.4
BZX84C686864.072.0240216000.250.0547.6
BZX84C757570.079.0255217000.250.0552.5

Note 2: Tested with pulses, period=5ms,pulse width =300μs.
Note 3: f=1kHZ.

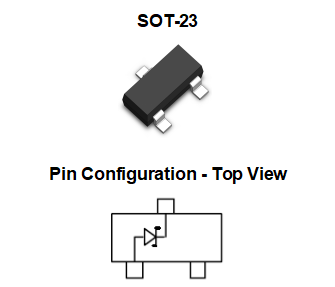

SOT-23 SMD Zener Diode ​BZX84C27 Circuit Diagram:
BZX84C27 Electronic Diode Components BOM Service 27V Diode Zener



SOT-23 Surface Mount Zener Diode BZX84C27 Curves:

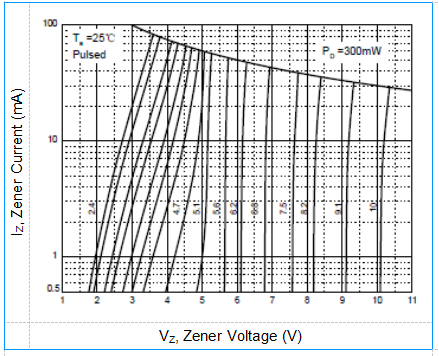

Fig1. Zener Characteristics (VZ Up to 10V)
BZX84C27 Electronic Diode Components BOM Service 27V Diode Zener

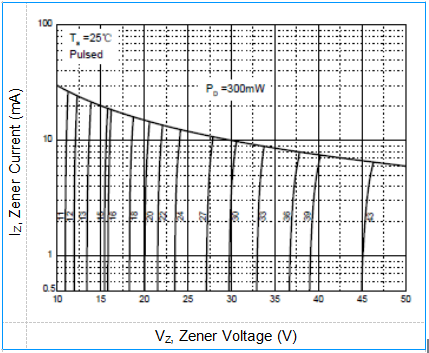

Fig2. Zener Characteristics (11V to 43V)
BZX84C27 Electronic Diode Components BOM Service 27V Diode Zener

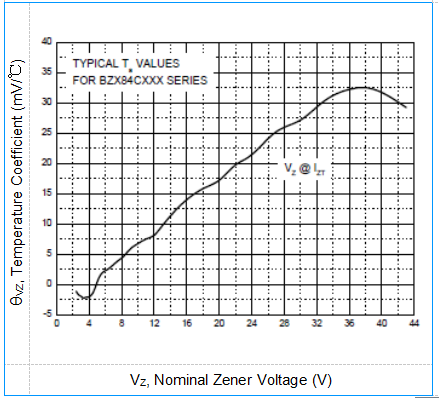

Fig3. Zener Diode Temperature Coefficients
BZX84C27 Electronic Diode Components BOM Service 27V Diode Zener

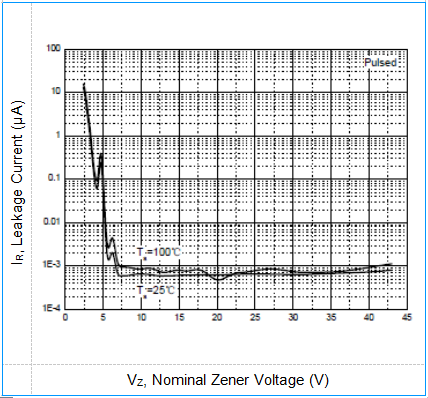

Fig4. Zener Diode Typical Leakage Current
BZX84C27 Electronic Diode Components BOM Service 27V Diode Zener

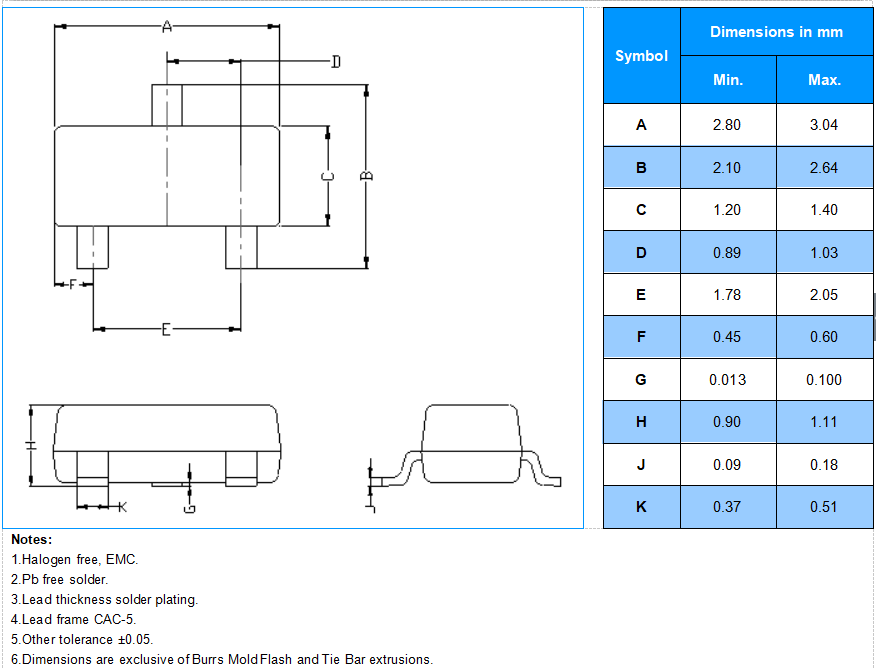

SOT-23 Zener Diode ​BZX84C27 Package Outline:
BZX84C27 Electronic Diode Components BOM Service 27V Diode Zener


SOT-23 Package Zener Diode ​BZX84C27 Quantity:

Zener Diode Part NumberComponent PackageZener Diode Quantity
BZX84C2V4~BZX84C75SOT-23Tape & Reel 3000 PCS / 7” Reel
