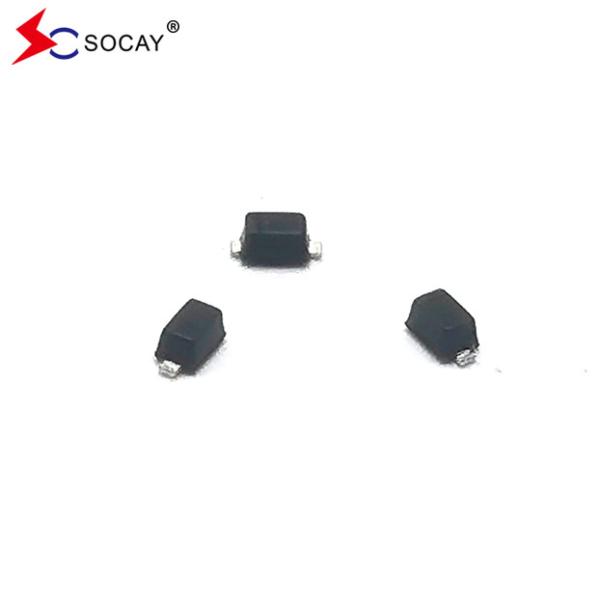

New Original BZX584C27V Reliable Quality SOD-523 Zener Diode Electronic Components
SOD-523 Zener Diode DATASHEET: BZX584C2V4_BZX584C75V(SOD-523)_v2303.1.pdf
SOD-523 Zener Diode Characteristics:
- Constant voltage control is perfect
- It has wide voltage range selection From 2.4V to 75V
- SMD Zener Diode is SOD-523 Thin SMD package
- Adjust to RoHS compliant / Green EMC
- Matte Tin (Sn) Lead finish
- Cathode Band / Device marking
-
Refer to table list
SOD-523 Zener Diode Absolute Max. Ratings (TA=25℃):
| SOD-523 Zener Diode Parameter | Symbol | Value | Units |
| BZX584C27V Power Dissipation | PD | 200 | mW |
| BZX584C27V Junction Temperature | TJ | 150 | ℃ |
| BZX584C27V Storage Temperature | TSTG | -55 to +150 | ℃ |
| Maximum Regulator Current | IZM | PD / VZ | mA |
SOD-523 Zener Diode Electrical Features (TA=25℃):
| Part Number | Zener Diode VZ *1 | IZT | ZZT @ IZT | ZZK @ IZK | IZK | IR | VR |
| Zener Diode | Nom.(V) | Min.(V) | Max.(V) | (mA) | Max.(Ω) | (mA) | Max.(μA) | (V) |
| BZX584C2V4 | 2.4 | 2.2 | 2.6 | 5 | 100 | 600 | 1.0 | 50 | 1.0 |
| BZX584C2V7 | 2.7 | 2.5 | 2.9 | 5 | 100 | 600 | 1.0 | 20 | 1.0 |
| BZX584C3V0 | 3.0 | 2.8 | 3.2 | 5 | 95 | 600 | 1.0 | 10 | 1.0 |
| BZX584C3V3 | 3.3 | 3.1 | 3.5 | 5 | 95 | 600 | 1.0 | 5 | 1.0 |
| BZX584C3V6 | 3.6 | 3.4 | 3.8 | 5 | 90 | 600 | 1.0 | 5 | 1.0 |
| BZX584C3V9 | 3.9 | 3.7 | 4.1 | 5 | 90 | 600 | 1.0 | 3 | 1.0 |
| BZX584C4V3 | 4.3 | 4.0 | 4.6 | 5 | 90 | 600 | 1.0 | 3 | 1.0 |
| BZX584C4V7 | 4.7 | 4.4 | 5.0 | 5 | 80 | 500 | 1.0 | 3 | 2.0 |
| BZX584C5V1 | 5.1 | 4.8 | 5.4 | 5 | 60 | 480 | 1.0 | 2 | 2.0 |
| BZX584C5V6 | 5.6 | 5.2 | 6.0 | 5 | 40 | 400 | 1.0 | 1 | 2.0 |
| BZX584C6V2 | 6.2 | 5.8 | 6.6 | 5 | 10 | 150 | 0.5 | 3 | 4.0 |
| BZX584C6V8 | 6.8 | 6.4 | 7.2 | 5 | 15 | 80 | 0.5 | 2 | 4.0 |
| BZX584C7V5 | 7.5 | 7.0 | 7.9 | 5 | 15 | 80 | 0.5 | 1 | 5.0 |
| BZX584C8V2 | 8.2 | 7.7 | 8.7 | 5 | 15 | 80 | 0.5 | 0.7 | 5.0 |
| BZX584C9V1 | 9.1 | 8.5 | 9.6 | 5 | 15 | 100 | 0.5 | 0.5 | 6.0 |
| BZX584C10V | 10 | 9.4 | 10.6 | 5 | 20 | 150 | 1.0 | 0.2 | 7.0 |
| BZX584C11V | 11 | 10.4 | 11.6 | 5 | 20 | 150 | 1.0 | 0.1 | 8.0 |
| BZX584C12V | 12 | 11.4 | 12.7 | 5 | 25 | 150 | 1.0 | 0.1 | 8.0 |
| BZX584C13V | 13 | 12.4 | 14.1 | 5 | 30 | 170 | 1.0 | 0.1 | 8.0 |
| BZX584C15V | 15 | 13.8 | 15.6 | 5 | 30 | 200 | 1.0 | 0.1 | 10.5 |
| BZX584C16V | 16 | 15.3 | 17.1 | 5 | 40 | 200 | 1.0 | 0.1 | 11.2 |
| BZX584C18V | 18 | 16.8 | 19.1 | 5 | 45 | 225 | 1.0 | 0.1 | 12.6 |
| BZX584C20V | 20 | 18.8 | 21.2 | 5 | 55 | 225 | 1.0 | 0.1 | 14.0 |
| BZX584C22V | 22 | 20.8 | 23.3 | 5 | 55 | 250 | 1.0 | 0.1 | 15.4 |
| BZX584C24V | 24 | 22.8 | 25.6 | 5 | 70 | 250 | 1.0 | 0.1 | 16.8 |
| BZX584C27V | 27 | 25.1 | 28.9 | 2 | 80 | 300 | 0.5 | 0.1 | 18.9 |
| BZX584C30V | 30 | 28.0 | 32.0 | 2 | 80 | 300 | 0.5 | 0.1 | 21.0 |
| BZX584C33V | 33 | 31.0 | 35.0 | 2 | 80 | 325 | 0.5 | 0.1 | 23.1 |
| BZX584C36V | 36 | 34.0 | 38.0 | 2 | 90 | 350 | 0.5 | 0.1 | 25.2 |
| BZX584C39V | 39 | 37.0 | 41.0 | 2 | 130 | 350 | 0.5 | 0.1 | 27.3 |
| BZX584C43V | 43 | 40.0 | 46.0 | 2 | 100 | 700 | 1.0 | 0.1 | 32.0 |
| BZX584C47V | 47 | 44.65 | 49.35 | 2 | 170 | 1000 | 0.25 | 0.1 | 36.0 |
| BZX584C51V | 51 | 48.45 | 53.55 | 2 | 180 | 1300 | 0.25 | 0.1 | 39.0 |
| BZX584C56V | 56 | 53.2 | 58.8 | 2 | 200 | 1400 | 0.25 | 0.1 | 43.0 |
| BZX584C62V | 62 | 58.9 | 65.1 | 2 | 225 | 1400 | 0.25 | 0.1 | 47.0 |
| BZX584C68V | 68 | 64.6 | 71.4 | 2 | 240 | 1600 | 0.25 | 0.1 | 52.0 |
| BZX584C75V | 75 | 71.25 | 78.75 | 2 | 265 | 1700 | 0.25 | 0.1 | 56.0 |
| *1 Pulse width = 10 ms. |
SOD-523 Surface Mount Zener Diode BZX584C27V Circuit Pictures:
SOD-523 Surface Mount Zener Diode BZX584C27V Curves:
Fig1. BZX584C27V Zener Breakdown Characteristic
Fig2. BZX584C27V Zener Breakdown Characteristics
Fig3. BZX584C27V Typical Forward Voltage
Fig4. BZX584C27V Effect of Zener Voltage on Zener Impedance
Fig5. BZX584C27V Typical Capacitance
Fig6. BZX584C27V Typical Leakage Current
Fig7. BZX584C27V Power Derating Curve
SOD-523 Surface Mount Zener Diode BZX584C27V Outline and Dimensions:
SOD-523 Package Zener Diode BZX584C27V Ordering Information:
| Zener Diode Part Number | Component Package | Zener Diode Shipping |
| BZX584C2V4~BZX584C75V | SOD-523 | Tape & Reel 8000 PCS / 7” Reel |
