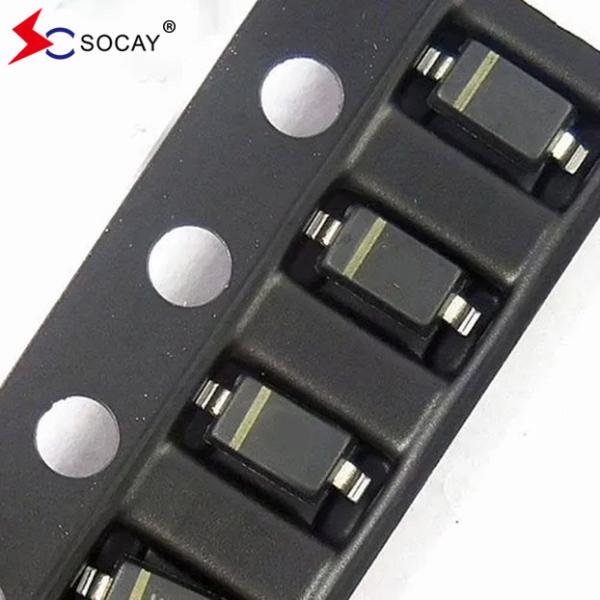

SOCAY 27V 350mW BZT52C27 SOD-123 Package SMD Zener Diode
Zener Diode DATASHEET: BZT52C2V4_BZT52C75(SOD-123)_v2204.1.pdf
Zener Diode Features:
- Planar Die construction
- 350mW Power Dissipation
- Zener Voltages from 2.4~75V
- Ideally Suited for Automated Assembly Processes
- Lead free in compliance with EU RoHS 2.0
- Green molding compound as per IEC 61249 standard
Zener Diode Mechanical Date:
- Case: SOD-123, Molded Plastic
- Terminals: Solderable per MIL-STD-750, Method 2026
- Polarity: See Diagram Below
- Approx. Weight: 0.0004 ounces, 0.01 grams
Zener Diode Maximum Ratings (TA=25℃ unless otherwise specified):
| Zener Diode Parameter | Symbol | Value | Units |
| Zener Diode Power Dissipation (Note 1) | PD | 350 | mW |
| Thermal Resistance from Junction to Ambient | RθJA | 357 | ℃/W |
| Zener Diode Junction Temperature | TJ | 150 | ℃ |
| Zener Diode StorageTemperature | TSTG | -55 to +150 | ℃ |
| Note1: Device mounted on ceramic PCB: 7.6mm x 9.4mm x 0.87mm with pad areas 25mm2 . |
Zener Diode Electrical Characteristics (TA=25℃):
| Part Number | Zener Voltage Range (Note 2) | Maximum Zener Impedance (Note 3) | Maximum Leakage Current (Note 2) |
| | VZ @ IZT | ZZT @ IZT | ZZK @ IZK | IR @ VR |
| | Nom.(V) | Min.(V) | Max.(V) | (Ω) | (mA) | (Ω) | (mA) | (μA) | (V) |
| BZT52C2V4 | 2.4 | 2.20 | 2.60 | 100 | 5.0 | 600 | 1.00 | 50 | 1.0 |
| BZT52C2V7 | 2.7 | 2.50 | 2.90 | 100 | 5.0 | 600 | 1.00 | 20 | 1.0 |
| BZT52C3V0 | 3.0 | 2.80 | 3.20 | 95 | 5.0 | 600 | 1.00 | 10 | 1.0 |
| BZT52C3V3 | 3.3 | 3.10 | 3.50 | 95 | 5.0 | 600 | 1.00 | 5 | 1.0 |
| BZT52C3V6 | 3.6 | 3.40 | 3.80 | 90 | 5.0 | 600 | 1.00 | 5 | 1.0 |
| BZT52C3V9 | 3.9 | 3.70 | 4.10 | 90 | 5.0 | 600 | 1.00 | 3 | 1.0 |
| BZT52C4V3 | 4.3 | 4.00 | 4.60 | 90 | 5.0 | 600 | 1.00 | 3 | 1.0 |
| BZT52C4V7 | 4.7 | 4.40 | 5.00 | 80 | 5.0 | 500 | 1.00 | 3 | 2.0 |
| BZT52C5V1 | 5.1 | 4.80 | 5.40 | 60 | 5.0 | 480 | 1.00 | 2 | 2.0 |
| BZT52C5V6 | 5.6 | 5.20 | 6.00 | 40 | 5.0 | 400 | 1.00 | 1 | 2.0 |
| BZT52C6V2 | 6.2 | 5.80 | 6.60 | 10 | 5.0 | 150 | 1.00 | 3 | 4.0 |
| BZT52C6V8 | 6.8 | 6.40 | 7.20 | 15 | 5.0 | 80 | 1.00 | 2 | 4.0 |
| BZT52C7V5 | 7.5 | 7.00 | 7.90 | 15 | 5.0 | 80 | 1.00 | 1 | 5.0 |
| BZT52C8V2 | 8.2 | 7.70 | 8.70 | 15 | 5.0 | 80 | 1.00 | 0.7 | 5.0 |
| BZT52C9V1 | 9.1 | 8.60 | 9.60 | 15 | 5.0 | 100 | 1.00 | 0.5 | 6.0 |
| BZT52C10 | 10 | 9.40 | 10.60 | 20 | 5.0 | 150 | 1.00 | 0.2 | 7.0 |
| BZT52C11 | 11 | 10.40 | 11.60 | 20 | 5.0 | 150 | 1.00 | 0.1 | 8.0 |
| BZT52C12 | 12 | 11.40 | 12.70 | 25 | 5.0 | 150 | 1.00 | 0.1 | 8.0 |
| BZT52C13 | 13 | 12.40 | 14.10 | 30 | 5.0 | 170 | 1.00 | 0.1 | 8.0 |
| BZT52C15 | 15 | 13.80 | 15.60 | 30 | 5.0 | 200 | 1.00 | 0.1 | 10.5 |
| BZT52C16 | 16 | 15.30 | 17.10 | 40 | 5.0 | 200 | 1.00 | 0.1 | 11.2 |
| BZT52C18 | 18 | 16.80 | 19.10 | 45 | 5.0 | 225 | 1.00 | 0.1 | 12.6 |
| BZT52C20 | 20 | 18.80 | 21.20 | 55 | 5.0 | 225 | 1.00 | 0.1 | 14.0 |
| BZT52C22 | 22 | 20.80 | 23.30 | 55 | 5.0 | 250 | 1.00 | 0.1 | 15.4 |
| BZT52C24 | 24 | 22.80 | 25.60 | 70 | 5.0 | 250 | 1.00 | 0.1 | 16.8 |
| BZT52C27 | 27 | 25.10 | 28.90 | 80 | 2.0 | 300 | 0.50 | 0.1 | 18.9 |
| BZT52C30 | 30 | 28.00 | 32.00 | 80 | 2.0 | 300 | 0.50 | 0.1 | 21.0 |
| BZT52C33 | 33 | 31.00 | 35.00 | 80 | 2.0 | 325 | 0.50 | 0.1 | 23.1 |
| BZT52C36 | 36 | 34.00 | 38.00 | 90 | 2.0 | 350 | 0.50 | 0.1 | 25.2 |
| BZT52C39 | 39 | 37.00 | 41.00 | 130 | 2.0 | 350 | 0.50 | 0.1 | 27.3 |
| BZT52C43 | 43 | 40.00 | 46.00 | 100 | 5.0 | 700 | 1.00 | 0.1 | 32.0 |
| BZT52C47 | 47 | 44.00 | 50.00 | 100 | 2.0 | 750 | 1.00 | 0.1 | 35.0 |
| BZT52C51 | 51 | 48.00 | 54.00 | 100 | 2.0 | 750 | 1.00 | 0.1 | 38.0 |
| BZT52C56 | 56 | 53.20 | 58.80 | 200 | 2.0 | 400 | 0.50 | 0.1 | 39.2 |
| BZT52C62 | 62 | 58.90 | 65.10 | 215 | 2.0 | 423 | 0.50 | 0.1 | 43.4 |
| BZT52C68 | 68 | 64.60 | 71.40 | 240 | 2.0 | 447 | 0.50 | 0.1 | 47.6 |
| BZT52C75 | 75 | 71.25 | 78.75 | 255 | 2.0 | 470 | 0.50 | 0.1 | 52.5 |
| Note 2: Short duration test pulse used to minimize self-heating effect. Note 3: f=1kHZ. |
SOD-123 Package Zener Diode Circuit Diagram:
Zener Diode Rating and Characteristic Curves:
Fig1. Power Derating Curve
Fig2. Typical Junction Capacitance
Fig3. Typical Zener Breakdown
Fig4. Typical Zener Breakdown
Fig5. Typical Zener Breakdown
SOD-123 Package Zener Diode Outline (Dimensions in inches and (millimeters)):
SOD-123 Package Zener Diode Ordering Information:
| Zener Diode Part Number | Component Package | Quantity | Packaging Option |
| BZT52C2V4~BZT52C75 | SOD-123 | 10000 PCS | per 13" plastic Reel |
| BZT52C2V4~BZT52C75 | SOD-123 | 3000 PCS | per 7" plastic Reel |
