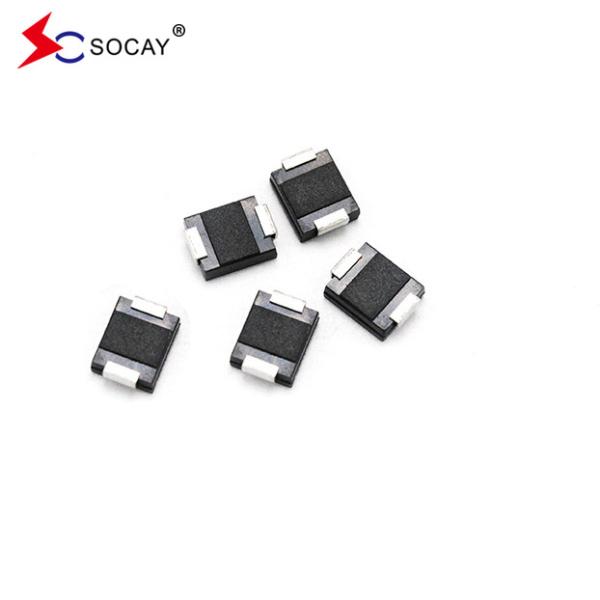

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes

Brand Name : SOCAY

Model Number : SMDJ170CA

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Supply Ability : 1000000pcs

Delivery Time : 5-8 work days

TVS Diodes Type : DO-214AB/SMC

SMDJ170CA Name : TVS Diodes

TVS Diodes Vrwm : 170V

Vbr@It (Min.) : 189V

Vbr@It (Max.) : 209V

TVS Diodes It : 1mA

SMDJ170CA Vc@Ipp : 275V

TVS Diodes Ipp : 10.91A

SMDJ170CA Ir@Vrwm : 1000μA

Storage Temperature Range : -55 to +150 ℃

Contact Now

SOCAY TVS Diodes SMDJ170CA SMDJ10CA SMDJ54A SMDJ51A SMDJ12CA SMD Diodes

TVS Diodes SMDJ170CA DATASHEET: SMDJ_v2107.1 .pdf

TVS Diode SMDJ170CA Has this characterestic: High Temperature soldering: 260°C/40 seconds at terminals. Its response time is very fast typically less than 1.0ps from 0 Volts to VBR min. TVS Diodes SMDJ170CA'S Peak Forward Surge Current 8.3ms Single Half Sine Wave is 300 Amps. Peak Pulse Power Dissipation with a 10/1000µs waveform is 3000 Watts.

TVS Diode SMDJ170CA

Part Number

TVS Diode SMDJ170CA

Marking

 TVS Diode SMDJ170CA Reverse Stand-Off Voltage VRWM (V)

Breakdown Voltage VBR (V)

@IT

TVS Diode SMDJ170CA Test Current IT

(mA)

TVS Diode SMDJ170CA Maximum Clamping Voltage VC

@IPP (V)

TVS Diode SMDJ170CA Maximum Peak Pulse Current

IPP (A)

Maximum Reverse Leakage IR

@VRWM (μA)
Uni Bi Uni Bi MIN MAX
SMDJ170A SMDJ170CA PHR DHR 170.0 189.00 209.00 1 275.0 10.91 5
