Name: Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A
Brand: SOCAY
Price: 1 USD

Brand Name : SOCAY

Model Number : SMCJ100A

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Supply Ability : 1000000pcs

Delivery Time : 5-8 work days

SMCJ100A Name : TVS Diodes

Package Type : DO-214AB/SMC

SMCJ100A Vrwm : 100V

Vbr@It (Min.) : 111V

Vbr@It (Max.) : 123V

SMCJ100A It : 1mA

SMCJ100A Vc@Ipp : 162V

SMCJ100A Ipp : 10.27A

Ir@Vrwm : 1000μA

Storage Temperature Range : -55 to +150 ℃

Contact Now

Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A

TVS DIODE Electrical Characteristics (T_A=25℃ unless otherwise noted) :

TVS DIODE Part Number		TVS DIODE Marking		TVS DIODE Reverse Stand-Off Voltage VRWM (V)	TVS DIODE Breakdown Voltage VBR (V) @IT		TVS DIODE Test Current IT (mA)	Maximum Clamping Voltage VC @IPP (V)	Maximum Peak Pulse Current IPP (A)	Maximum Reverse Leakage IR @VRWM (μA)
Uni	Bi	Uni	Bi		MIN	MAX
SMCJ45A	SMCJ45CA	GFV	BFV	45.0	50.00	55.30	1	72.7	20.63	5
SMCJ48A	SMCJ48CA	GFX	BFX	48.0	53.30	58.90	1	77.4	19.38	5
SMCJ51A	SMCJ51CA	GFZ	BFZ	51.0	56.70	62.70	1	82.4	18.20	5
SMCJ54A	SMCJ54CA	GGE	BGE	54.0	60.00	66.30	1	87.1	17.22	5
SMCJ58A	SMCJ58CA	GGG	BGG	58.0	64.40	71.20	1	93.6	16.03	5
SMCJ60A	SMCJ60CA	GGK	BGK	60.0	66.70	73.70	1	96.8	15.50	5
SMCJ64A	SMCJ64CA	GGM	BGM	64.0	71.10	78.60	1	103.0	14.56	5
SMCJ70A	SMCJ70CA	GGP	BGP	70.0	77.80	86.00	1	113.0	13.27	5
SMCJ75A	SMCJ75CA	GGR	BGR	75.0	83.30	92.10	1	121.0	12.40	5
SMCJ78A	SMCJ78CA	GGT	BGT	78.0	86.70	95.80	1	126.0	11.90	5
SMCJ80A	SMCJ80CA	GGB	BGB	80.0	88.80	97.60	1	129.6	11.57	5
SMCJ85A	SMCJ85CA	GGV	BGV	85.0	94.40	104.00	1	137.0	10.95	5
SMCJ90A	SMCJ90CA	GGX	BGX	90.0	100.00	111.00	1	146.0	10.27	5
SMCJ100A	SMCJ100CA	GGZ	BGZ	100.0	111.00	123.00	1	162.0	9.26	5

Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A

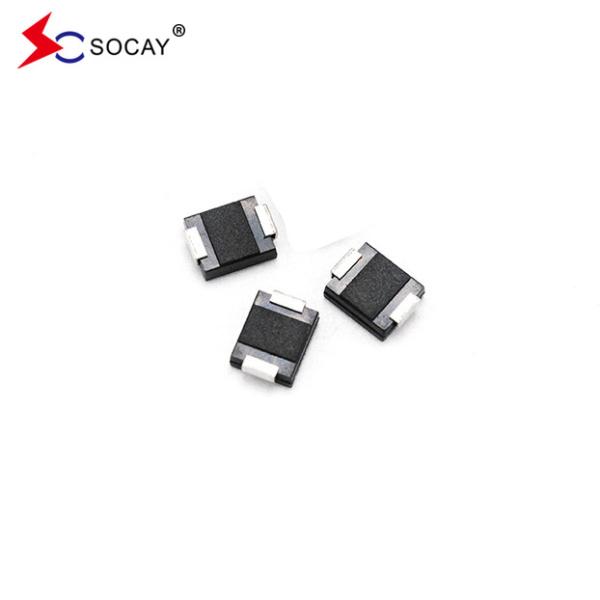

Hot Sell SMCJ100A TVS DIODE 100VWM 162VC DO214AB SMCJ100A Images
