SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB

Name: SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO214AB
Brand: SOCAY
Price: 1 USD

Brand Name : SOCAY

Model Number : SMCJ33CA

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 3000PCS

Price : Negotiable

Supply Ability : 10000000pcs

Delivery Time : 5-8 work days

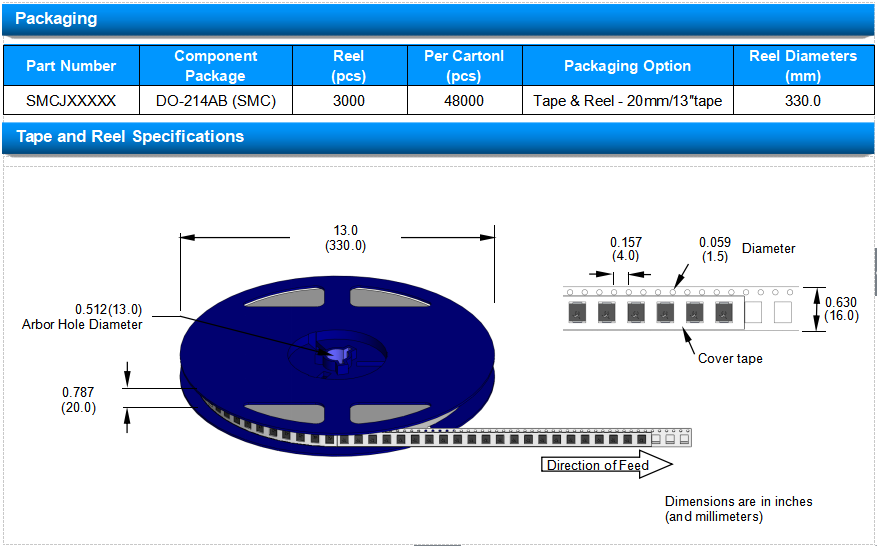

Packaging Details : tape reel

SMCJ33CA Name : TVS Diodes

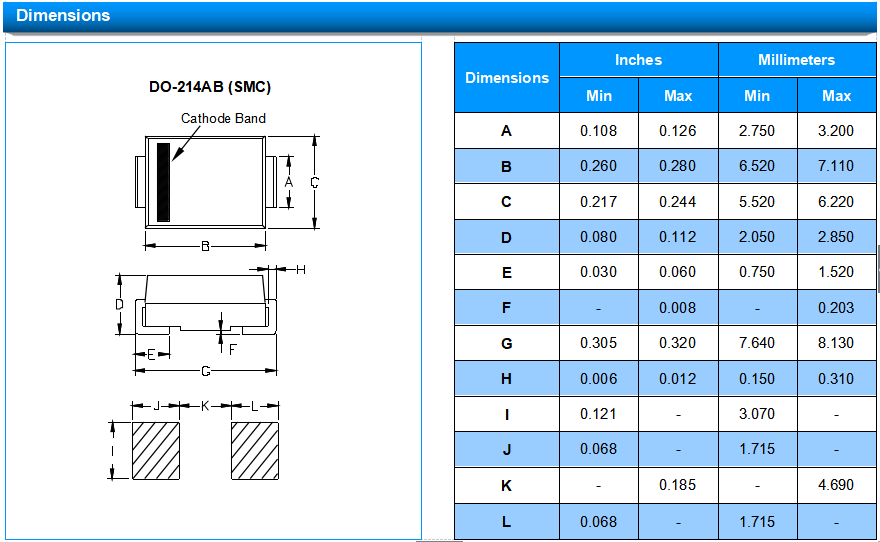

SMCJ33CA Package Type : DO-214AB/SMC

SMCJ33CA Vrwm : 33V

Vbr@It (Min.) : 36.7V

Vbr@It (Max.) : 40.60V

SMCJ33CA It : 1mA

SMCJ33CA Vc@Ipp : 53.3V

Storage Temperature Range : -55 to +150 ℃

Contact Now

SMCJ33 SMCJ33C Electronic Component Bidirectional Transient Voltage Suppressor SMCJ Series TVS SMCJ33CA Diode DO-214AB

DATASHEET: SMCJ_v2107.1 .pdf

SMCJ Series TVS SMCJ33CA Illustration:

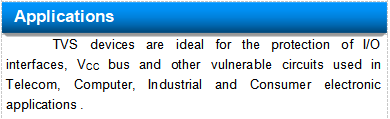

The SMCJ Series TVS SMCJ33CA is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

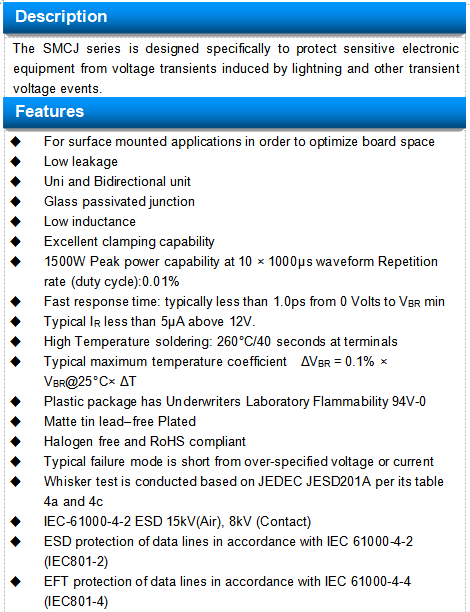

SMCJ Series TVS SMCJ33CA Features:

u TVS SMCJ33CA is For surface mounted applications in order to optimize board space

u It has Low leakage

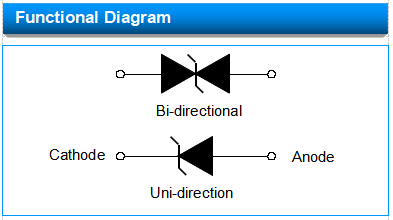

u It is a Bidirectional unit

u Glass passivated junction

u TVS SMCJ33CA has Low inductance

u Excellent clamping capability

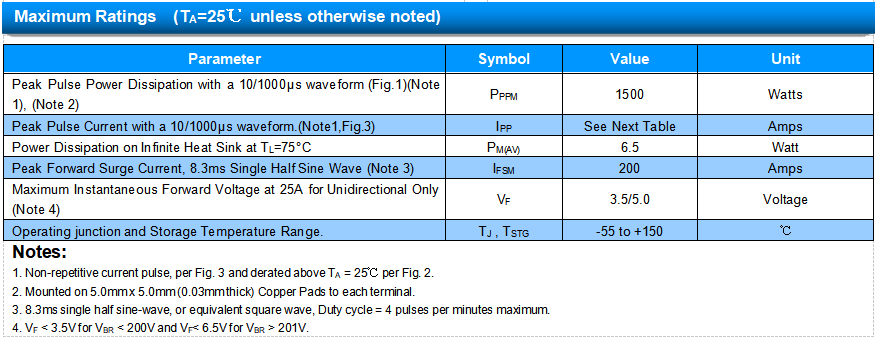

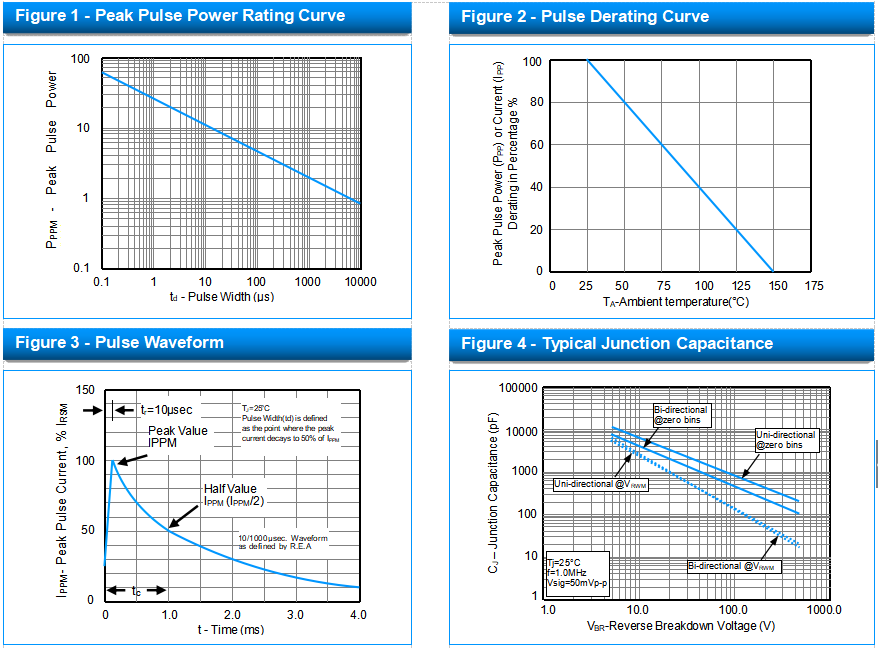

u 1500W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01%

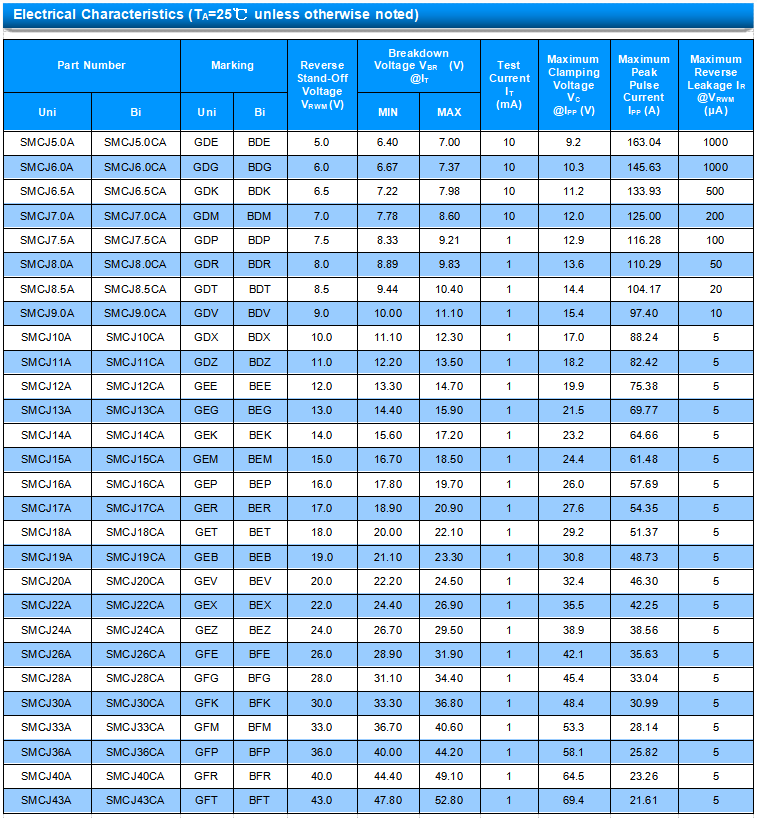

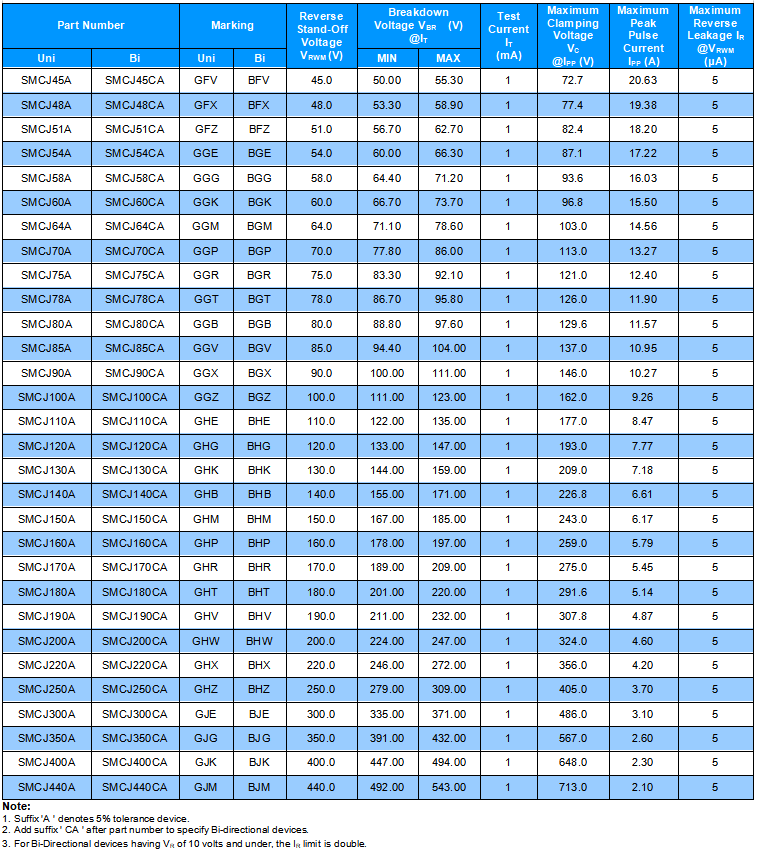

TVS Part Number		TVS Marking		TVS Reverse Stand-Off Voltage VRWM (V)	TVS Breakdown Voltage VBR (V) @IT		TVS Test Current IT (mA)	TVS Maximum Clamping Voltage VC @IPP (V)	Maximum Peak Pulse Current IPP (A)	Maximum Reverse Leakage IR @VRWM (μA)
Uni	Bi	Uni	Bi		MIN	MAX
SMCJ30A	SMCJ30CA	GFK	BFK	30.0	33.30	36.80	1	48.4	30.99	5
SMCJ33A	SMCJ33CA	GFM	BFM	33.0	36.70	40.60	1	53.3	28.14	5

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB

SMCJ33 SMCJ33C Bidirectional Transient Voltage Suppressor TVS SMCJ33CA Diode DO-214AB Images
