SMCJ160CA TVS Diodes DATASHEET: SMCJ_v2107.1 .pdf

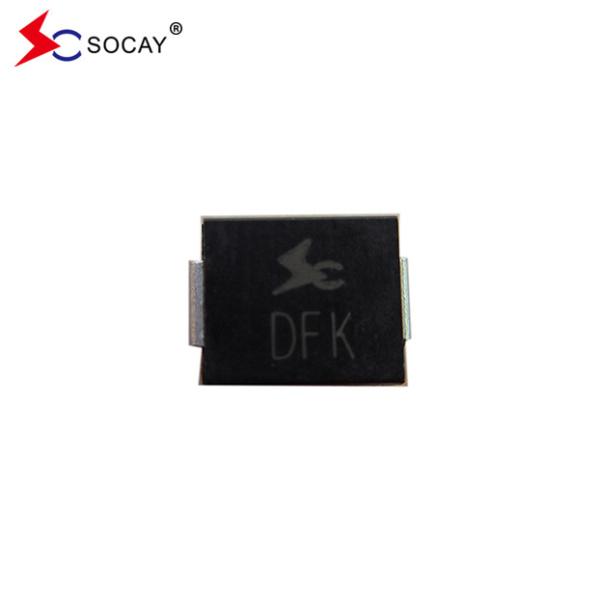

SMCJ160CA TVS Diode Illustration:

SMCJ160CA TVS Diode is used in Telecom, Computer, Industrial and Consumer electronic applications, is ideal for the protection of I/O interfaces, V_CC bus and other vulnerable circuits. The SMCJ160CA TVS Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

SMCJ160CA TVS Diode Features:

• TVS Diode is For surface mounted applications in order to optimize board space
• SMCJ160CA has Low leakage
• This TVS Diode is a Bidirectional unit
• SMCJ160CA TVS Diode is Glass passivated junction
• TVS Diode has Low inductance
• SMCJ160CA TVS Diode has Excellent clamping capability
• SMCJ160CA TVS Diode 's Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% is 1500W
• Its Fast response time: typically less than 1.0ps from 0 Volts to VBR min
• SOCAY TVS Diode 's Typical IR less than 5μA above 12V.
• High Temperature soldering: 260°C/40 seconds at terminals
• SMCJ160CA TVS Diode 's Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
• Plastic package has Underwriters Laboratory Flammability 94V-0
• Matte tin lead–free Plated
• SMCJ160CA TVS Diode has Halogen free and RoHS compliant
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
• SOCAY SMD TVS' ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
• EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
