Radial Lead 15KA Bi directional TVS Diode Surge Suppressor KD-076 20μA IR 145VC

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

Radial Lead 15KA Bi directional TVS Diode Surge Suppressor KD-076 20μA IR 145VC

Brand Name : SOCAY

Model Number : KD-076

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : Negotiable

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : TVS Diodes

Package Type : Radial Lead

Vac : 54V

Vdc : 76V

Vbr@It (Min.) : 85V

It : 10mA

Ipp : 15KA

Vc@Ipp : 145V

Ir@Vdc : 20μA

Storage Temperature Range : -55 to +150 ℃

Contact Now

15KA Blue Powder Surge Suppressor Bi-directional TVS Diode KD-076 20μA IR 145VC


DATASHEET: KD_v211.1.pdf


TVS Diode KD-076 Description:
The KD Series of high current transient suppressors have been specially designed for use in A.C. line protection and any demanding applications (AC or DC). Any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level. They can also be connected in series and/or parallel to create very high capacity protection solutions.

Part Number

Reverse Stand-Off

Voltage

 Breakdown Voltage

Test

Current

Current

Rating

Maximum

Clamping

Voltage

Reverse

Leakage
VAC(V) VDC(V)

VBR(V)

MIN.@IT

IT

(mA)

 IPP 8/20μs (KA)

VC(V)

@IPP

IR (μA)

@VDC
KD-012 8.5 12.8 14 10 15 28 20
KD-015 11 15 17 10 15 30 20
KD-020 14 20 22 10 15 40 20
KD-025 17 25 28 10 15 50 20
KD-030 21 30 33 10 15 60 20
KD-042 30 42 47 10 15 77 20
KD-058 40 58 64 10 15 110 20
KD-066 45 66 70 10 15 125 20
KD-076 54 76 85 10 15 145 20



TVS Diode KD-076 Features:

  • It is a Axial lead terminal
  • High current transient suppressor
  • TVS Diode Has Excellent Clamping Capability
  • Glass Passivated Junction
  • It is Bi-directional
  • TVS Diode has Low Slope Resistance
  • Repetition Rate (duty cycle):0.01%
  • Hazardous Substances Free
  • Compliance with RoHS Compliant
  • High Temperature soldering: 260°C/10 seconds at terminals
  • Epoxy Encapsulated
  • Silver plated leads
  • Solderable per MIL-STD-202 Method 208



TVS Diode KD-076 Parameter Symbol Value Unit
TVS Diode Operating junction TJ -55 to +150 °C
Storage Temperature Range TSTG -55 to +150 °C
TVS Diode Current Rating1 IPP 15 KA

Notes:
1. Rated IPP measured with 8 × 20μs pulse.


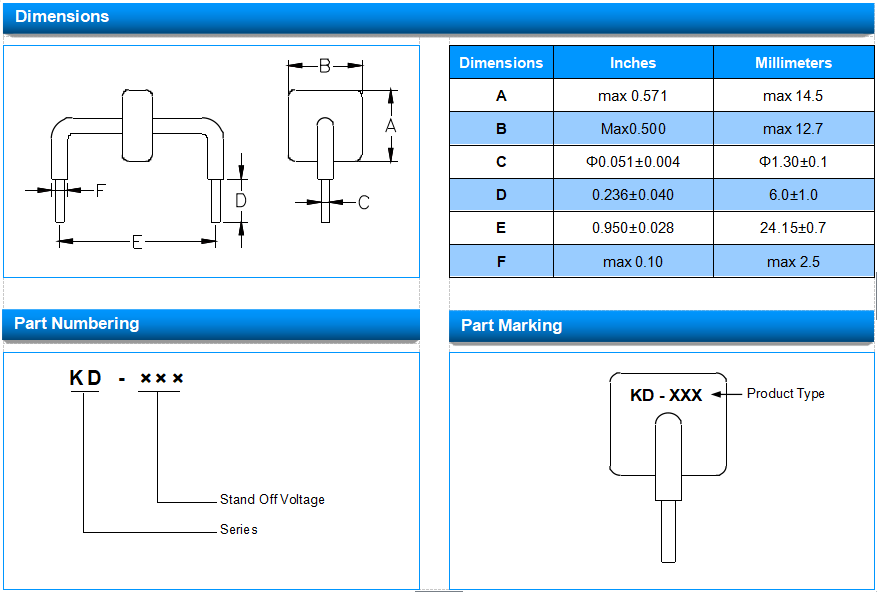

TVS Diode KD-076 Weight Contact manufacturer
TVS Diode KD-076 Case Epoxy encapsulated
TVS Diode KD-076 Terminal Silver plated leads, solderable per MIL-STD-750, Method 2026

Radial Lead 15KA Bi directional TVS Diode Surge Suppressor KD-076 20μA IR 145VC


Radial Lead 15KA Bi directional TVS Diode Surge Suppressor KD-076 20μA IR 145VC

Radial Lead 15KA Bi directional TVS Diode Surge Suppressor KD-076 20μA IR 145VC

Radial Lead 15KA Bi directional TVS Diode Surge Suppressor KD-076 20μA IR 145VC
