DO-214AA(SMBJ) Transient Suppression Diode (TVS) SMBJ58CA Components

DO-214AA(SMBJ) Transient Suppression Diode (TVS) SMBJ58CA Components​

Transient Suppression Diode (TVS) SMBJ58CA DATASHEET: SMBJ_v88.2.pdf

Transient Suppression Diode (TVS) SMBJ58CA Explain:

SOCAY's main products include a full range of Ceramic Gas Discharge Tubes (GDT), Transient Suppression Diodes (TVS Diodes), ESD Suppressor, Thyristor Surge Suppressors (TSS), Spark Gap Protectors (SPG), Varistors (MOV), Chip Varistors (MLV), PTC Resettable Fuse, Negative Temperature Coefficient thermistors (NTC Thermistors), Chip Bead, Schottky Diodes , Zener Diode, etc. From circuit design to product testing (and provide test reports), we will provide you with one-stop services in the field of circuit protection. With excellent quality and service, SOCAY has won extensive praise from customers and respect from the industry.Transient Suppression Diode (TVS) SMBJ58CA 's Peak Pulse Power Dissipation with a 10/1000µs waveform is 600W.

The product adopts SMB surface mount technology, which has extremely fast response time (sub-nanosecond level) and fairly high surge absorption capability. Designed to protect sensitive electronic equipment in circuit applications from voltage transients caused by lightning strikes and other transient voltage events.
characteristic:

> Adopts standard surface mount SMB package
> Peak pulse power at 10×1000μs waveform is 1500W, repetition frequency (duty cycle): 0.01%
> Fast response time: typically less than 1.0ps from 0 volts to VBR minimum
> Excellent clamping capability
> Small leakage current
> High temperature welding guaranteed: terminal 260°C/40 seconds
> Halogen-free and compliant with RoHS and Reach test standards
application:
> i/o interface
> ac/dc power supply
> low frequency signal transmission line (rs232, rs485, etc.)

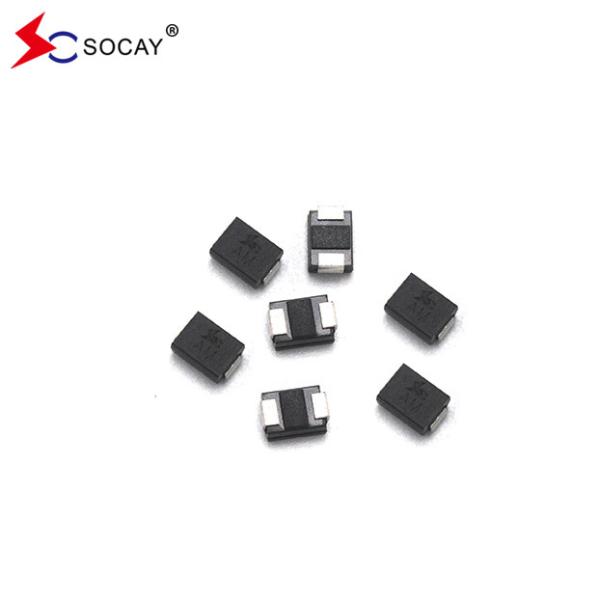

DO-214AA(SMBJ) Transient Suppression Diode (TVS) SMBJ58CA Components Images
