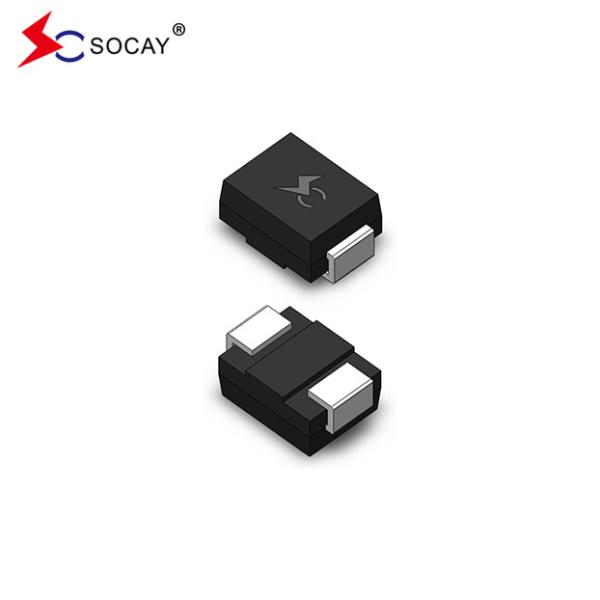

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

  • 1
  • 2

Brand Name : SOCAY

Model Number : SMBJ15CA

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 5000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000pcs

Delivery Time : 1-2weeks

Packaging Details : tape reel

SMBJ15CA Name : TVS Diodes

SMBJ15CA Package Type : DO-214AA/SMB

SMBJ15CA Vrwm : 15V

SMBJ15CA Vbr@It (Min.) : 16.7V

SMBJ15CA Vbr@It (Max.) : 18.5V

SMBJ15CA It : 1mA

SMBJ15CA Vc@Ipp : 24.4V

Storage Temperature Range : -55 to +150 ℃

Contact Now

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

TVS SMBJ15CA DATASHEET: SMBJ_v88.2.pdf

TVS SMBJ15CA Features:

SMAJ15CA series TVS transient suppression diode products adopt standard surface mount SMA package and have a peak rated power of 400W. The product has extremely fast response time (sub-nanosecond) and very high stability. Designed specifically for the protection of various interfaces in electronic circuit applications from transient voltages caused by lightning strikes and other transient voltage events
Product Features
Available in standard surface mount SMA package
Fast response time: typically less than 1.0ps from 0 volts to VBR minimum
Peak pulse power at 10×1000μs waveform is 400W
Fast response time: typically less than 1.0ps from 0 volts to VBR minimum
Halogen-free and compliant with RoHS and Reach testing standards
Applications
Power supply protection
Automotive application
Industrial application
Power management

TVS SMBJ15CA Part Number TVS SMBJ15CA Marking

TVS SMBJ15CA Reverse

Stand-Off

Voltage VRWM (V)

TVS SMBJ15CA Breakdown

Voltage VBR (V)

@IT

TVS SMBJ15CA Test

Current

IT (mA)

TVS SMBJ15CA Maximum

Clamping

Voltage VC @IPP (V)

TVS SMBJ15CA Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi MIN MAX
SMBJ15A SMBJ15CA LM BM 15.0 16.70 18.50 1 24.4 24.59 5

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

DO-214AA SMBJ Transient Suppression Diodes TVS SMBJ15CA Components

.

SMAJ15CA series TVS transient suppression diodes are packaged in SMA standard, 5,000 pcs per tray. Samples now available.
