New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components

Name: New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components
Brand: SOCAY
Price: 1 USD

Brand Name : SOCAY

Model Number : SMBJ440CA

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 5000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000000pcs

Delivery Time : 1-2weeks

Packaging Details : tape reel

SMBJ440CA Name : TVS Diodes

SMBJ440CA Package Type : DO-214AA/SMB

SMBJ440CA Vrwm : 440V

SMBJ440CA Vbr@It (Min.) : 492V

SMBJ440CA Vbr@It (Max.) : 543V

SMBJ440CA It : 1mA

SMBJ440CA Vc@Ipp : 713V

SMBJ440CA Ipp : 65.22A

Contact Now

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components

SMBJ440A SMBJ440CA Diode DATASHEET: SMBJ_v88.2.pdf

SMBJ440A SMBJ440CA Diode Description:

The SMBJ440A SMBJ440CA Diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. SMBJ440A SMBJ440CA Diode TVS devices are ideal for the protection of I/O interfaces, V_CC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications. Power Dissipation on Infinite Heat Sink at T_L=75°C is 5.0 Watt.

Diode Part Number		Diode Marking		Diode Reverse Stand-Off Voltage VRWM (V)	Diode Breakdown Voltage VBR (V) @IT		Diode Test Current IT (mA)	Diode Maximum Clamping Voltage VC @IPP (V)	Diode Maximum Peak Pulse Current IPP (A)	Diode Maximum Reverse Leakage IR @VRWM (μA)
Uni	Bi	Uni	Bi		MIN	MAX
SMBJ400A	SMBJ400CA	QK	FK	400.0	447.00	494.00	1	648.0	0.93	5
SMBJ440A	SMBJ440CA	QM	FM	440.0	492.00	543.00	1	713.0	0.84	5

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components

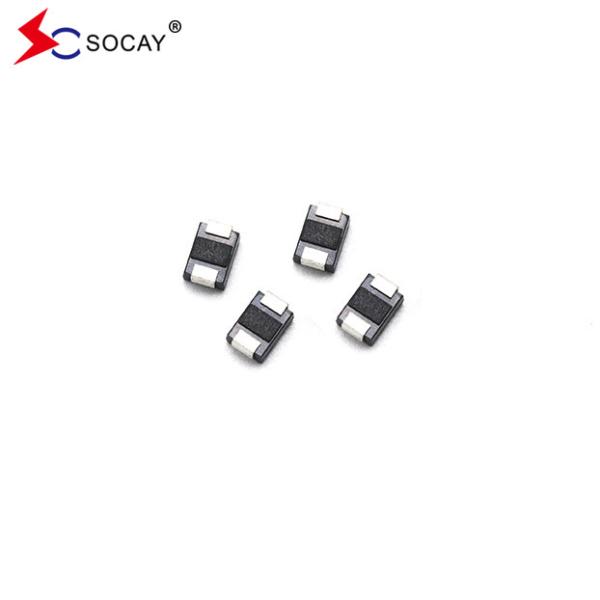

New chips SMBJ440 SMBJ440A SMBJ440CA Diode DO214AA passive components Images
