SC3E8-600HP GDT Gas Surge Arrester 3 Pole T Lead Devices Classical Components

Name: SC3E8600HP GDT Gas Surge Arrester 3 Pole T Lead Devices Classical Components
Brand: SOCAY
Price: 1 USD

SC3E8-600HP GDT Gas Surge Arrester 3 Pole T Lead Devices Classical Components Manufactures

Brand Name : SOCAY

Model Number : SC3E8-600HP

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : Gas Discharge Tube

Size : φ8*10mm

DC Spark-over Voltage @100V/μs : 600V±20%

Max. Spark-over Impulse Voltage @100V/μs : 500V

Max. Spark-over Impulse Voltage @1KV/μs : 600V

Min. Insulation Resistance : 1GΩ (@25V)

Max. Capacitance : 1.5pF

Arc Voltage @1A : 15V

Nom. Impulse Discharge Current : 10KA

Max. Impulse Discharge Current : 20KA

Storage Temperature : -40°C~+90°C

Contact Now

Gas Surge Arrester SC3E8-600HP, 3 Pole "T" Lead Devices Gas Discharge Tube

DATASHEET: SC3E8_v2308.1.pdf

Part Number	Marking	DC Spark-over Voltage	Maximum Impulse Spark-over Voltage		Minimum Insulation Resistance	Maximum Capacitance	Arc Voltage	Service Life
		DC Spark-over Voltage	Maximum Impulse Spark-over Voltage			Maximum Capacitance	Arc Voltage	Nominal Impulse Discharge Current	Max Impulse Discharge Current	Nominal Alternating Discharge Current	Impulse Life
		@100V/S	@100V/μs	@1KV/μs		@1MHz	@1A	@8/20μs ⁴⁾ ±5 times	@8/20μs⁴⁾ 1 time	@50Hz⁴⁾ 1 Sec 10 times	@10/1000μs ⁴⁾ 300 times
SC3E8-75HM SC3E8-75HMF SC3E8-75HP SC3E8-75H	SOCAY 75H	75V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.5pF	~25V	20KA	25KA	20A	200A
SC3E8-90HM SC3E8-90HMF SC3E8-90HP SC3E8-90H	SOCAY 90H	90V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.5pF	~25V	20KA	25KA	20A	200A
SC3E8-150HM SC3E8-150HMF SC3E8-150HP SC3E8-150H	SOCAY 150H	150V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.5pF	~25V	20KA	25KA	20A	200A
SC3E8-230HM SC3E8-230HMF SC3E8-230HP SC3E8-230H	SOCAY 230H	230V±20%	＜600V	＜700V	1 GΩ (at 100V)	＜1.5pF	~25V	20KA	25KA	20A	200A
SC3E8-250HM SC3E8-250HMF SC3E8-250HP SC3E8-250H	SOCAY 250H	250V±20%	＜600V	＜700V	1 GΩ (at 100V)	＜1.5pF	~25V	20KA	25KA	20A	200A
SC3E8-300HM SC3E8-300HMF SC3E8-300HP SC3E8-300H	SOCAY 300H	300V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.5pF	~25V	20KA	25KA	20A	200A
SC3E8-350HM SC3E8-350HMF SC3E8-350HP SC3E8-350H	SOCAY 350H	350V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.5pF	~25V	20KA	25KA	20A	200A
SC3E8-420HM SC3E8-420HMF SC3E8-420HP SC3E8-420H	SOCAY 420H	420V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.5pF	~25V	20KA	25KA	20A	200A
SC3E8-470HM SC3E8-470HMF SC3E8-470HP SC3E8-470H	SOCAY 470H	470V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.5pF	~25V	20KA	25KA	20A	200A
SC3E8-600HM SC3E8-600HMF SC3E8-600HP SC3E8-600H	SOCAY 600H	600V±20%	＜1100V	＜1200V	1 GΩ (at 100V)	＜1.5pF	~25V	20KA	25KA	20A	200A
SC3E8-800HM SC3E8-800HMF SC3E8-800HP SC3E8-800H	SOCAY 800H	800V±20%	＜1200V	＜1400V	1 GΩ (at 100V)	＜1.5pF	~25V	20KA	25KA	20A	200A
Notes: 1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008 2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859 3). Tip or ring electrode to center electrode 4). Total current through center electrode, half value through tip respectively ring electrode

Descriptions:

Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems -with their high-grade but sensitive electronic circuits - be protected by arresters. They are thus fitted at the input of the power supply system together with varistors and at the connection points to telecommunication lines. They have become equally indispensable for protecting base stations in mobile telephone systems as well as extensive cable television (CATV) networks with their repeaters and distribution systems.

SC3E8-600HP GDT Gas Surge Arrester 3 Pole T Lead Devices Classical Components

Features:

Non-Radioactive.

RoHS compliant.

Low insertion loss.

Excellent response to fast rising transients.

Ultra low capacitance.

20KA surge capability tested with 8/20μs pulse as defined by IEC 61000-4-5.

Applications:

Communication equipment.

CATV equipment.

Test equipment.

Data lines.

Power supplies.

Telecom SLIC protection.

Broadband equipment.

ADSL equipment, including ADSL2+.

XDSL equipment.

Satellite and CATV equipment.

Consumer electronics.

Product Tags:

Gas Surge Arrester 3 Pole

GDT Gas Surge Arrester

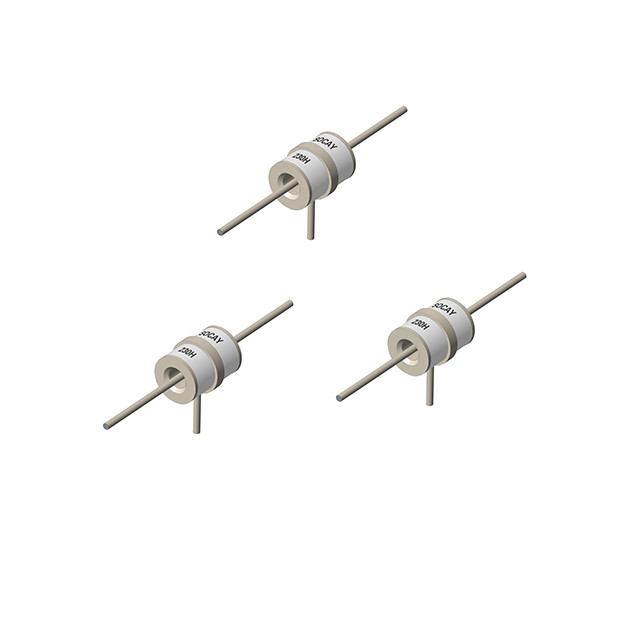

SC3E8-600HP GDT Gas Surge Arrester 3 Pole T Lead Devices Classical Components Images
