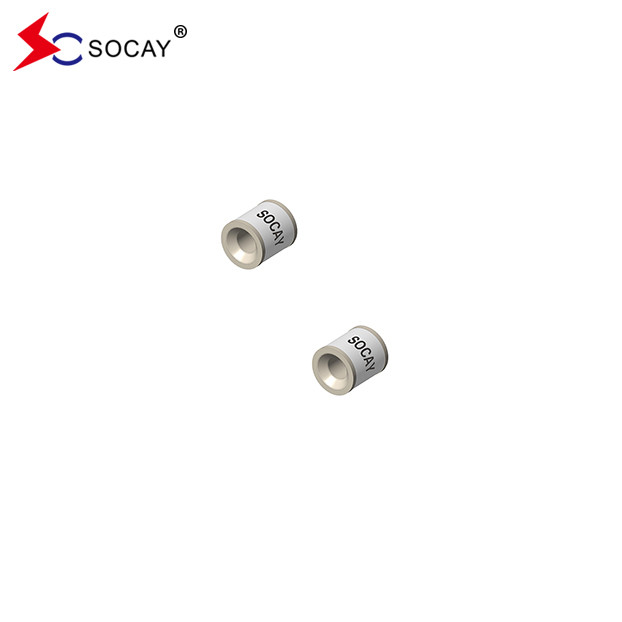

SOCAY SC2E5-230L GDT Electronic Component 10KA Response To Fast Rising Transients

Name: SOCAY SC2E5230L GDT Electronic Component 10KA Response To Fast Rising Transients
Brand: SOCAY
Price: 1 USD

SOCAY SC2E5-230L GDT Electronic Component 10KA Response To Fast Rising Transients Manufactures

Brand Name : SOCAY

Model Number : SC2E5-230L

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : Gas Discharge Tube

Size : φ5.5*6mm

DC Spark-over Voltage @100V/μs : 230V±20%

Max. Spark-over Impulse Voltage @100V/μs : 600V

Max. Spark-over Impulse Voltage @1KV/μs : 700V

Min. Insulation Resistance : 1GΩ (@50V DC)

Max. Capacitance : 1.0pF

Arc Voltage @1A : 15V

Nom.Max. Impulse Discharge Current Impulse Discharge Current : 5KA

Operating Temperature : -40°C~+90°C

Storage Temperature : -40°C~+90°C

Max. Impulse Discharge Current : 10KA

Nom. Alternating Discharge Current : 5A

Impulse Life : 100A

Contact Now

Without Wire Devices Gas Discharge Tube SC2E5-230L, Excellent Response to Fast Rising Transients

DATASHEET: SC2E5_v91.1.pdf

Descriptions:

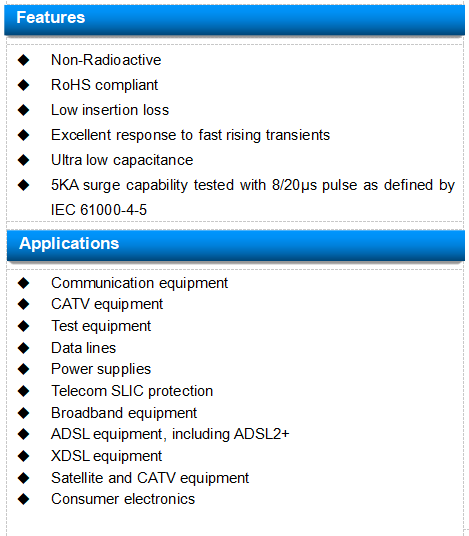

Gas discharge Tubes (GDT) are classical components for protecting the installations of the telecommunications. It is essential that IT and telecommunications systems -with their high-grade but sensitive electronic circuits - be protected by arresters. They are thus fitted at the input of the power supply system together with varistors and at the connection points to telecommunication lines. They have become equally indispensable for protecting base stations in mobile telephone systems as well as extensive cable television (CATV) networks with their repeaters and distribution systems.
These protective components are also indispensable in other sectors, In AC power transmission systems, they are often used with current-limiting varistors, In customer premises equipment such as DSL modems, WLAN routers, TV sets and cable modems
In air-conditioning equipment, the integral black-box concept offers graduated protection by combining arresters with varistors, PTC, diodes and inductor.

SOCAY SC2E5-230L GDT Electronic Component 10KA Response To Fast Rising Transients

Part Number	Marking	DC Spark-over Voltage	Maximum Impulse Spark-over Voltage		Minimum Insulation Resistance	Maximum Capacitance	Arc Voltage	Service Life
								Nominal Impulse Discharge Current	Max Impulse Discharge Current	Nominal Alternating Discharge Current	Impulse Life
		@100V/S	@100V/μs	@1KV/μs		@1MHz	@1A	@8/20μs ±5 times	@8/20μs 1 time	@50Hz 1 Sec 10 times	@10/1000μs 300 times
SC2E5-75LL SC2E5-75L	SOCAY75L	75V±20%	＜500V	＜600V	1 GΩ (at 25V)	＜1.0pF	~15V	5KA	10KA	5A	100A
SC2E5-90LL SC2E5-90L	SOCAY90L	90V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.0pF	~15V	5KA	10KA	5A	100A
SC2E5-150LL SC2E5-150L	SOCAY150L	150V±20%	＜500V	＜600V	1 GΩ (at 50V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-230LL SC2E5-230L	SOCAY230L	230V±20%	＜600V	＜700V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-250LL SC2E5-250L	SOCAY250L	250V±20%	＜700V	＜800V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-300LL SC2E5-300L	SOCAY300L	300V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-350LL SC2E5-350L	SOCAY350L	350V±20%	＜800V	＜900V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-420LL SC2E5-420L	SOCAY420L	420V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-470LL SC2E5-470L	SOCAY470L	470V±20%	＜900V	＜1000V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-600LL SC2E5-600L	SOCAY600L	600V±20%	＜1100V	＜1200V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-800LL SC2E5-800L	SOCAY800L	800V±20%	＜1200V	＜1400V	1 GΩ (at 100V)	＜1.0pF	~20V	5KA	10KA	5A	100A
Notes: 1). Terms in accordance with ITU-T K.12 and GB/T 9043-2008 2). At delivery AQL 0.65 level Ⅱ, DIN ISO 2859
