Non Radioactive GDT Tube 5KA SC2E5-600LSMD RoHS compliant

Product Categories

Shenzhen Socay Electronics Co., Ltd.

Contact Now

Name: Non Radioactive GDT Tube 5KA SC2E5600LSMD RoHS compliant
Brand: SOCAY
Price: 1 USD

Brand Name : SOCAY

Model Number : SC2E5-600LSMD

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 1000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Product Name : Gas Discharge Tube

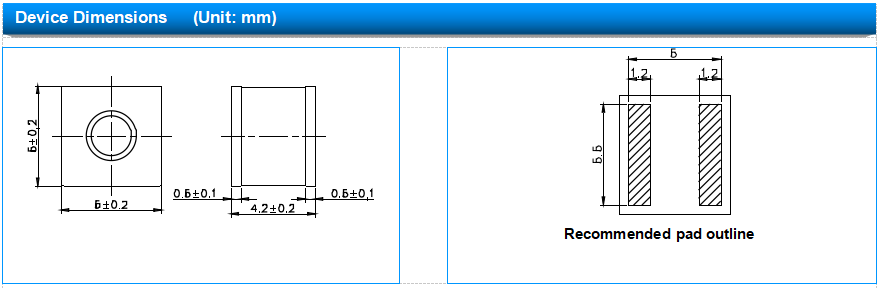

Size : 5*5*4.2mm

DC Spark-over Voltage @100V/μs : 600V±20%

Max. Spark-over Impulse Voltage @100V/μs : 1100V

Max. Spark-over Impulse Voltage @1KV/μs : 1200V

Max. Capacitance : 1.0pF

Nom.Max. Impulse Discharge Current Impulse Discharge Current : 5KA

Contact Now

SOCAY GDT Gas Discharge Tube SC2E5-600LSMD, Excellent Response to Fast Rising Transients

DATASHEET: SC2E5-SMD_v2110.1.pdf

Part Number	DC Spark-over Voltage	Maximum Impulse Spark-over Voltage		Minimum Insulation Resistance	Maximum Capacitance	Arc Voltage	Service Life
							Nominal Impulse Discharge Current	Max Impulse Discharge Current	Nominal Alternating Discharge Current	Impulse Life
	@100V/S	@100V/μs	@1KV/μs		@1MHz	@1A	@8/20μs ±5 times	@8/20μs 1 time	@50Hz 1 Sec 10 times	@10/1000μs 300 times
SC2E5-75LSMD	75V±20%	＜500V	＜650V	1 GΩ (at 50V DC)	＜1.0pF	~15V	5KA	10KA	5A	100A
SC2E5-90LSMD	90V±20%	＜500V	＜650V	1 GΩ (at 50V DC)	＜1.0pF	~15V	5KA	10KA	5A	100A
SC2E5-150LSMD	150V±20%	＜500V	＜650V	1 GΩ (at 50V DC)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-200LSMD	200V±20%	＜500V	＜650V	1 GΩ (at 100V DC)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-230LSMD	230V±20%	＜600V	＜700V	1 GΩ (at 100V DC)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-300LSMD	300V±20%	＜700V	＜800V	1 GΩ (at 100V DC)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-350LSMD	350V±20%	＜700V	＜800V	1 GΩ (at 100V DC)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-420LSMD	420V±20%	＜800V	＜950V	1 GΩ (at 100V DC)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-470LSMD	470V±20%	＜900V	＜1000V	1 GΩ (at 100V DC)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-600LSMD	600V±20%	＜1100V	＜1200V	1 GΩ (at 100V DC)	＜1.0pF	~20V	5KA	10KA	5A	100A
SC2E5-800LSMD	800V±20%	＜1200V	＜1400V	1 GΩ (at 100V DC)	＜1.0pF	~20V	5KA	10KA	5A	100A
Notes: Terms in accordance with ITU-T K.12 and GB/T 9043-2008 At delivery AQL 0.65 level Ⅱ, DIN ISO 2859

Non Radioactive GDT Tube 5KA SC2E5-600LSMD RoHS compliant

Features:

Non Radioactive GDT Tube 5KA SC2E5-600LSMD RoHS compliant
