Socay TVS Diodes SMF Series SOD-123 78CA Circuit Protection Diodes 78V 220W Transient Voltage Suppressors

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

Socay TVS Diodes SMF Series SOD-123 78CA Circuit Protection Diodes 78V 220W Transient Voltage Suppressors

Brand Name : Socay

Model Number : SMF78CA

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 5000PCS

Price : Negotiable

Delivery Time : 5-8 work days

SMF78CA Package Type : SOD-123

SMF78CA Reverse Stand-OffVoltage VRWM : 78.0

SMF78CA Breakdown Voltage VBR(V) @IT MIN : 86.70

SMF78CA Breakdown Voltage VBR(V) @IT MAX : 95.80

SMF78CA TestCurrentIT (mA) : 1

SMF78CA Maximum ClampingVoltage VC@IPP (V) : 126.0

SMF78CA MaximumPeak Pulse CurrentIPP (A) : 1.59

SMF78CA Maximum Reverse Leakage IR @VRWM (μA) : 1

Contact Now

Socay TVS Diodes SMF Series SOD-123 78CA Circuit Protection Diodes 78V 220W Surface Mount Transient Voltage Suppressors

DATASHEET:SMF Series_v2211.1.pdf



SMF78CA Description:
The SMF Series Transient Voltage Suppressors is a semiconductor device with surge absorption capability, its response time is extremely fast, up to the sub-nanosecond level, so once the circuit receives an instantaneous high-energy shock when it can suppress this energy, by absorbing the instantaneous high-current, high-voltage clamps from the circuit, the end result is the protection of the equipment or circuit behind.

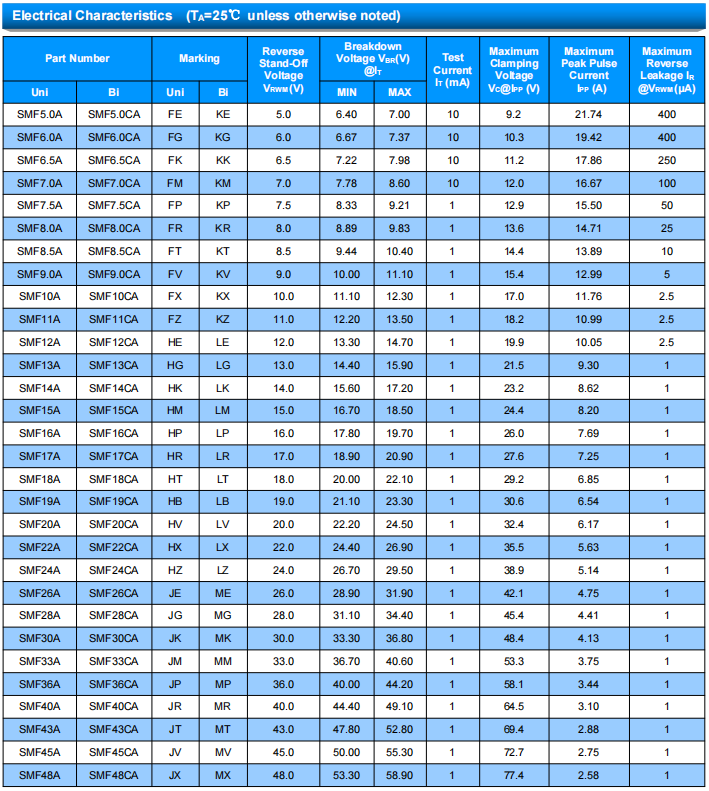

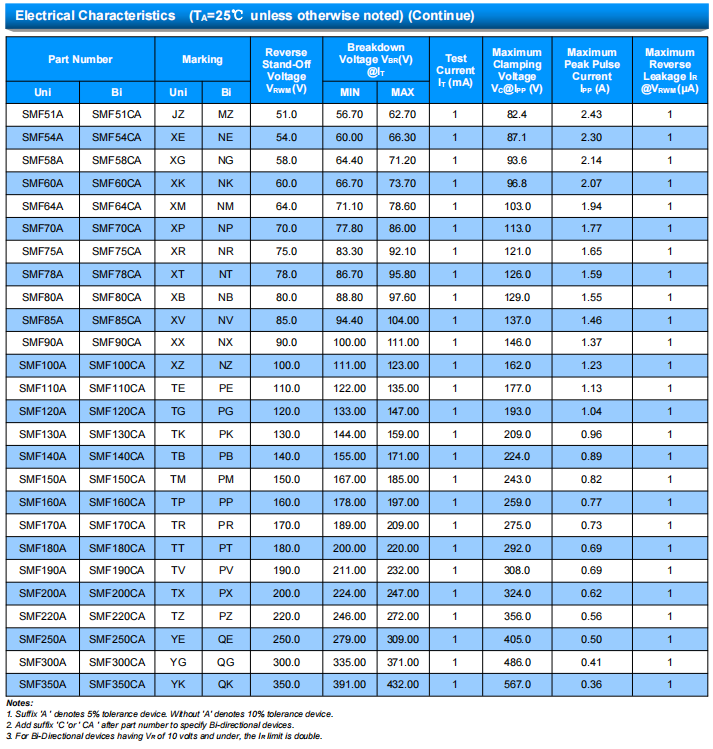

Part NumberMarking

Reverse
Stand-Off
Voltage VRWM (V)

Breakdown
Voltage VBR (V)
@IT

Test
Current
IT (mA)

Maximum
Clamping
Voltage VC @IPP (V)

Maximum
Peak
Pulse
Current IPP (A)

Maximum
Reverse
Leakage IR
@VRWM (μA)

UniBiUniBiMINMAX
SMF5.0ASMF5.0CAFEKE5.06.407.00109.221.74400
SMF6.0ASMF6.0CAFGKG6.06.677.371010.319.42

400

SMF6.5ASMF6.5CAFKKK6.57.227.981011.217.86200
SMF7.0ASMF7.0CAFMKM7.07.788.601012.016.67100
SMF7.5ASMF7.5CAFPKP7.58.339.21112.915.5050
SMF8.0ASMF8.0CAFRKR8.08.899.83113.614.7125
SMF8.5ASMF8.5CAFTKT8.59.4410.40114.413.8910
SMF9.0ASMF9.0CAFVKV9.010.0011.10115.412.995
SMF10ASMF10CAFXKX10.011.1012.30117.011.762.5
SMF11ASMF11CAFZKZ11.012.2013.50118.210.992.5
SMF12ASMF12CAHELE12.013.3014.70119.910.052.5
SMF13ASMF13CAHGLG13.014.4015.90121.59.301
SMF14ASMF14CAHKLK14.015.6017.20123.28.621
SMF15ASMF15CAHMLM15.016.7018.50124.48.201
SMF16ASMF16CAHPLP16.017.8019.70126.07.691
SMF17ASMF17CAHRLR17.018.9020.90127.67.251
SMF18ASMF18CAHTLT18.020.0022.10129.26.851
SMF19ASMF19CAHBLB19.021.1023.30130.66.541
SMF20ASMF20CAHVLV20.022.2024.50132.46.171
SMF22ASMF22CAHXLX22.024.026.90135.55.631
SMF24ASMF24CAHZLZ24.026.7029.50138.95.141
SMF26ASMF26CAJEME26.028.9031.90142.14.751
SMF28ASMF28CAJGMG28.031.1034.40145.44.411
SMF30ASMF30CAJKMK30.033.3036.80148.44.131
SMF33ASMF33CAJMMM33.036.7040.60153.33.751
SMF36ASMF36CAJPMP36.040.0044.20158.13.441
SMF40ASMF40CAJRMR40.044.4049.10164.53.101
SMF43ASMF43CAJTMT43.047.8052.80169.42.881
SMF45ASMF45CAJVMV45.050.00

55.30

172.72.751
SMF48ASMF48CAJXMX48.053.058.90177.42.581
SMF51ASMF51CAJZMZ51.056.7062.70182.42.431
SMF54ASMF54CAXENE54.060.0066.30187.12.301
SMF58ASMF58CAXGNG58.064.4071.20193.62.141
SMF60ASMF60CAXKNK60.066.7073.70196.82.071
SMF64ASMF64CAXMNM64.071.1078.601103.01.941
SMF70ASMF70CAXPNP70.077.8086.001113.01.771
SMF75ASMF75CAXRNR75.083.3092.101121.01.651
SMF78ASMF78CAXTNT78.086.7095.801126.01.591
SMF80ASMF80CAXBNB80.088.8097.601129.01.551
SMF85ASMF85CAXVNV85.094.40104.001137.01.461


SMF78CA Specificity:

  • Low leakage rate

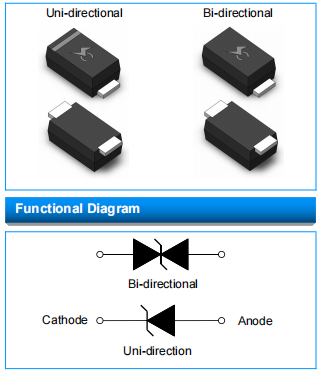

  • Uni- and Bi-directional Unit
  • Passivated glass for glass junction
  • Low inductivity
  • Excellent grip and control capability
  • Matt Tin - Lead Free
  • RoHS conform and halogen free

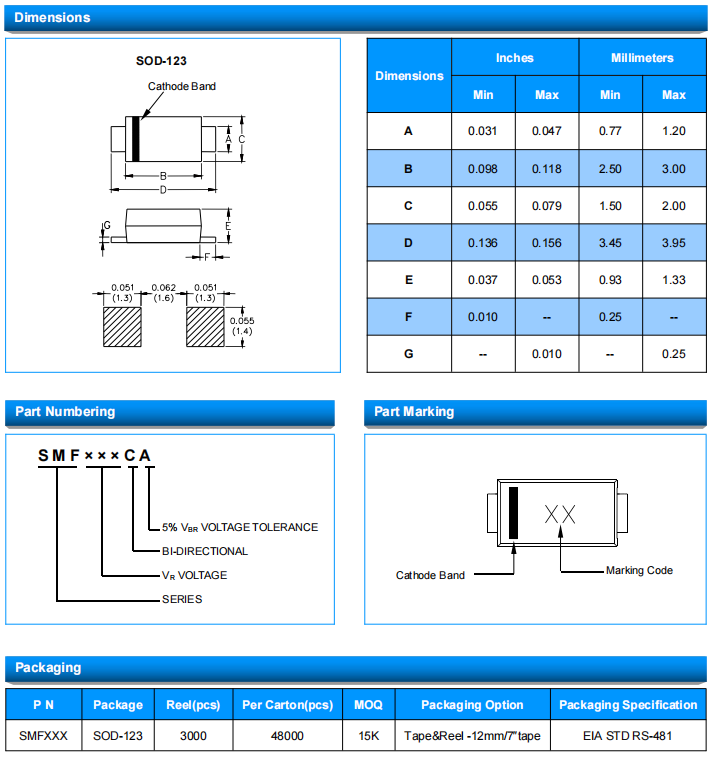

  • Compatible with the SOD-123 industrial standard package - SOD-123
  • Designed to optimise board space in surface mounted applications

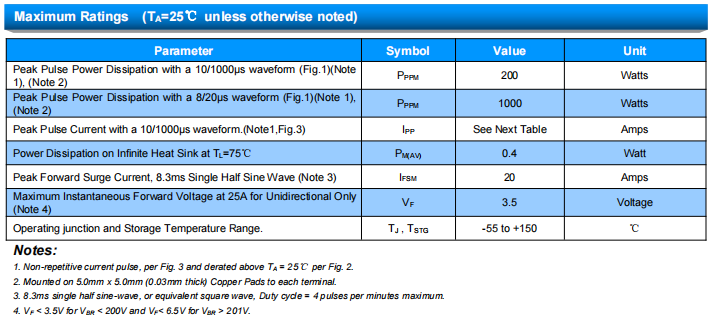

  • 200W Peak power capability at 10 × 1000μs waveform Repetition Rate (Duty Cycle): 0.01% Duty Cycle
  • Fast response: typically less than 1.0ps from 0V to VBRmin
  • High-temperature solder: 260℃/40 seconds on clamps
  • Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25℃×ΔT
  • Plastic packaging is flammability rated 94V-0 by the Underwriters Laboratory.
  • A typical failure mode is short circuiting due to overvoltage or overcurrent.
  • The whisker test is carried out according to JEDEC JESD201A tables 4a and 4c.
  • IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
  • IEC 61000-4-2 (IEC801-2) ESD protection of data lines
  • IEC 61000-4-4 (IEC801-4) EFT data line protection


SMF78CA Applications:
TVS devices are suitable for safeguarding I/O interfaces, VCC buses, and other protection circuits utilized in telecommunications, computer, consumer, and industrial applications that are susceptible to attacks.
