SOCAY 5000W High-power 5KP Series TVS Diode Axial Lead Transient Voltage Suppressor 5KP5.0A 5.0CA

Name: SOCAY 5000W Highpower 5KP Series TVS Diode Axial Lead Transient Voltage Suppressor 5KP50A 50CA
Brand: SOCAY
Price: 1 USD

Brand Name : SOCAY

Model Number : 5KP5.0A 5KP5.0CA

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 250PCS

Price : Negotiable

Delivery Time : 5-8 work days

Vrwm : 5.0V

Vbr@It (Min.) : 6.40V

Vbr@It (Max.) : 7.00V

It : 10mA

Vc@Ipp : 9.2V

Ipp : 543.48A

Ir@Vrwm : 800μA

Contact Now

SOCAY 5000W High-power 5KP Series TVS Diode Axial Lead Transient Voltage Suppressor 5KP5.0A 5.0CA

DATASHEET: 5KP.pdf

Description:
The 5KP series is designed for the protection of sensitive electronic equipment against transient voltages caused by lightning strikes and other transient voltage events.

Part Number		Reverse Stand-Off Voltage V_R_WM (V)	Breakdown Voltage V_BR (V) @I_T		Test Current I_T (mA)	Maximum Clamping Voltage V_C (V) @I_PP	Maximum Peak Pulse Current I_PP (A)	Maximum Reverse Leakage I_R (μA) @V_RWM
Uni	Bi		MIN	MAX
5KP5.0A	5KP5.0CA	5.0	6.40	7.00	10	9.2	543.48	800
5KP6.0A	5KP6.0CA	6.0	6.67	7.37	10	10.3	485.44	800
5KP6.5A	5KP6.5CA	6.5	7.22	7.89	10	11.2	446.43	500
5KP7.0A	5KP7.0CA	7.0	7.78	8.60	10	12.0	416.67	200
5KP7.5A	5KP7.5CA	7.5	8.33	9.21	1	12.9	416.67	200
5KP8.0A	5KP8.0CA	8.0	8.89	9.83	1	13.6	367.65	50
5KP8.5A	5KP8.5ACA	8.5	9.44	10.40	1	14.4	347.22	20
5KP9.0A	5KP9.0CA	9.0	10.00	11.10	1	15.4	324.68	10
5KP10A	5KP10CA	10.0	11.10	12.30	1	17.0	294.12	5
5KP11A	5KP11CA	11.0	12.20	13.50	1	18.2	274.73	5

Features:

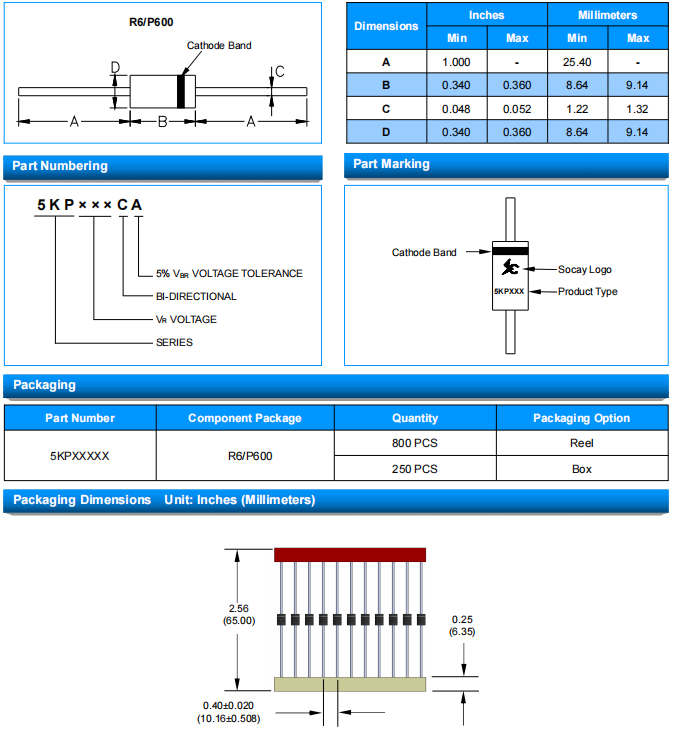

u Glass passivated chip junction in P600 Package

u Low leakage

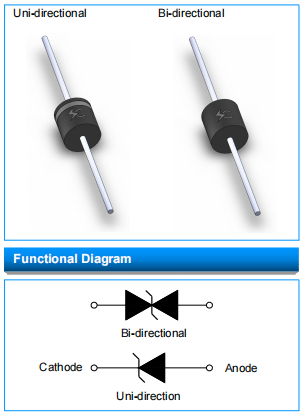

u Uni and Bidirectional unit

u Excellent clamping capability

u 5000W Peak power with 10 × 1000µs waveform Duty cycle: 0.01%

u Fast to respond and respond

u RoHS compliant
u Fast response time: typically less than 1.0ps from 0 Volts to VBR min

Applications:

TVS devices are an ideal choice for protecting I/O interfaces, VCC buses and other sensitive circuits in telecommunications, computer, industrial and consumer electronics applications.

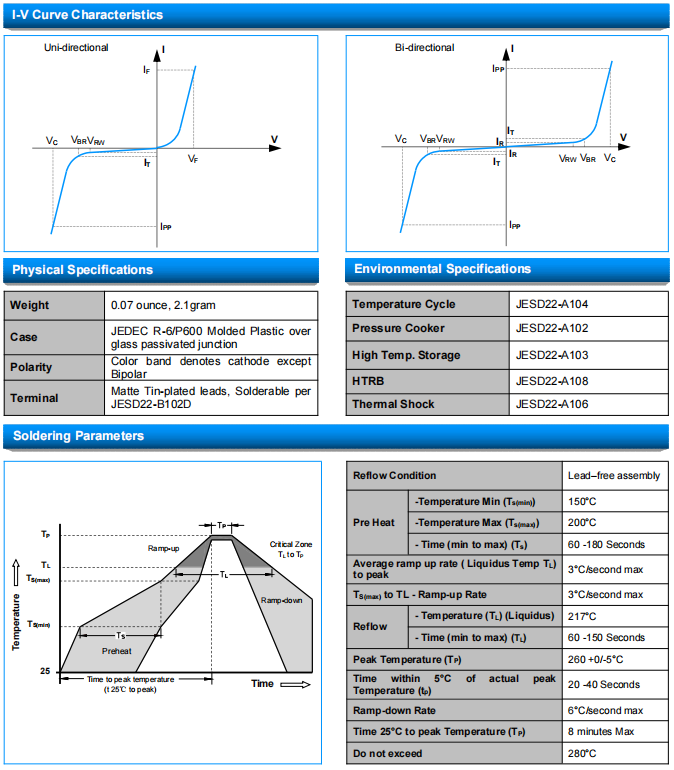

Parameter	Symbol	Value	Unit

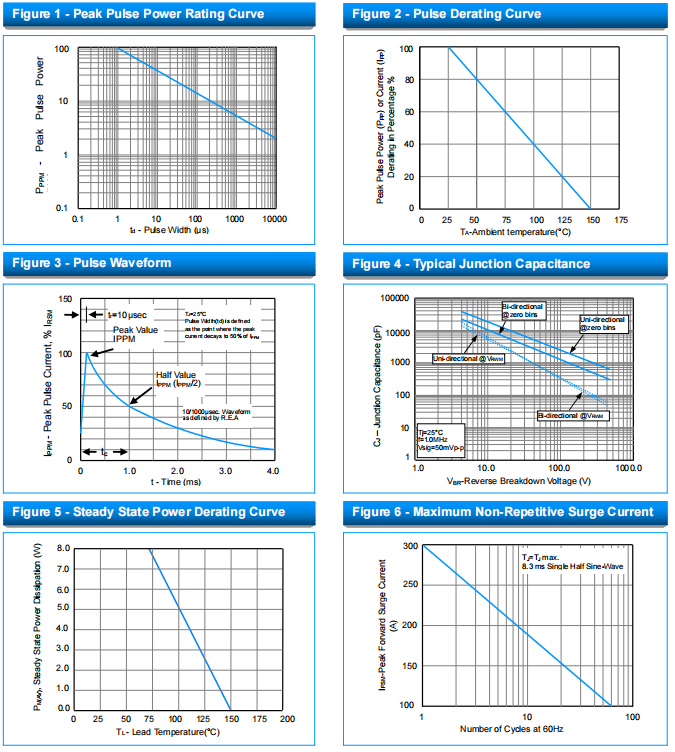

Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note 1), (Note 2)	P_PP_M	5000	Watts
Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3)	I_PP	See Next Table	Amps
Power Dissipation on Infinite Heat Sink at T_L=75°C	P_M(AV₎	8.0	Watt
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3)	I_FSM	500	Amps
Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only (Note 4)	T_F	3.5/5.0	Voltage
Operating junction and Storage Temperature Range.	T_J , T_STG	-55 to +150	°C

SOCAY 5000W High-power 5KP Series TVS Diode Axial Lead Transient Voltage Suppressor 5KP5.0A 5.0CA

SOCAY owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property.
SOCAY reserves the right to make changes without further notice to any products herein.
SOCAY makes no warranties, representations or warranties as to the fitness of its products for any particular purpose, and disclaims any liability.
The parameters provided in the SOCAY datasheet specification may vary from application to application, and the actual performance may vary over time. All operating parameters must be verified by the customer's technical expert before application.
Any and all responsibilities and liabilities are disclaimed if any item under this notice of warning is not complied with.
