Socay TVS Diodes SMF Series TVS 200W 51V Surface Mount Transient Voltage Suppressors

Product Categories
Shenzhen Socay Electronics Co., Ltd.
Contact Now

Socay TVS Diodes SMF Series TVS 200W 51V Surface Mount Transient Voltage Suppressors

Brand Name : Socay

Model Number : SMF51A

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 5000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Package Type : SOD-123

SMF51A Reverse Stand-OffVoltage VRWM : 51.0

SMF51A Breakdown Voltage VBR(V) @IT MIN : 56.70

SMF51A Breakdown Voltage VBR(V) @IT MAX : 62.70

SMF51A TestCurrentIT (mA) : 1

SMF51A Maximum ClampingVoltage VC@IPP (V) : 82.4

SMF51A MaximumPeak Pulse CurrentIPP (A) : 2.43

SMF51A Maximum Reverse Leakage IR @VRWM (μA) : 1

Contact Now

Socay TVS Diodes SMF Series TVS 200W 51V Surface Mount Transient Voltage Suppressors

SMF51A DATASHEET:SMF Series_v2211.1.pdf



SMF51A Description:
The SMF series of transient voltage suppressors is designed to protect sensitive electronic equipment from transient voltages caused by lightning and other transient voltage events that can damage electronic equipment and interfere with normal use of the equipment.

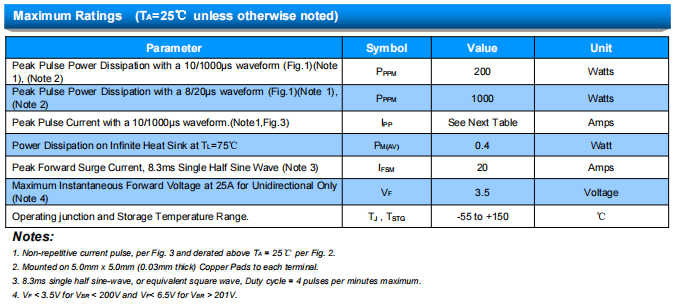

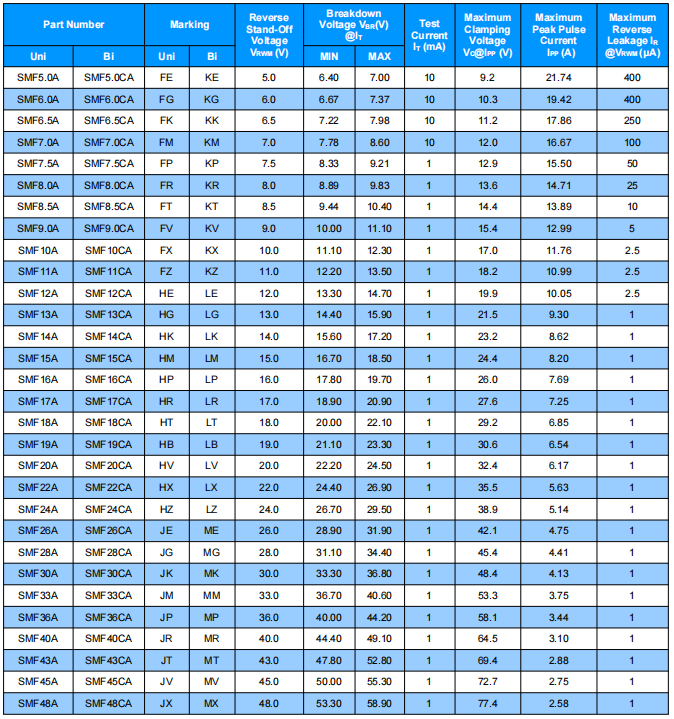

Part NumberMarking

Reverse
Stand-Off
Voltage VRWM (V)

Breakdown
Voltage VBR (V)
@IT

Test
Current
IT (mA)

Maximum
Clamping
Voltage VC @IPP (V)

Maximum
Peak
Pulse
Current IPP (A)

Maximum
Reverse
Leakage IR
@VRWM (μA)

UniBiUniBiMINMAX
SMF5.0ASMF5.0CAFEKE5.06.407.00109.221.74400
SMF6.0ASMF6.0CAFGKG6.06.677.371010.319.42

400

SMF6.5ASMF6.5CAFKKK6.57.227.981011.217.86200
SMF7.0ASMF7.0CAFMKM7.07.788.601012.016.67100
SMF7.5ASMF7.5CAFPKP7.58.339.21112.915.5050
SMF8.0ASMF8.0CAFRKR8.08.899.83113.614.7125
SMF8.5ASMF8.5CAFTKT8.59.4410.40114.413.8910
SMF9.0ASMF9.0CAFVKV9.010.0011.10115.412.995
SMF10ASMF10CAFXKX10.011.1012.30117.011.762.5
SMF11ASMF11CAFZKZ11.012.2013.50118.210.992.5
SMF12ASMF12CAHELE12.013.3014.70119.910.052.5
SMF13ASMF13CAHGLG13.014.4015.90121.59.301
SMF14ASMF14CAHKLK14.015.6017.20123.28.621
SMF15ASMF15CAHMLM15.016.7018.50124.48.201
SMF16ASMF16CAHPLP16.017.8019.70126.07.691
SMF17ASMF17CAHRLR17.018.9020.90127.67.251
SMF18ASMF18CAHTLT18.020.0022.10129.26.851
SMF19ASMF19CAHBLB19.021.1023.30130.66.541
SMF20ASMF20CAHVLV20.022.2024.50132.46.171
SMF22ASMF22CAHXLX22.024.026.90135.55.631
SMF24ASMF24CAHZLZ24.026.7029.50138.95.141
SMF26ASMF26CAJEME26.028.9031.90142.14.751
SMF28ASMF28CAJGMG28.031.1034.40145.44.411
SMF30ASMF30CAJKMK30.033.3036.80148.44.131
SMF33ASMF33CAJMMM33.036.7040.60153.33.751
SMF36ASMF36CAJPMP36.040.0044.20158.13.441
SMF40ASMF40CAJRMR40.044.4049.10164.53.101
SMF43ASMF43CAJTMT43.047.8052.80169.42.881
SMF45ASMF45CAJVMV45.050.0055.30172.72.751
SMF48ASMF48CAJXMX48.053.3058.90177.42.581
SMF51ASMF51CAJZMZ51.056.7062.70182.42.431
SMF54ASMF54CAXENE54.060.0066.30187.42.301
SMF58ASMF58CAXGNG58.064.4071.20193.62.141



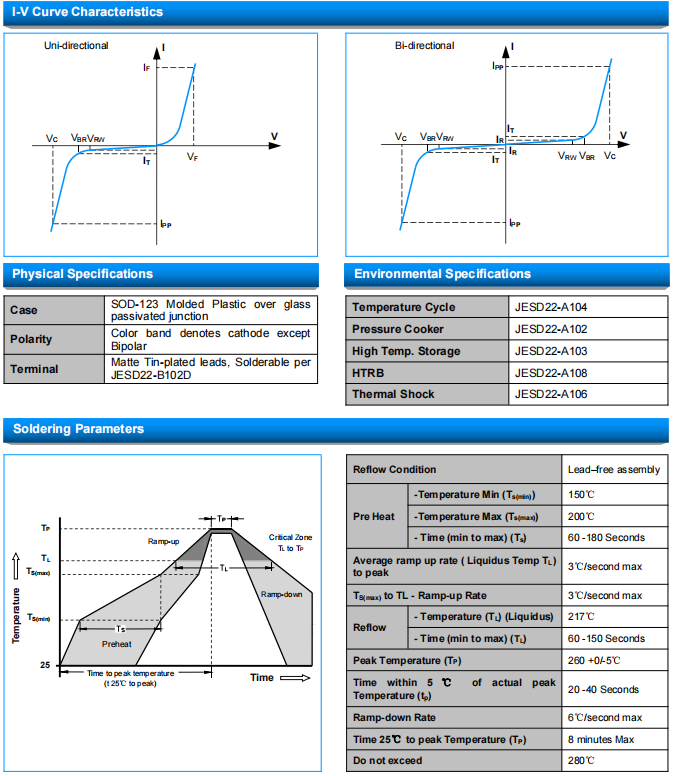

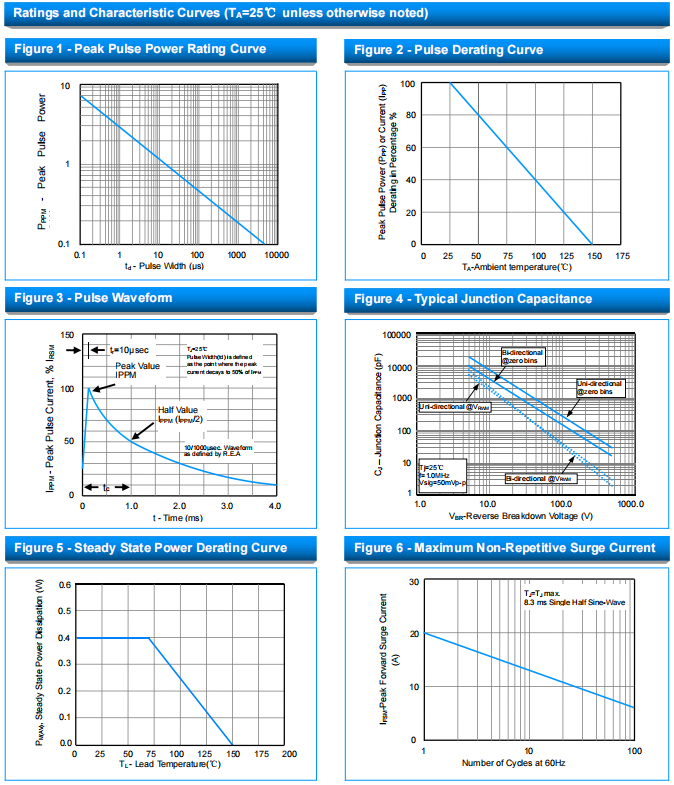

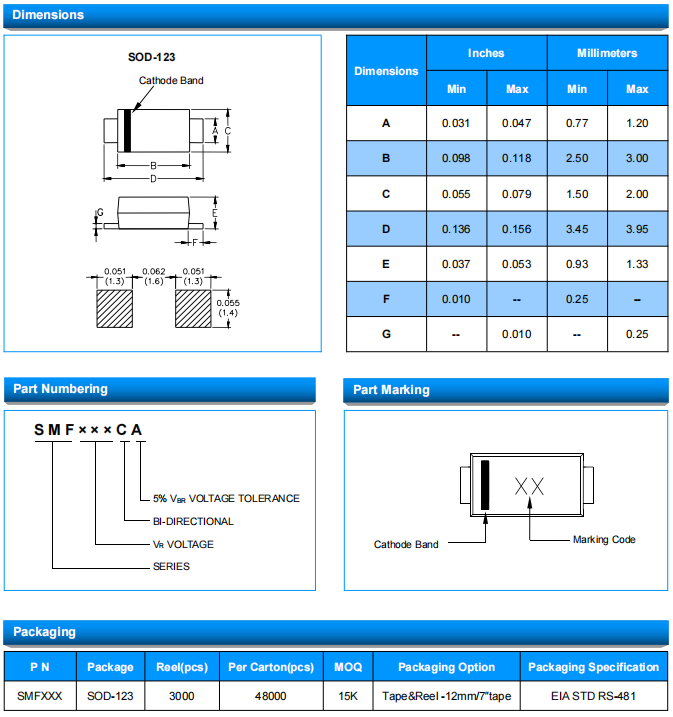

SMF51A Features:

  • Low leakage
  • Uni-directionaal and Bi-directional unit
  • Passivated junction glass
  • Low inductance
  • Excellent ability to clamp and unclamp
  • Matt Tin Lead Free
  • Halogen free and RoHS compliant
  • Compatible with industrial standard package SOD-123
  • For optimising board space in surface mount applications
  • High Temperature soldering: 260℃/40 seconds at terminals
  • Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25℃×ΔT
  • Plastic package has Underwriters Laboratory Flammability 94V-0
  • Typical failure mode is short due to over voltage or over current.
  • 200W Peak power capability at 10 × 1000μs waveform Repetition rate (duty cycle):0.01%
  • Fast response time: typically less than 1.0ps from 0 Volts to VBR min
  • Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
  • IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
  • ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
  • EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)


SMF51A Applications:
TVS devices are ideally suited to telecommunications, consumer electronics, computer and industrial applications for the protection of I/O interfaces, VCC buses and other sensitive circuits.
