Socay TVS Diodes 200W Bi-Directional SMF Series Surface Mount Transient Voltage Suppressors

Brand Name : Socay

Model Number : SMF22CA

Certification : UL,REACH,RoHS,ISO

Place of Origin : Shenzhen, Guangdong, China

MOQ : 5000PCS

Price : Negotiable

Delivery Time : 5-8 work days

Package Type : SOD-123

SMF22CA Reverse Stand-OffVoltage VRWM : 22.0

SMF22CA Breakdown Voltage VBR(V) @IT MIN : 24.40

SMF22CA Breakdown Voltage VBR(V) @IT MAX : 26.900

SMF22CA TestCurrentIT (mA) : 1

SMF22CA Maximum ClampingVoltage VC@IPP (V) : 35.5

SMF22CA MaximumPeak Pulse CurrentIPP (A) : 5.63

SMF22CA Maximum Reverse Leakage IR @VRWM (μA) : 1

Contact Now

Socay TVS Diodes 200W Bi-directional SMF Series Surface Mount Transient Voltage Suppressors

DATASHEET:SMF Series_v2211.1.pdf

Description:

The SMF series of transient voltage suppressors are designed to protect sensitive electronic equipment from transient voltages caused by lightning and other transient voltage events that can damage electronic equipment and interfere with normal equipment use.

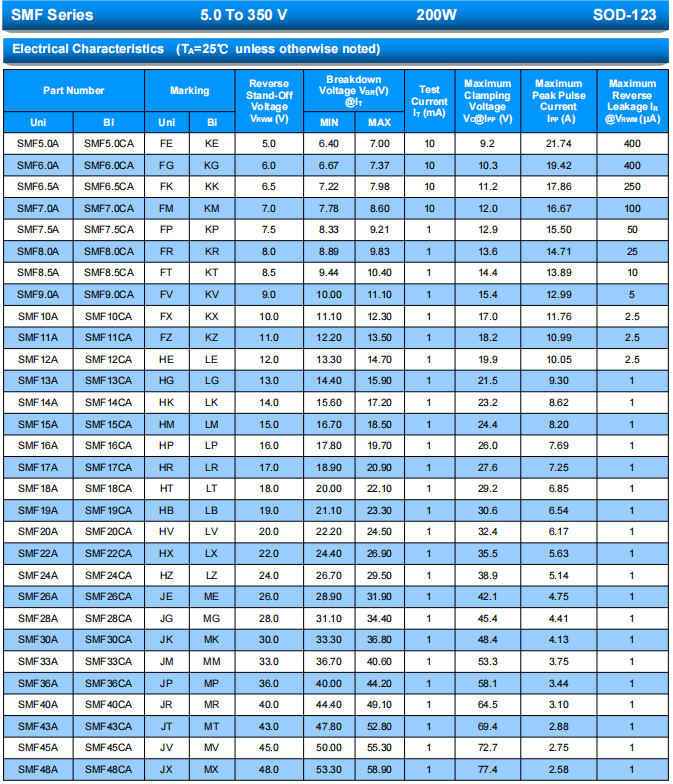

Part Number Marking

Reverse

Stand-Off

Voltage VRWM (V)

Breakdown

Voltage VBR (V)

@IT

Test

Current

IT (mA)

Maximum

Clamping

Voltage VC @IPP (V)

Maximum

Peak

Pulse

Current IPP (A)

Maximum

Reverse

Leakage IR

@VRWM (μA)
Uni Bi Uni Bi MIN MAX
SMF5.0A SMF5.0CA FE KE 5.0 6.40 7.00 10 9.2 21.74 400
SMF6.0A SMF6.0CA FG KG 6.0 6.67 7.37 10 10.3 19.42

400
SMF6.5A SMF6.5CA FK KK 6.5 7.22 7.98 10 11.2 17.86 200
SMF7.0A SMF7.0CA FM KM 7.0 7.78 8.60 10 12.0 16.67 100
SMF7.5A SMF7.5CA FP KP 7.5 8.33 9.21 1 12.9 15.50 50
SMF8.0A SMF8.0CA FR KR 8.0 8.89 9.83 1 13.6 14.71 25
SMF8.5A SMF8.5CA FT KT 8.5 9.44 10.40 1 14.4 13.89 10
SMF9.0A SMF9.0CA FV KV 9.0 10.00 11.10 1 15.4 12.99 5
SMF10A SMF10CA FX KX 10.0 11.10 12.30 1 17.0 11.76 2.5
SMF11A SMF11CA FZ KZ 11.0 12.20 13.50 1 18.2 10.99 2.5
SMF12A SMF12CA HE LE 12.0 13.30 14.70 1 19.9 10.05 2.5
SMF13A SMF13CA HG LG 13.0 14.40 15.90 1 21.5 9.30 1
SMF14A SMF14CA HK LK 14.0 15.60 17.20 1 23.2 8.62 1
SMF15A SMF15CA HM LM 15.0 16.70 18.50 1 24.4 8.20 1
SMF16A SMF16CA HP LP 16.0 17.80 19.70 1 26.0 7.69 1
SMF17A SMF17CA HR LR 17.0 18.90 20.90 1 27.6 7.25 1
SMF18A SMF18CA HT LT 18.0 20.00 22.10 1 29.2 6.85 1
SMF19A SMF19CA HB LB 19.0 21.10 23.30 1 30.6 6.54 1
SMF20A SMF20CA HV LV 20.0 22.20 24.50 1 32.4 6.17 1
SMF22A SMF22CA HX LX 22.0 24.0 26.90 1 35.5 5.63 1
SMF24A SMF24CA HZ LZ 24.0 26.70 29.50 1 38.9 5.14 1
SMF26A SMF26CA JE ME 26.0 28.90 31.90 1 42.1 4.75 1

Features:

  • Compatible with industrial standard package SOD-123
  • For surface mounted applications in order to optimize board space
  • Low leakage
  • Uni and Bidirectional unit
  • Glass passivated junction
  • Low inductance
  • Excellent clamping capability

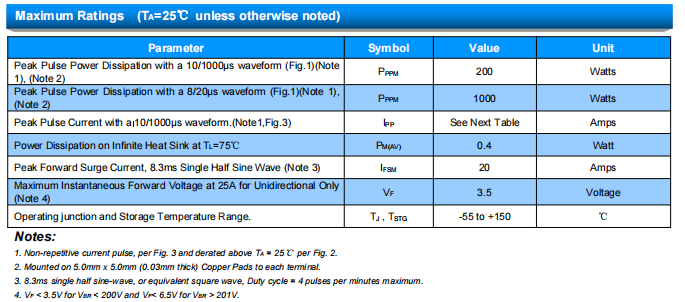

  • 200W Peak power capability at 10 × 1000μs waveform Repetition rate (duty cycle):0.01%
  • Fast response time: typically less than 1.0ps from 0 Volts to VBR min

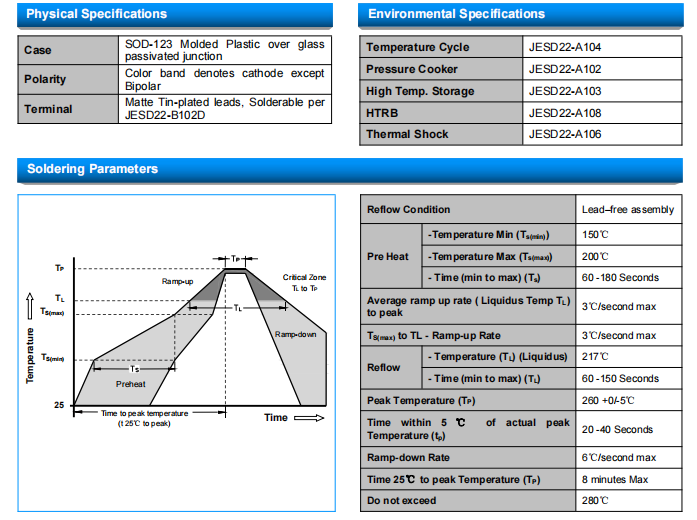

  • High Temperature soldering: 260℃/40 seconds at terminals
  • Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25℃×ΔT
  • Plastic package has Underwriters Laboratory Flammability 94V-0
  • Matte tin lead–free Plated
  • Halogen free and RoHS compliant
  • Typical failure mode is short from over-specified voltage or current
  • Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
  • IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
  • ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
  • EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

Applications:

TVS devices are ideal for protecting I/O interfaces, VCC buses, and other vulnerable circuits used in telecommunications, consumer electronics, computers, and industrial applications.
